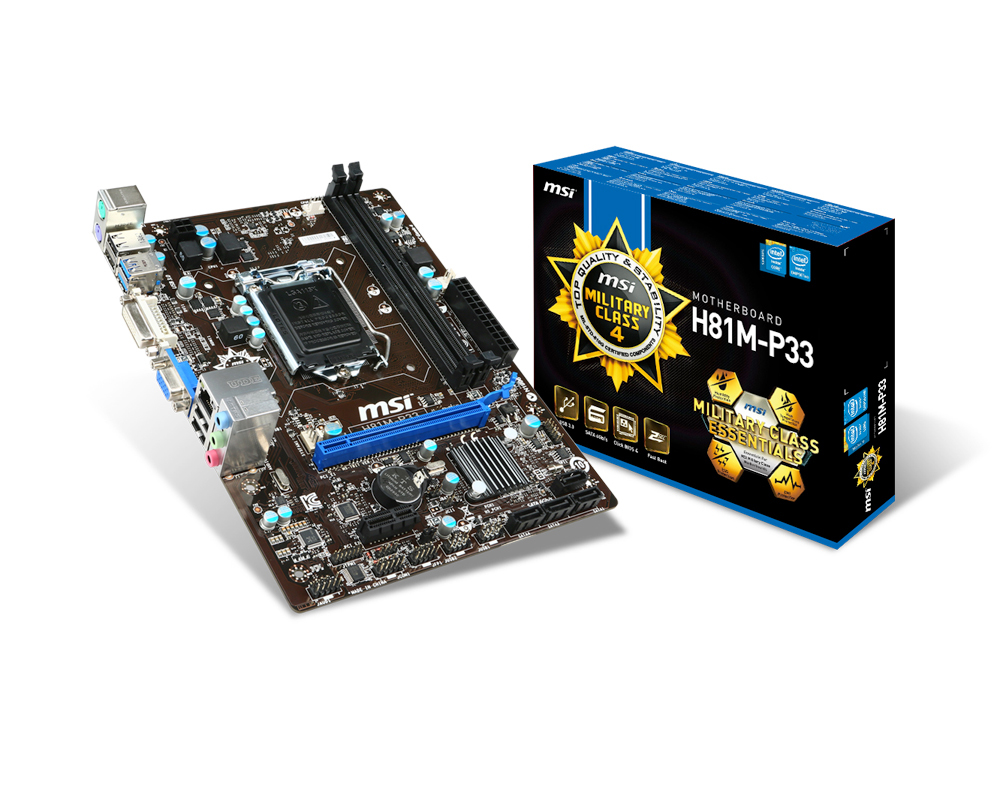

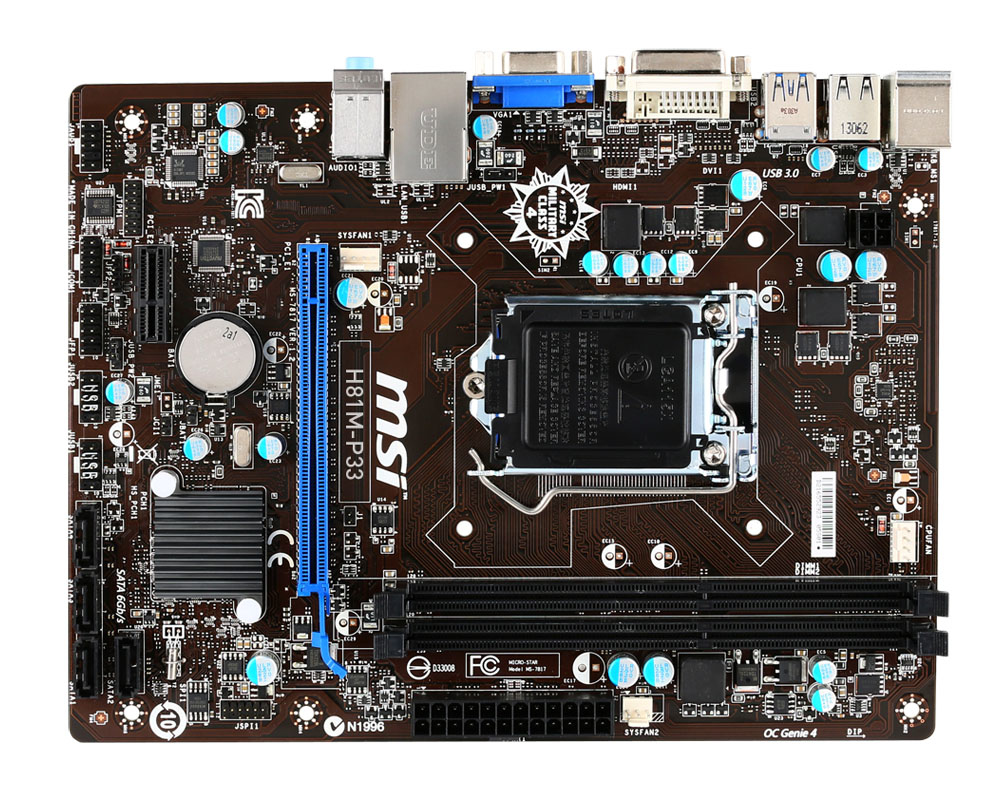

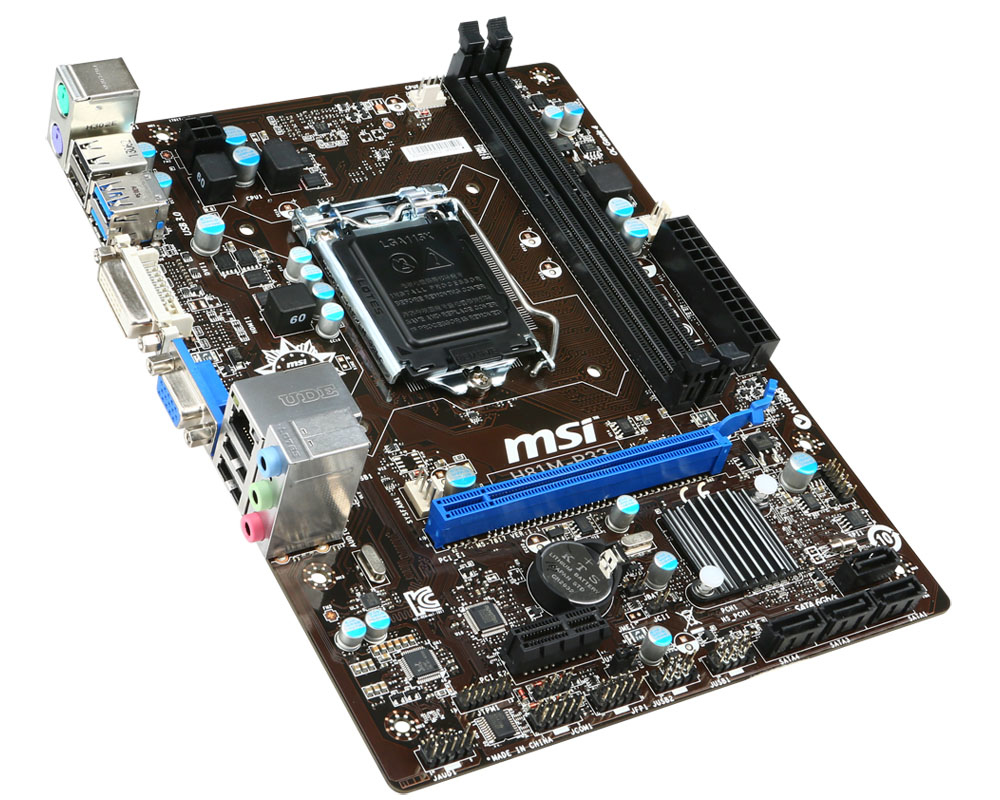

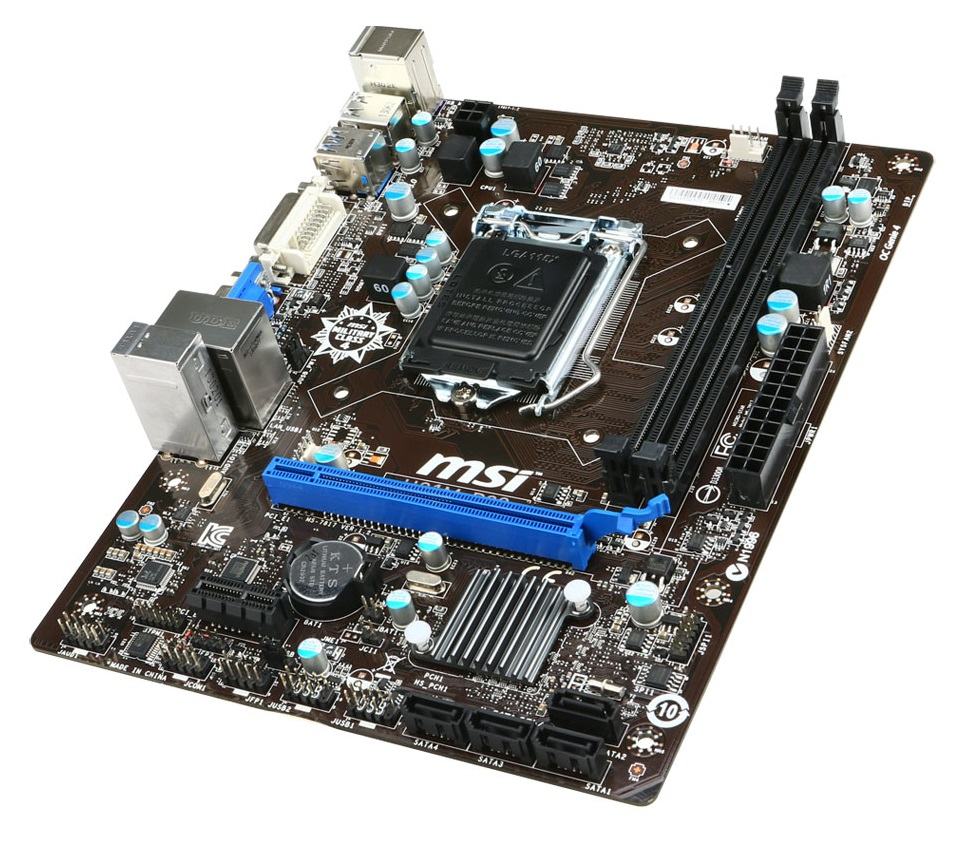

MSI H81M-P33 Intel® H81 LGA 1150 (Socket H3) micro ATX
Model H81M-P33Part no. 911-7817-019EAN 5054531165290
44 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- MSI
- Category
- Motherboard
- Model
- H81M-P33
- Part numbers
- 911-7817-019, 7817-019R
- EAN / UPC
- 5054531165290, 140139984540, 375495940521, 803982957887 +14 more
- Also known as
- MSI H81M-P33 Intel® H81 LGA 1150 (Socket H3) micro ATX
Specifications
44 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| TPM connector | Yes |

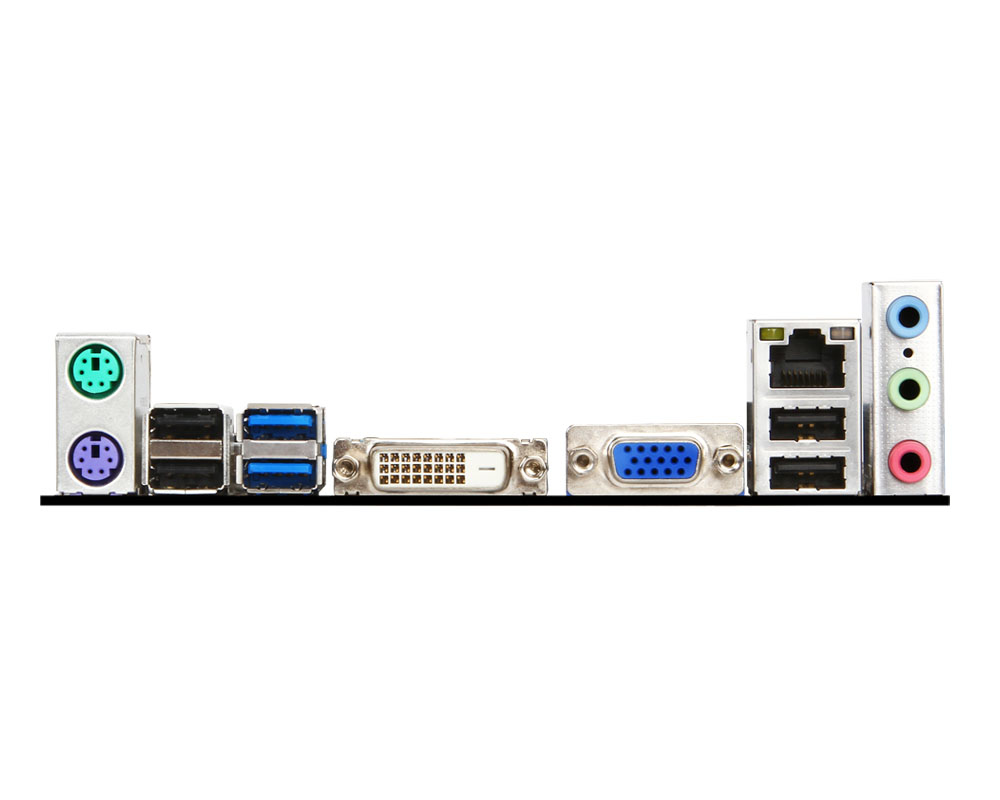

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111G |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H81 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 2.x) slots | 1 |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 173 mm |
Other features
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 1.x) slots | 1 |
| Number of DIMM slots | 2 |
| PCI Express slots quantity | 2 |
What people say
Reviews & ratings
MSI H81M-P33 Intel® H81 LGA 1150 (Socket H3) micro ATX
No reviews yet
Be the first to tell others how MSI H81M-P33 Intel® H81 LGA 1150 (Socket H3) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI H81M-P33 Intel® H81 LGA 1150 (Socket H3) micro ATX
All motherboard comparisons- MSI H81M-P33 Intel® H81 LGA 1150 (Socket H3) micro ATX vsMSI H81M-P33 V2Compare specs
- MSI H81M-P33 Intel® H81 LGA 1150 (Socket H3) micro ATX vsMSI H81M-E33 V2Compare specs
- MSI H81M-P33 Intel® H81 LGA 1150 (Socket H3) micro ATX vsMSI H87-G43 GAMINGCompare specs

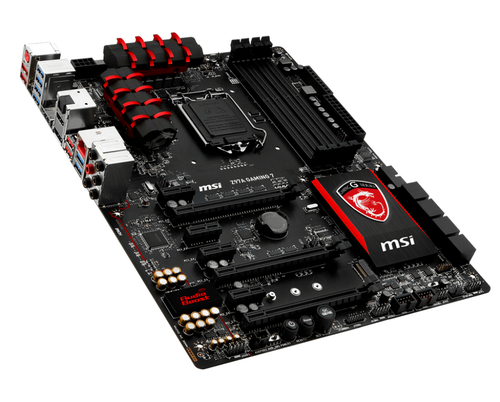

- MSI H81M-P33 Intel® H81 LGA 1150 (Socket H3) micro ATX vsMSI Z97A GAMING 7Compare specs
