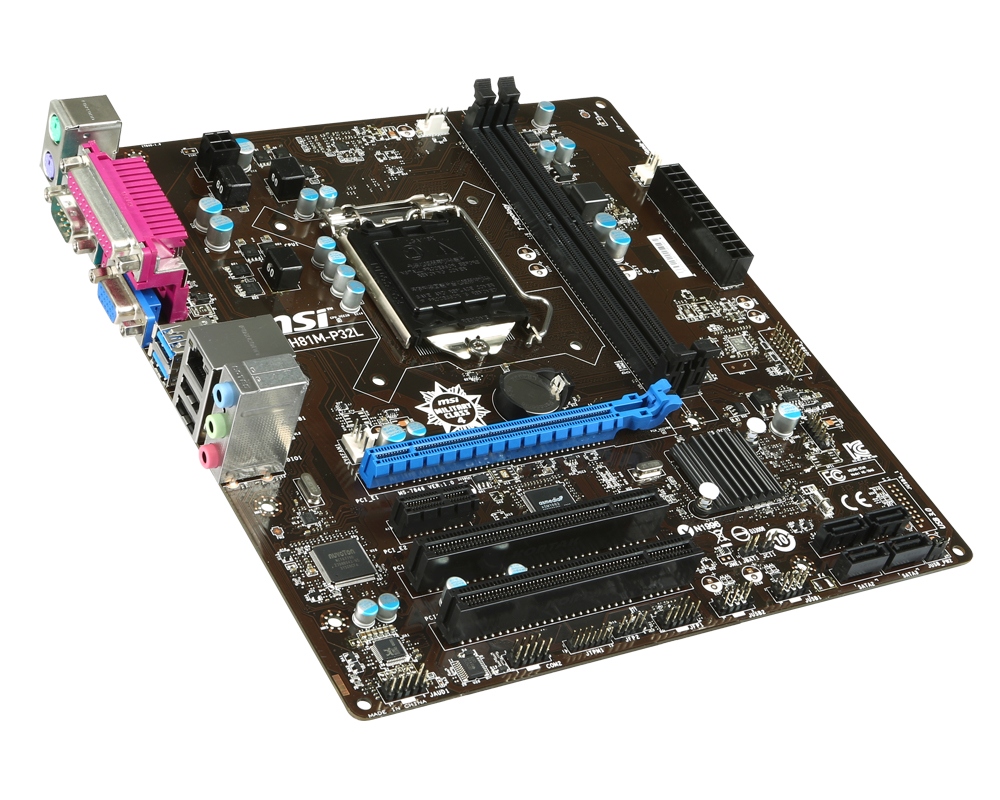

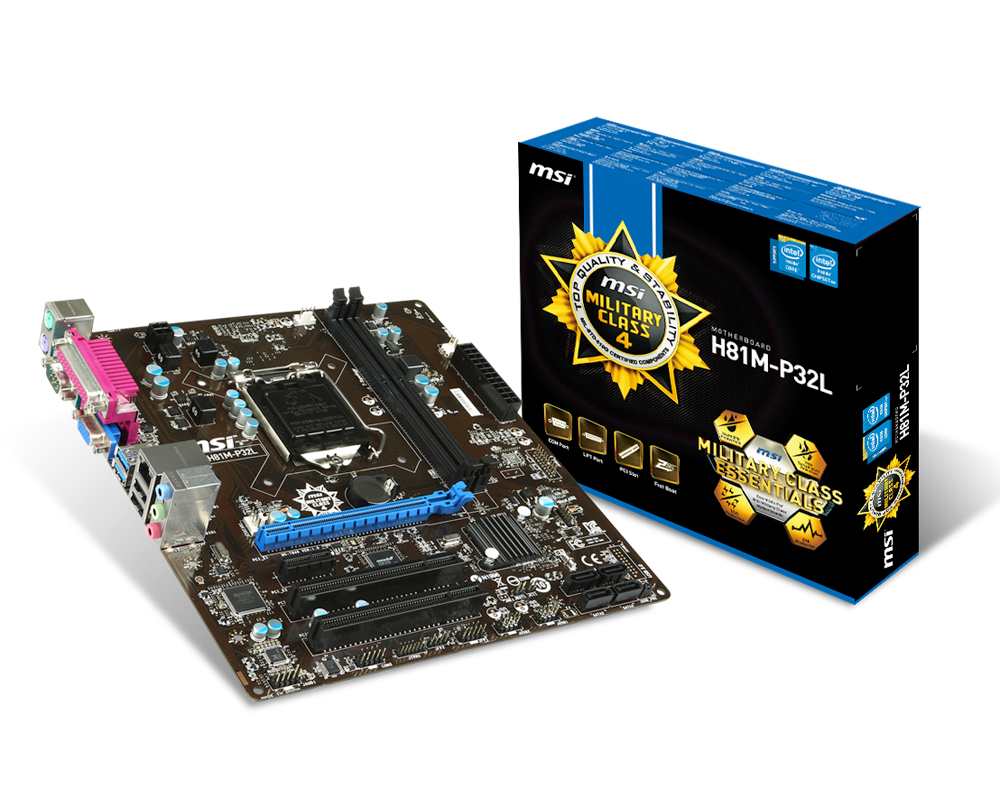

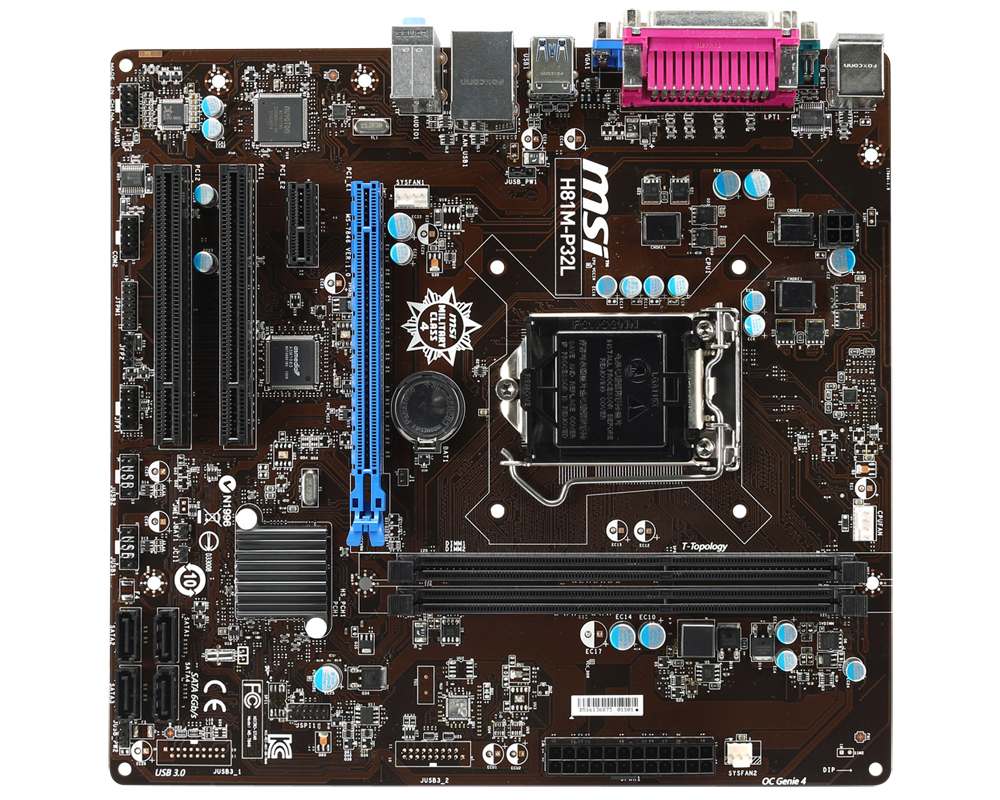

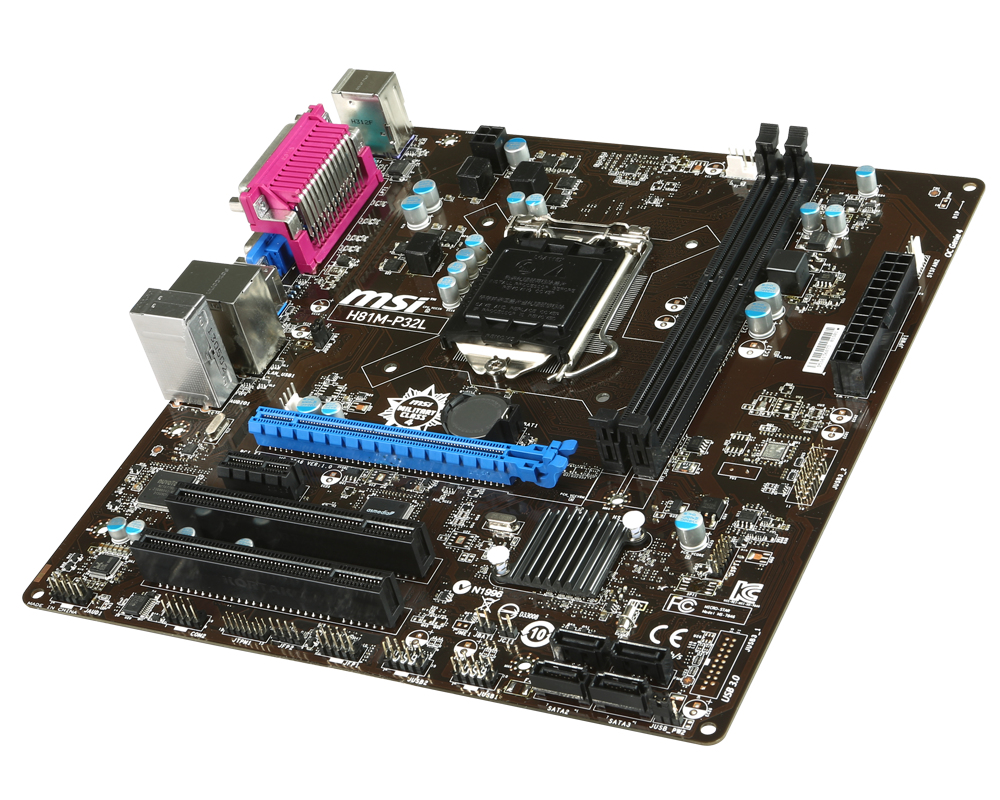

MSI H81M-P32L Intel® H81 LGA 1150 (Socket H3) micro ATX

MSI H81M-P32L Intel® H81 LGA 1150 (Socket H3) micro ATX

Model H81M-P32LPart no. H81M-P32L-RFBEAN 5706998677358

55 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum graphics card memory1760 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Maximum graphics card memory
1760 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
H81M-P32L
Part numbers
H81M-P32L-RFB, 7846-006R, H81M-P32L
EAN / UPC
5706998677358, 824142018910, 4053162789906, 4719072323905
Also known as
MSI H81M-P32L Intel® H81 LGA 1150 (Socket H3) micro ATX

Specifications

55 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron® G, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

Maximum graphics card memory1760 MB
Parallel processing technology supportNot supported
DirectX version11

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors2
Number of SATA II connectors2
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Serial port headers1
TPM connectorYes

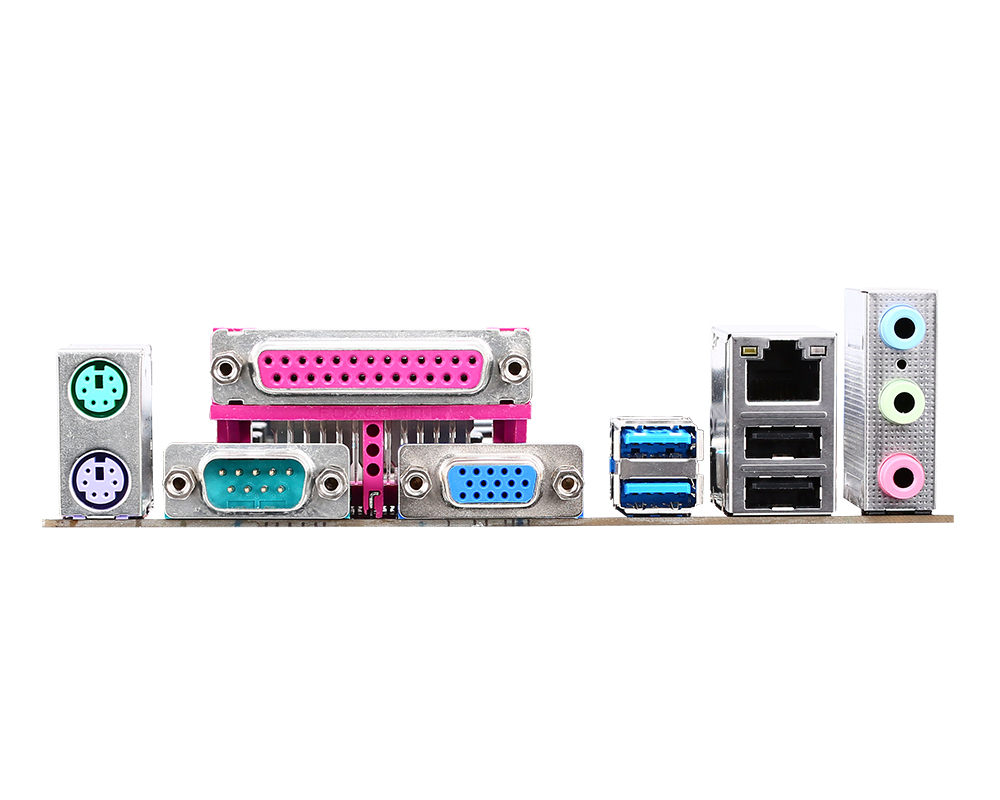

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H81
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 2.x) slots1
PCI slots2

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width243 mm
Depth228 mm
