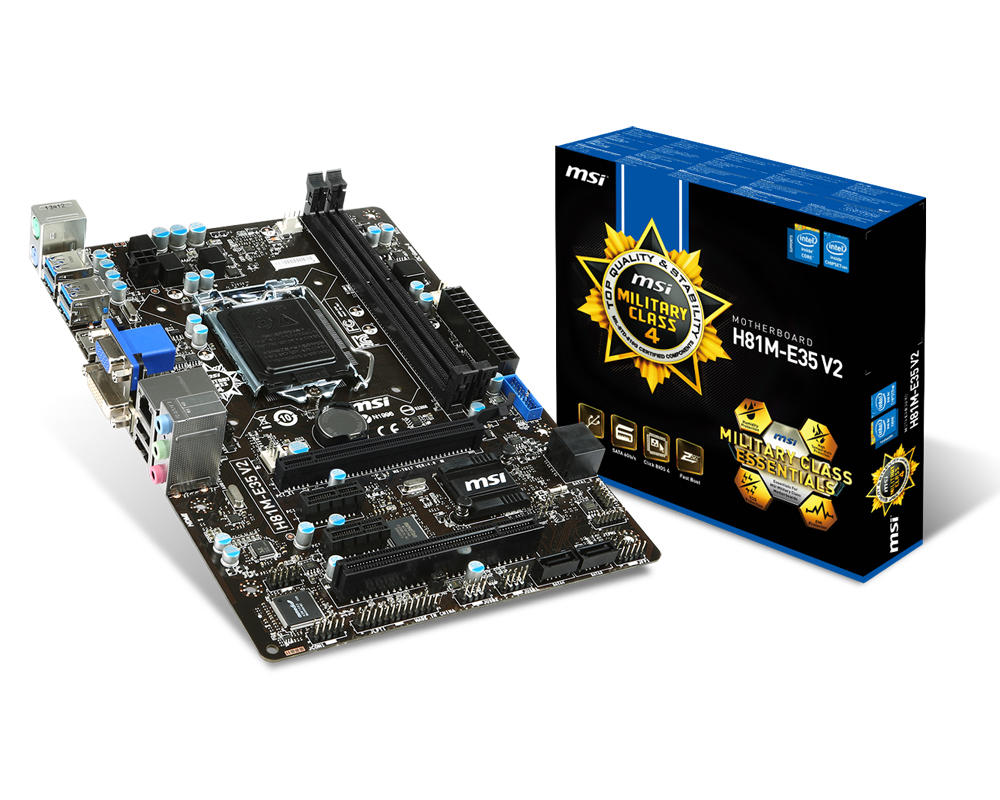

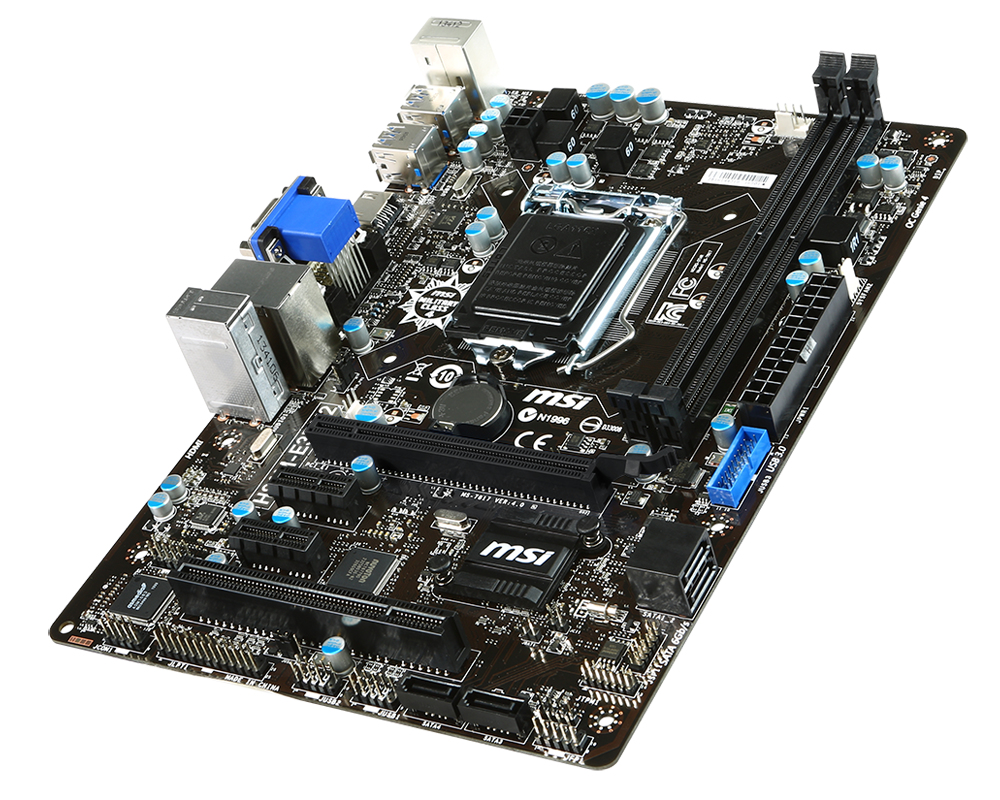

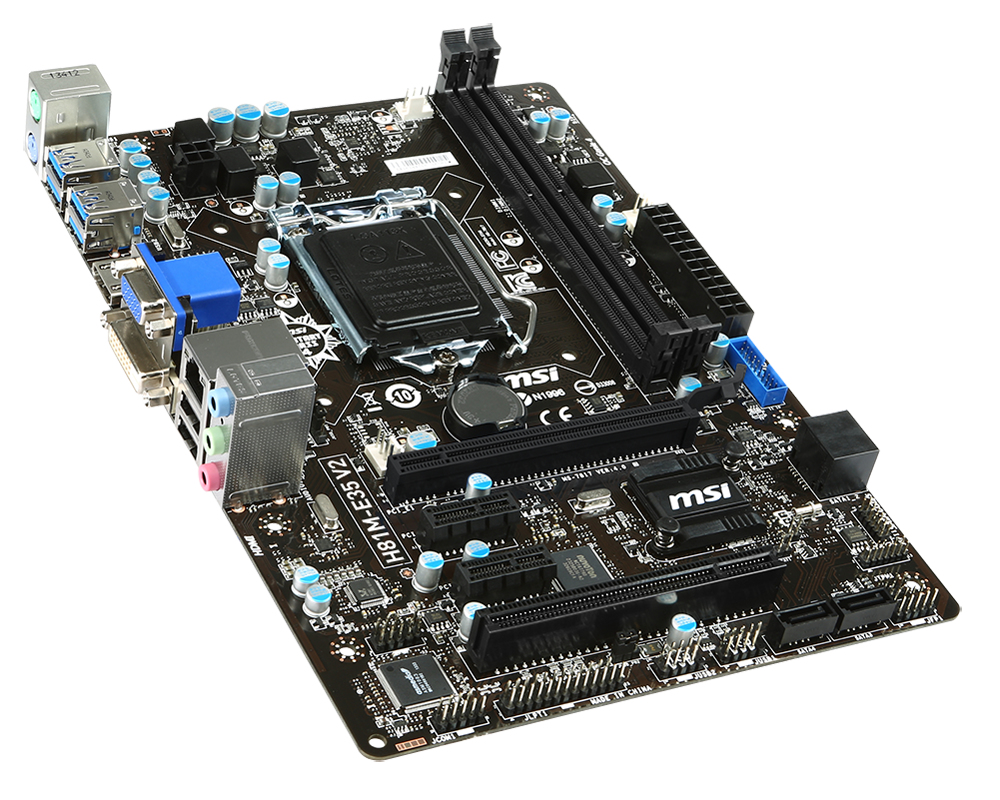

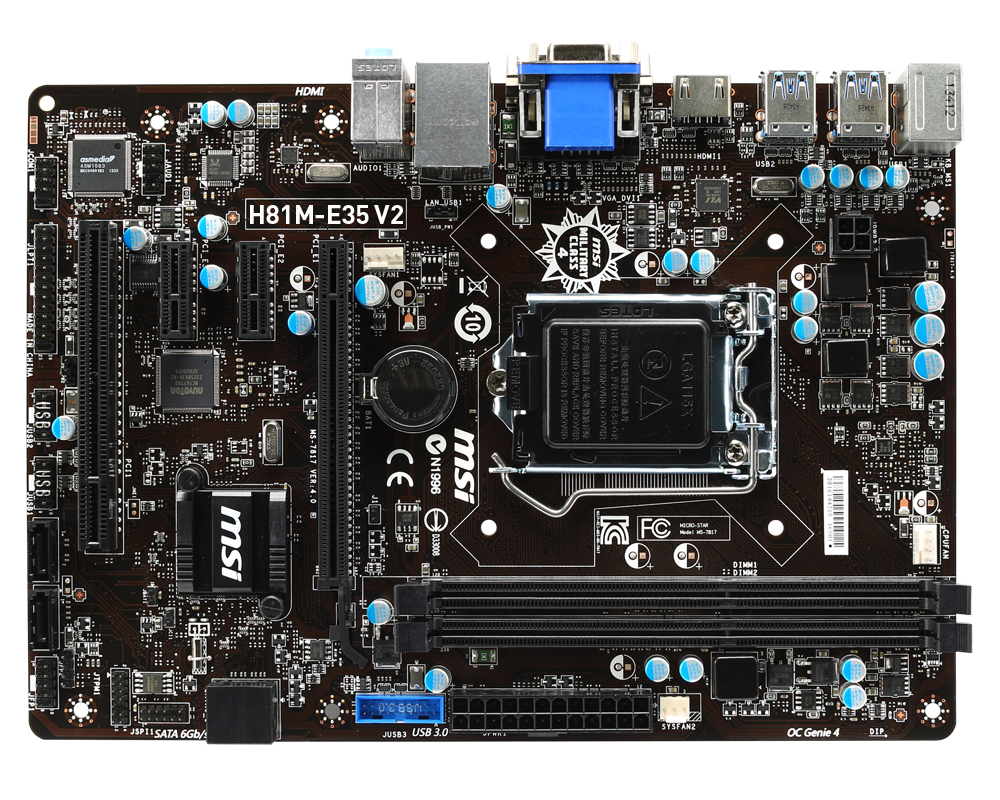

MSI H81M-E35 V2

MSI H81M-E35 V2

Model H81M-E35 V2Part no. 7817-060REAN 4053162667709

56 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum graphics card memory1760 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Maximum graphics card memory
1760 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
H81M-E35 V2
Part number
7817-060R
EAN / UPC
4053162667709, 803982958464, 824142019849, 4719072326012 +1 more
Also known as
MSI H81M-E35 V2 Intel® H81 LGA 1150 (Socket H3) micro ATX

Specifications

56 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

Maximum graphics card memory1760 MB
Maximum resolution2560 x 1600 pixels
DirectX version11

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors2
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Parallel connectorYes
Serial port headers1
TPM connectorYes

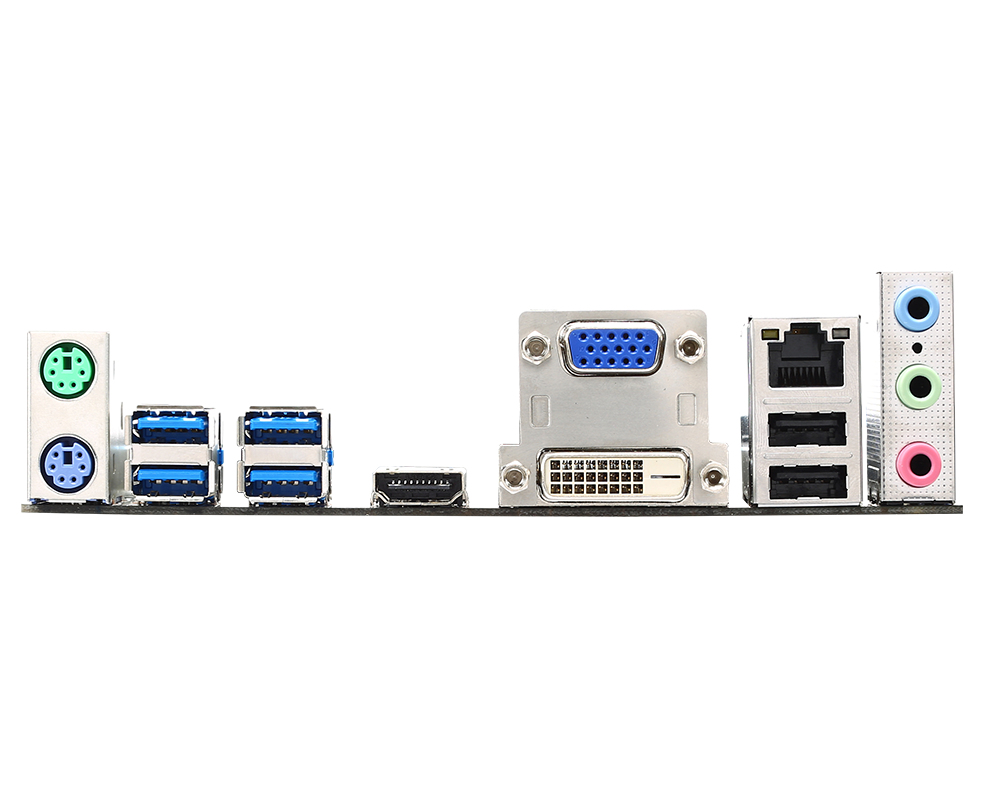

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H81
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 2.x) slots1
PCI slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width243.8 mm
Depth173 mm
