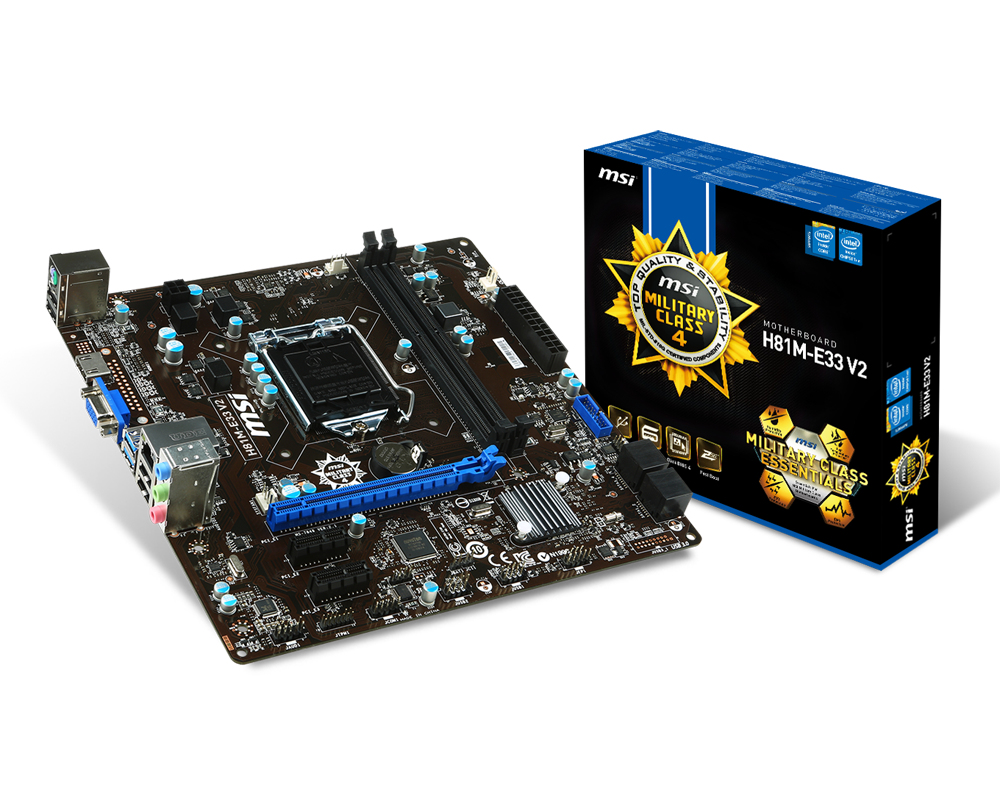

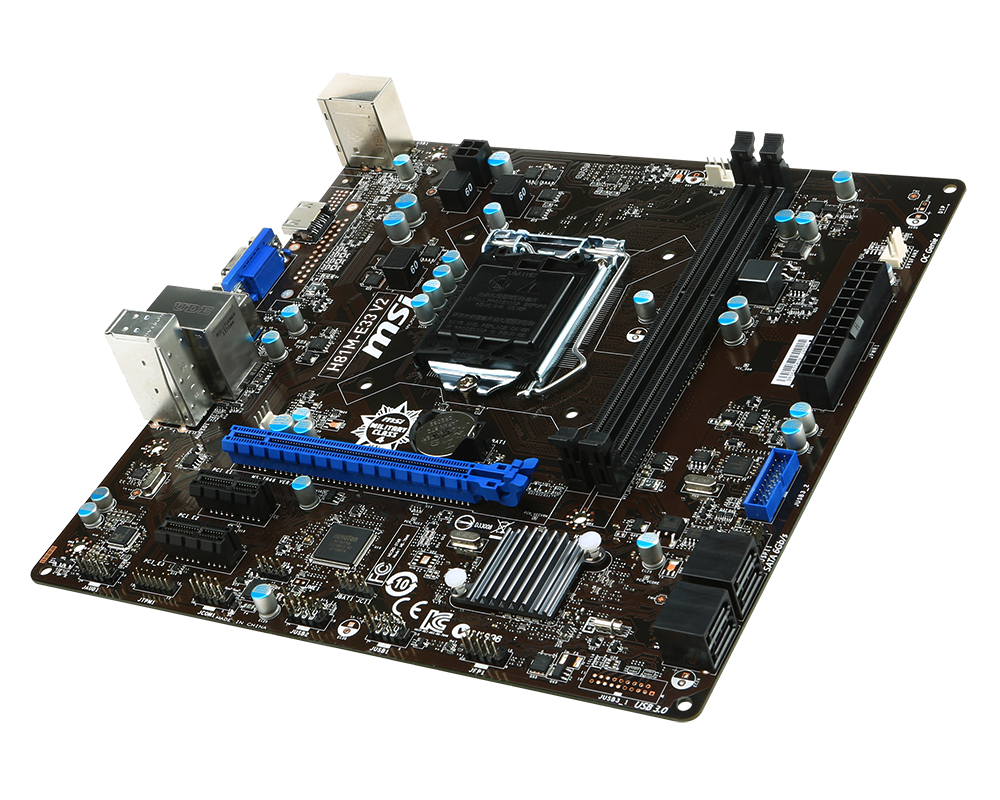

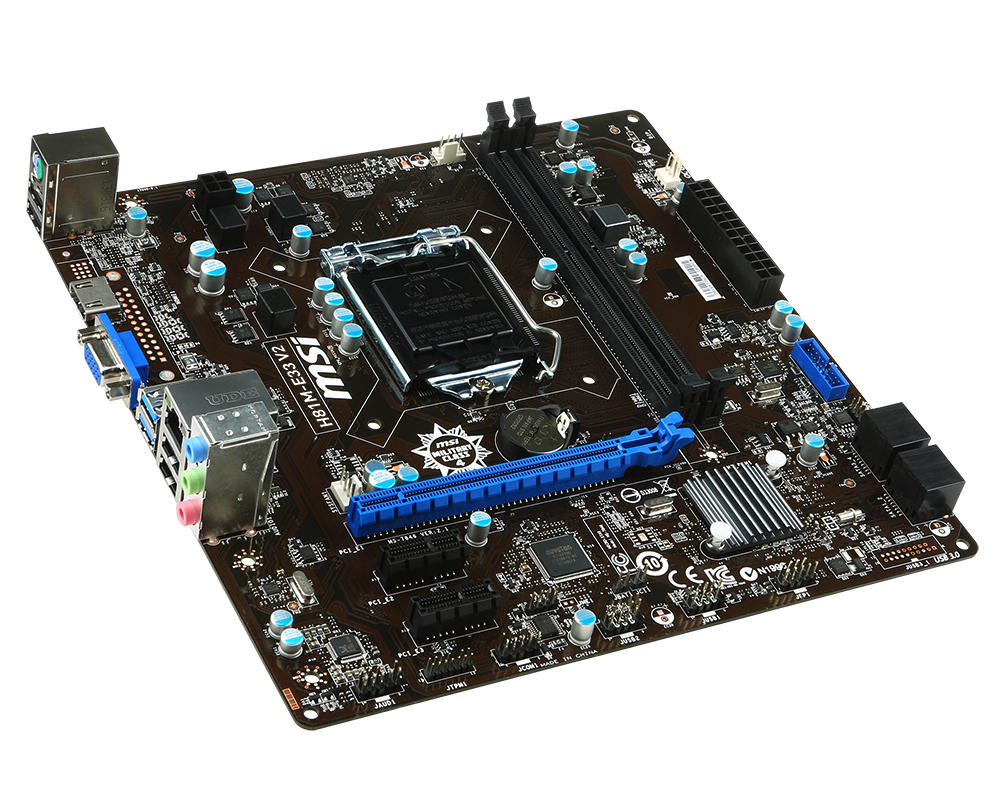

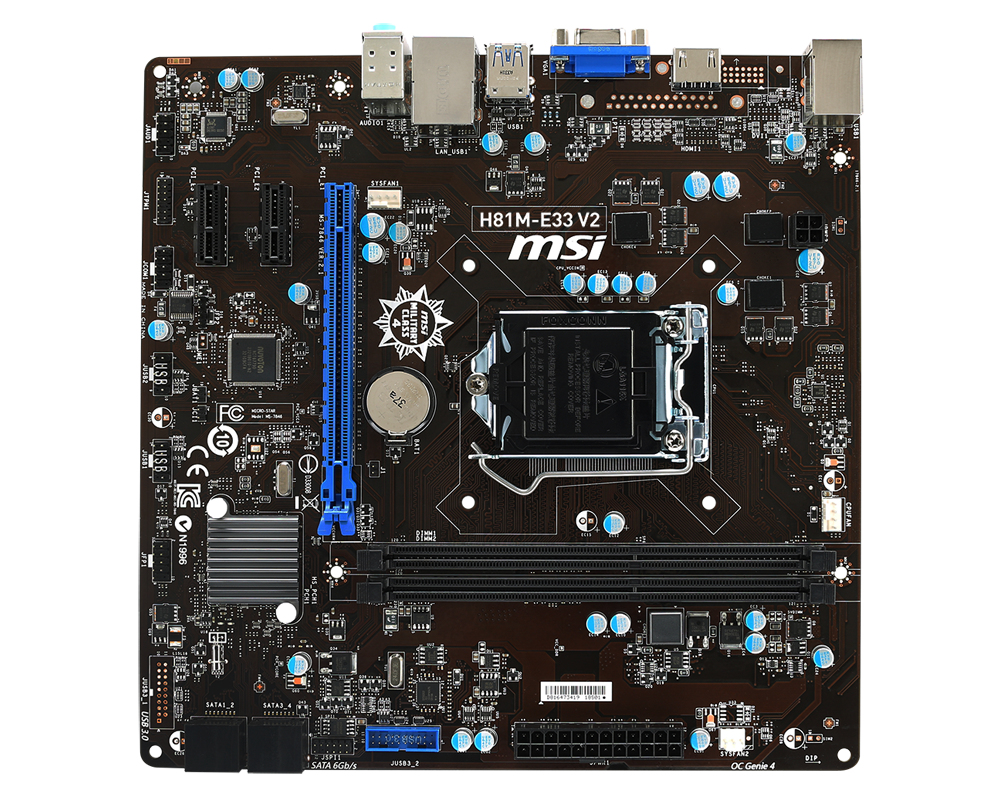

MSI H81M-E33 V2

MSI H81M-E33 V2

Model H81M-E33 V2Part no. 7846-040REAN 4719072312053

50 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
H81M-E33 V2
Part number
7846-040R
EAN / UPC
4719072312053
Also known as
MSI H81M-E33 V2 Intel® H81 LGA 1150 (Socket H3) micro ATX

Specifications

50 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors2
Number of SATA connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
TPM connectorYes

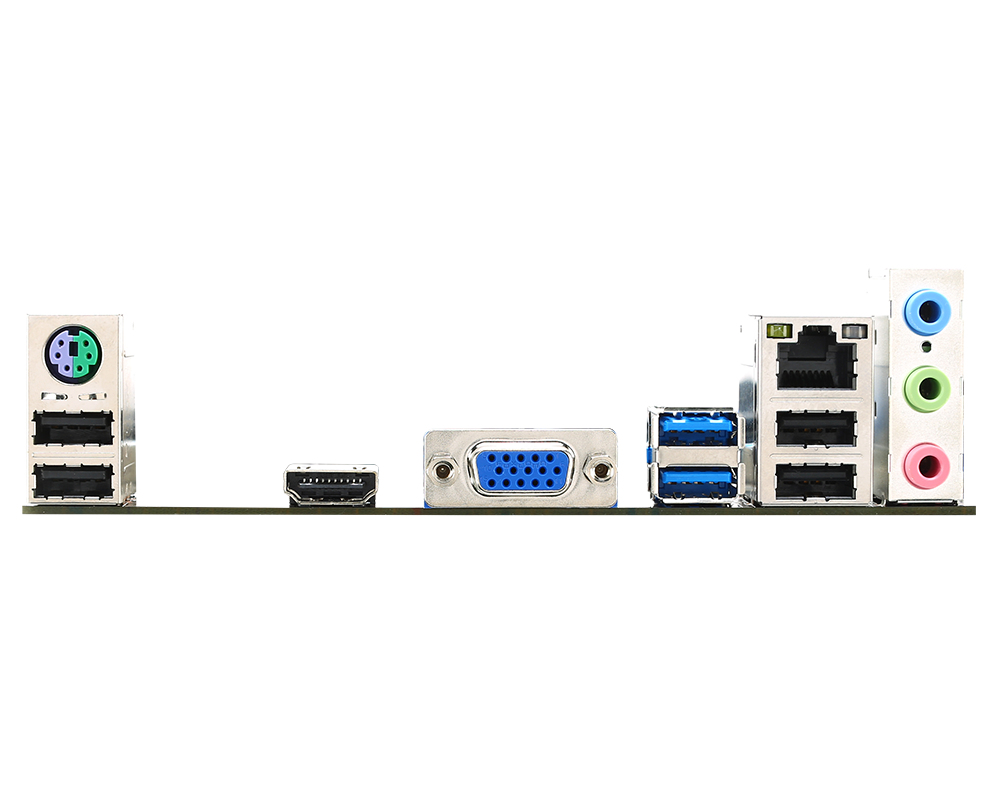

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H81
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x16 (Gen 2.x) slots1

BIOS

Clear CMOS jumperYes

Processor special features

Trusted Platform Module (TPM)Yes

Weight & dimensions

Width226 mm
Depth228 mm

Other features

PCI Express x1 (Gen 1.x) slots2
Number of DIMM slots2
PCI Express slots quantity3
