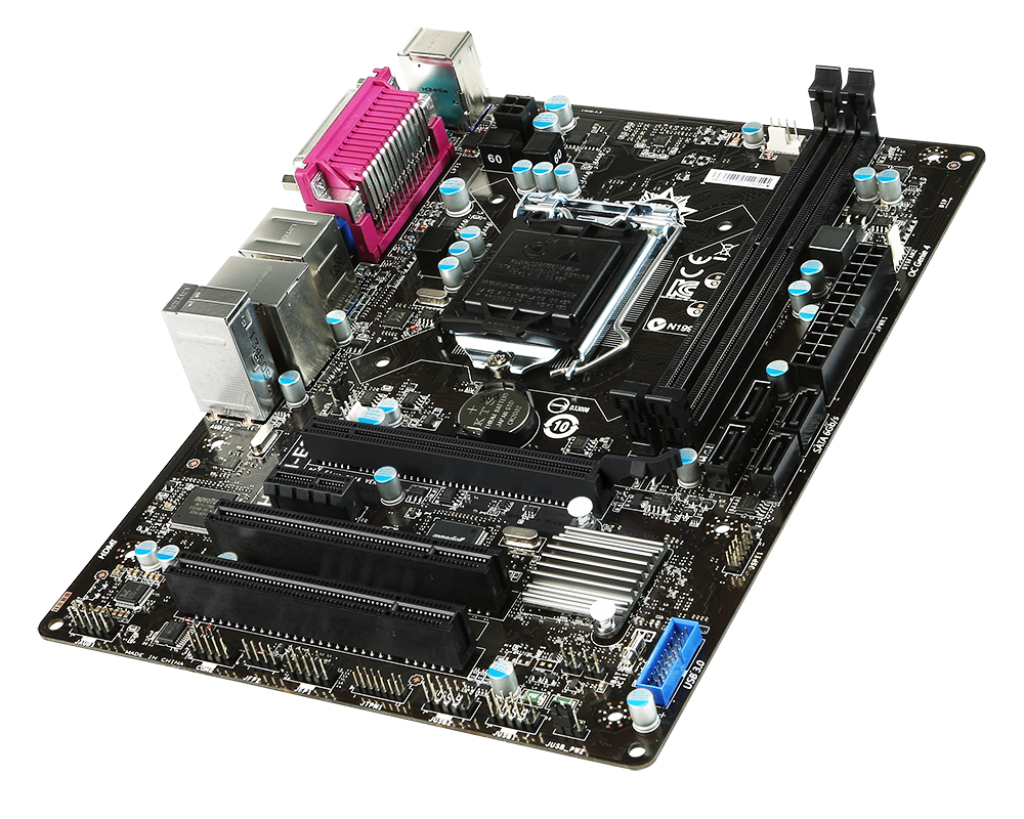

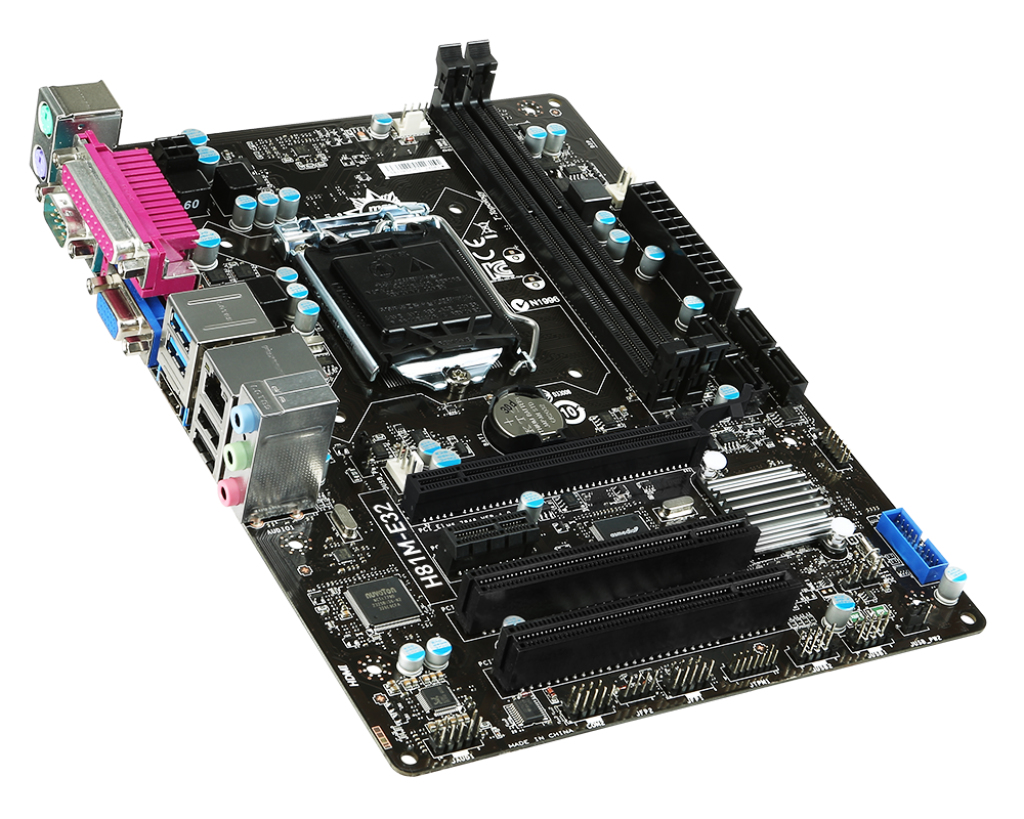

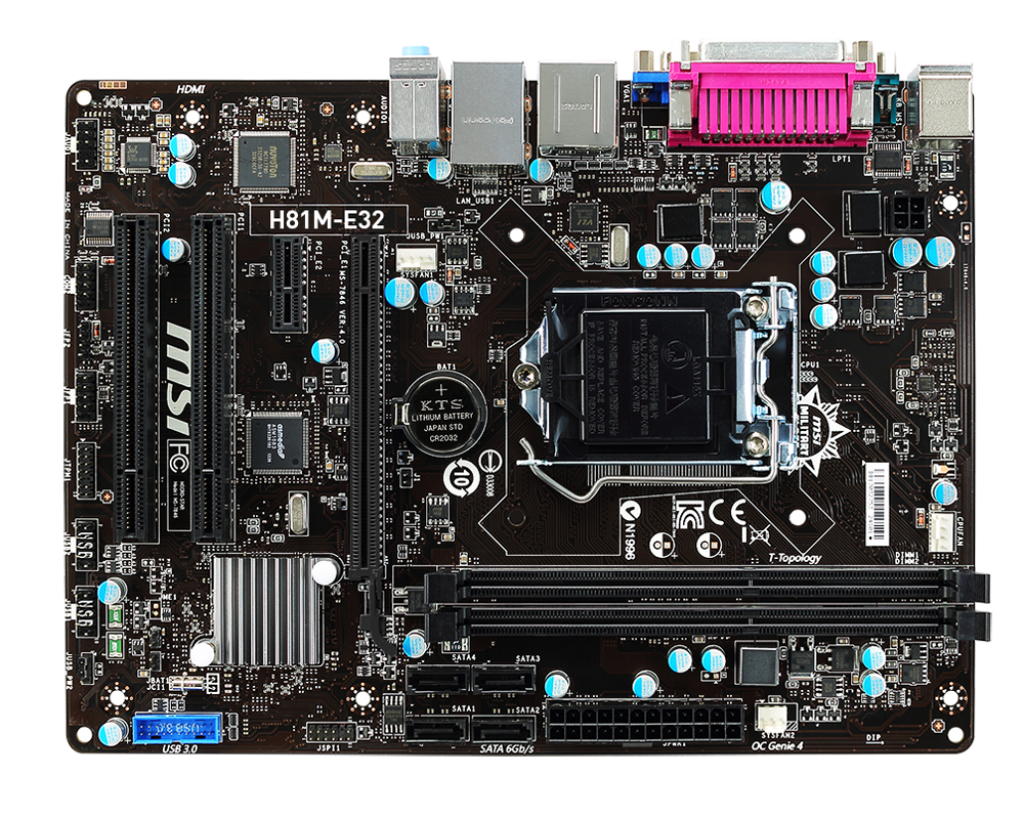

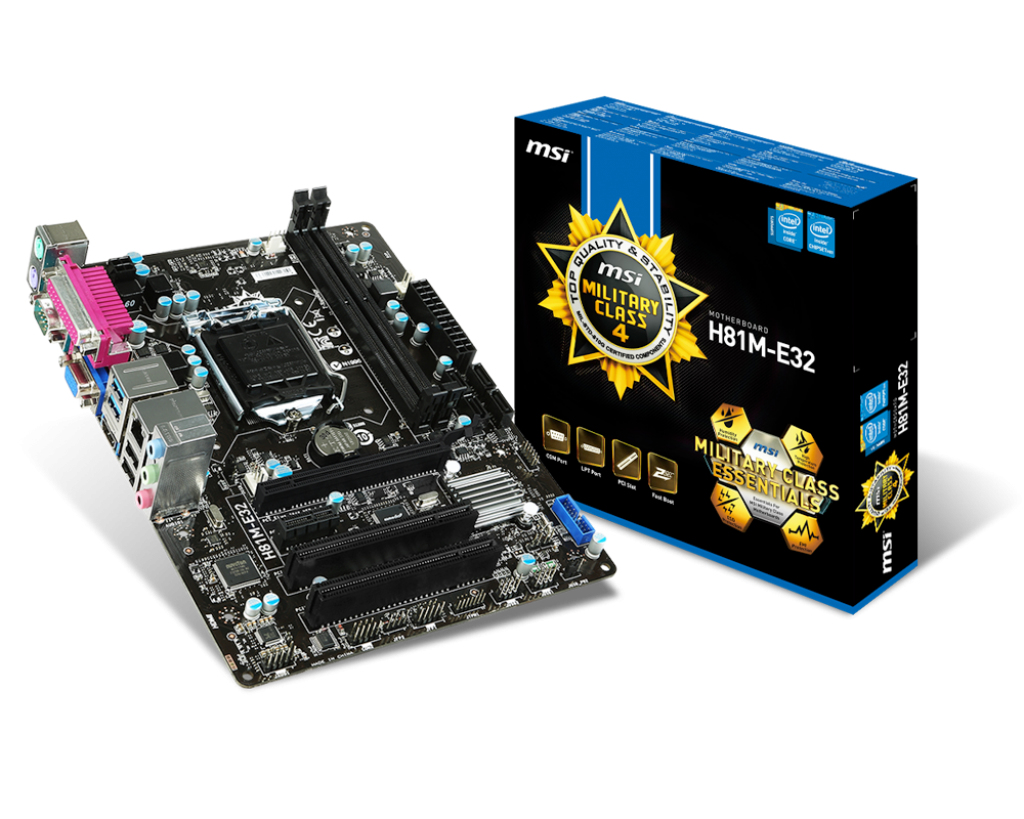

MSI H81M-E32 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX

MSI H81M-E32 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX

Model H81M-E32EAN 4719072331276

49 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
MSI
Category
Motherboard
Model
H81M-E32
Part number
H81M-E32
EAN / UPC
4719072331276
Also known as
MSI H81M-E32 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX

Specifications

49 specifications in 10 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors2
Number of SATA connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Serial port headers1
TPM connectorYes

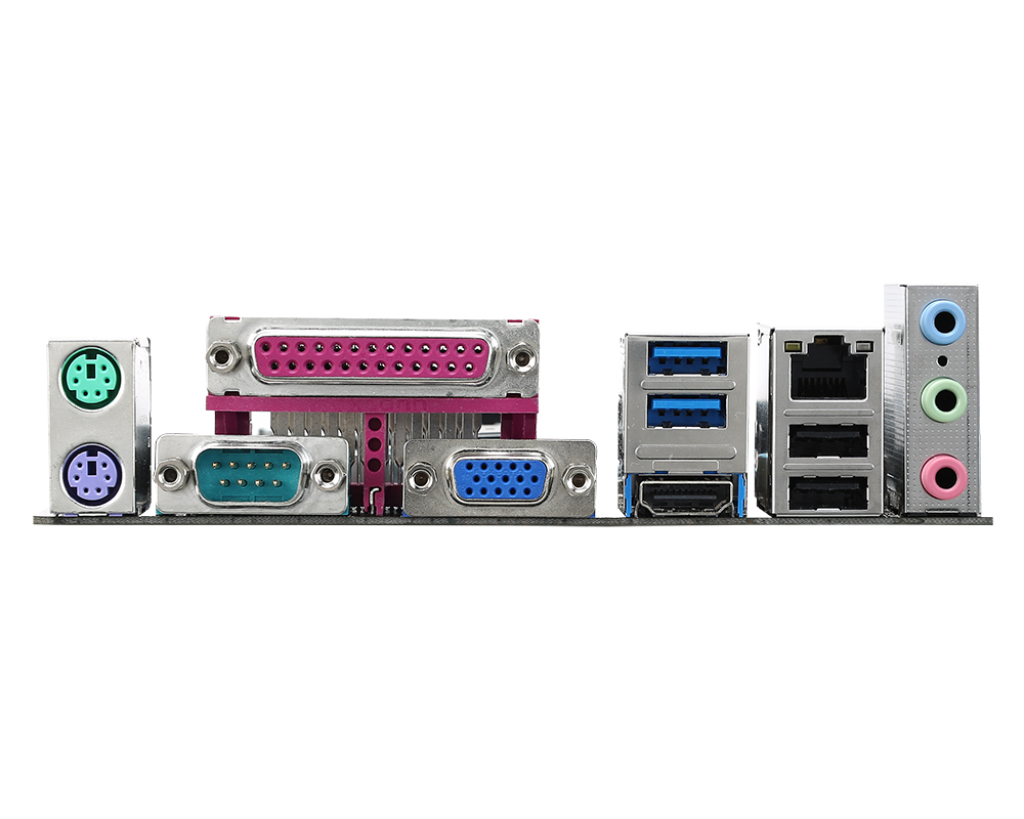

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H81
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 (Gen 2.x) slots1
PCI slots2

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width180 mm
Height243 mm
