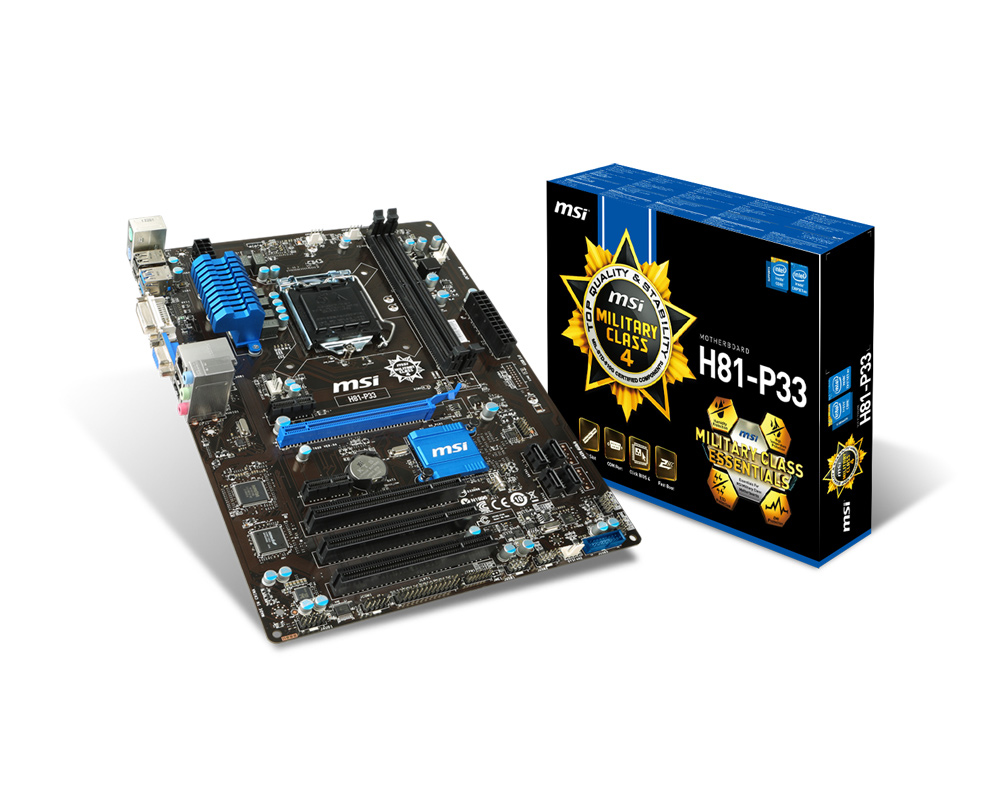

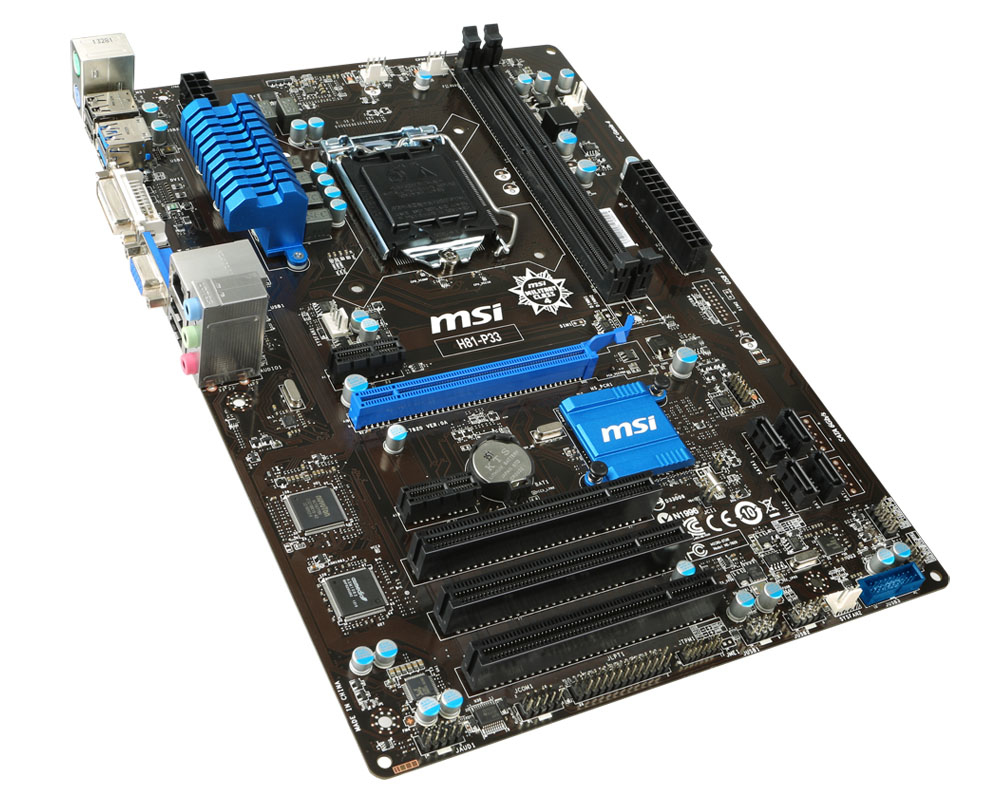

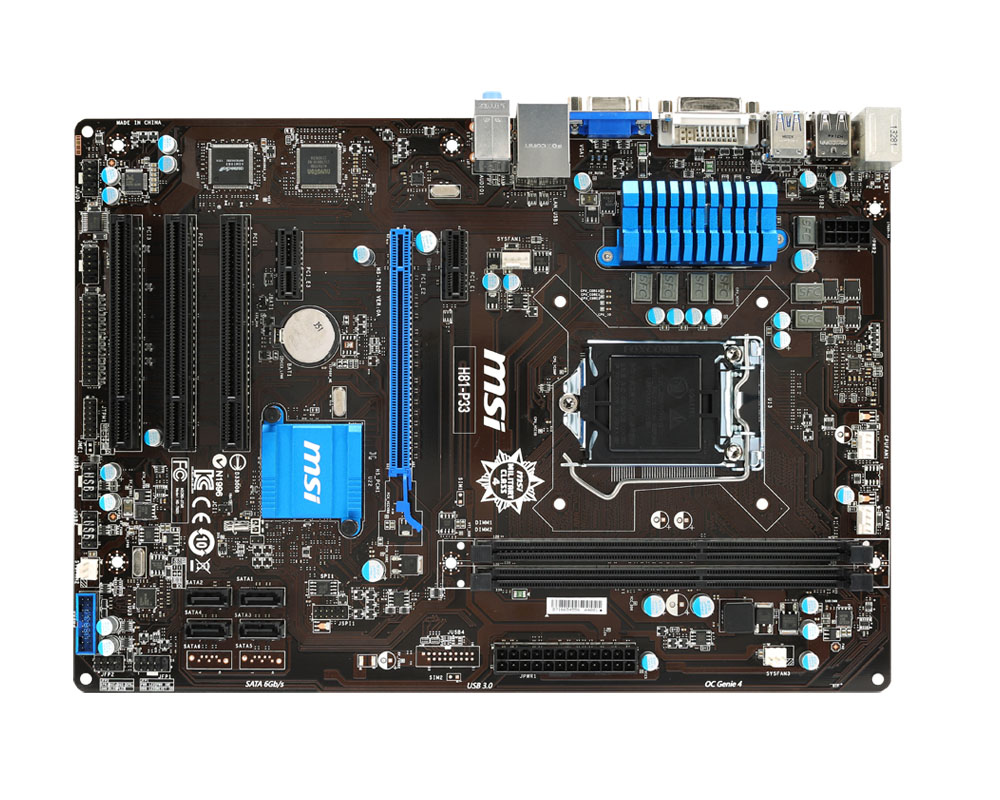

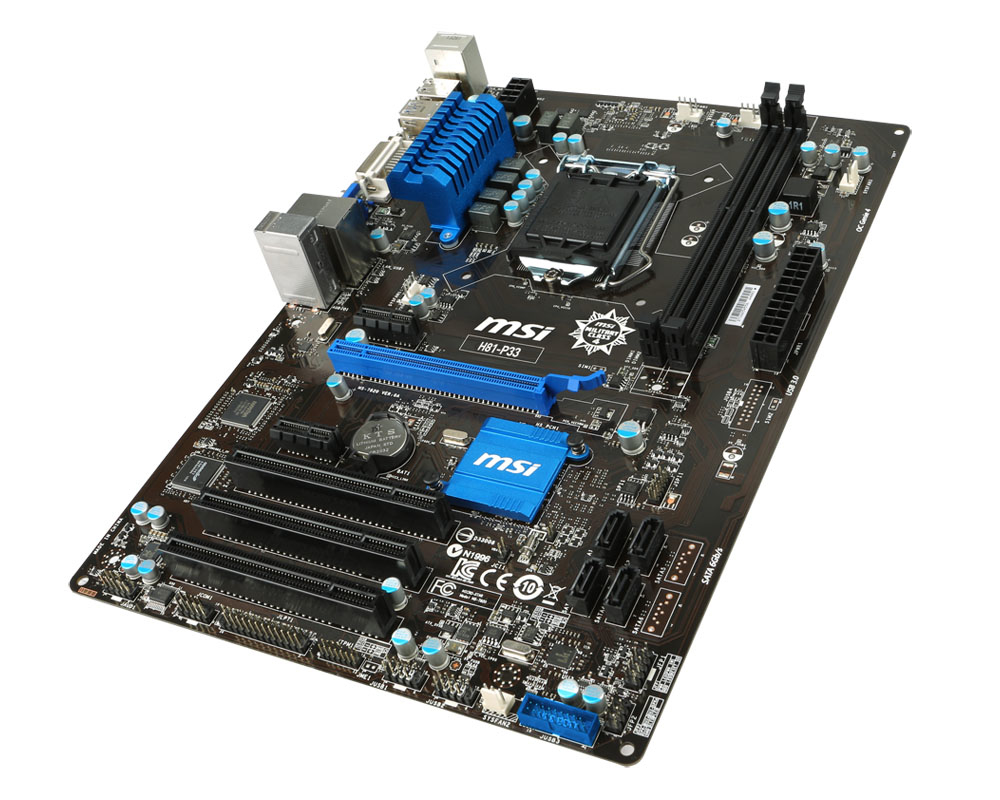

MSI H81-P33 Intel® H81 LGA 1150 (Socket H3) ATX

MSI H81-P33 Intel® H81 LGA 1150 (Socket H3) ATX

Model H81-P33Part no. 7820-010REAN 4053162789852

48 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum graphics card memory1760 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Maximum graphics card memory
1760 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
H81-P33
Part number
7820-010R
EAN / UPC
4053162789852, 4719072315498
Also known as
MSI H81-P33 Intel® H81 LGA 1150 (Socket H3) ATX

Specifications

48 specifications in 10 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

Maximum graphics card memory1760 MB
DirectX version11

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors2
Number of SATA II connectors2
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of chassis fan connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Parallel connectorYes
TPM connectorYes

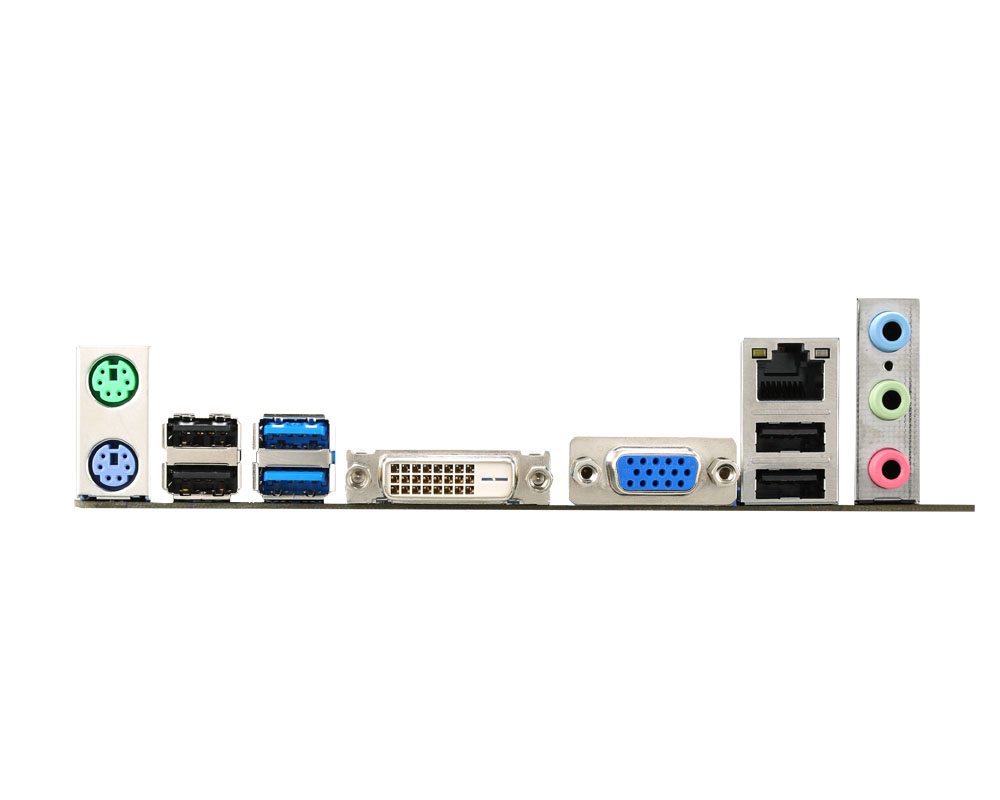

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
DVI-I ports quantity1
Headphone outputs1

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
LAN controllerRealtek RTL8111G

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H81
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 (Gen 2.x) slots1
PCI slots3

Weight & dimensions

Width214 mm
Depth305 mm
