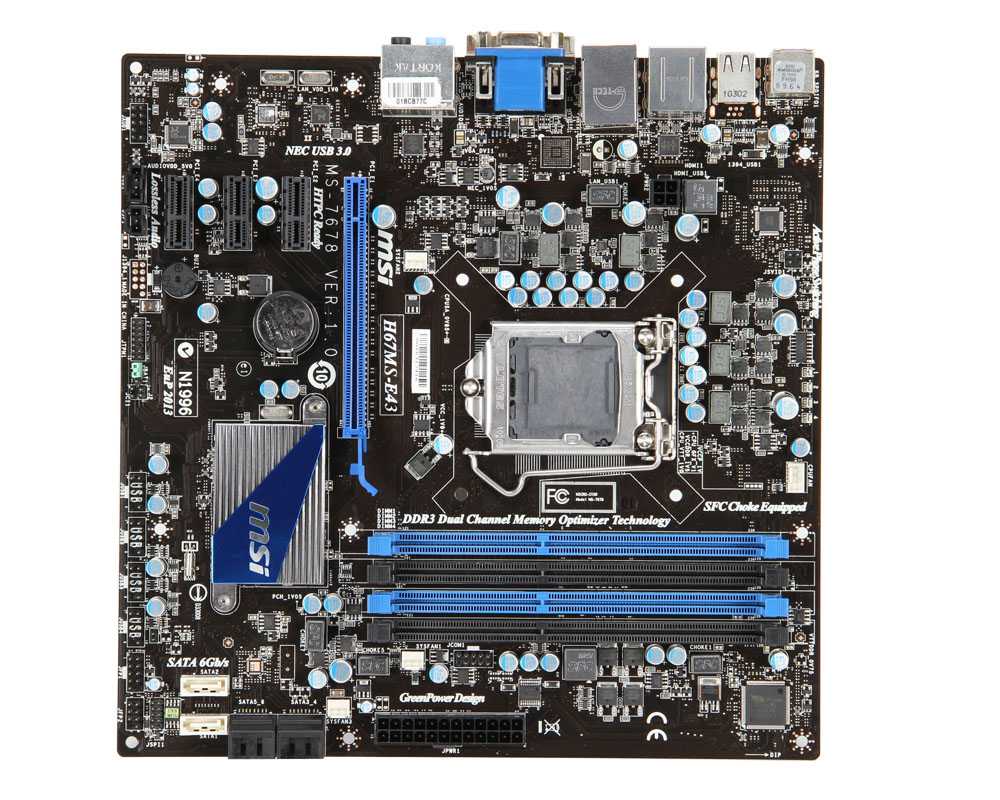

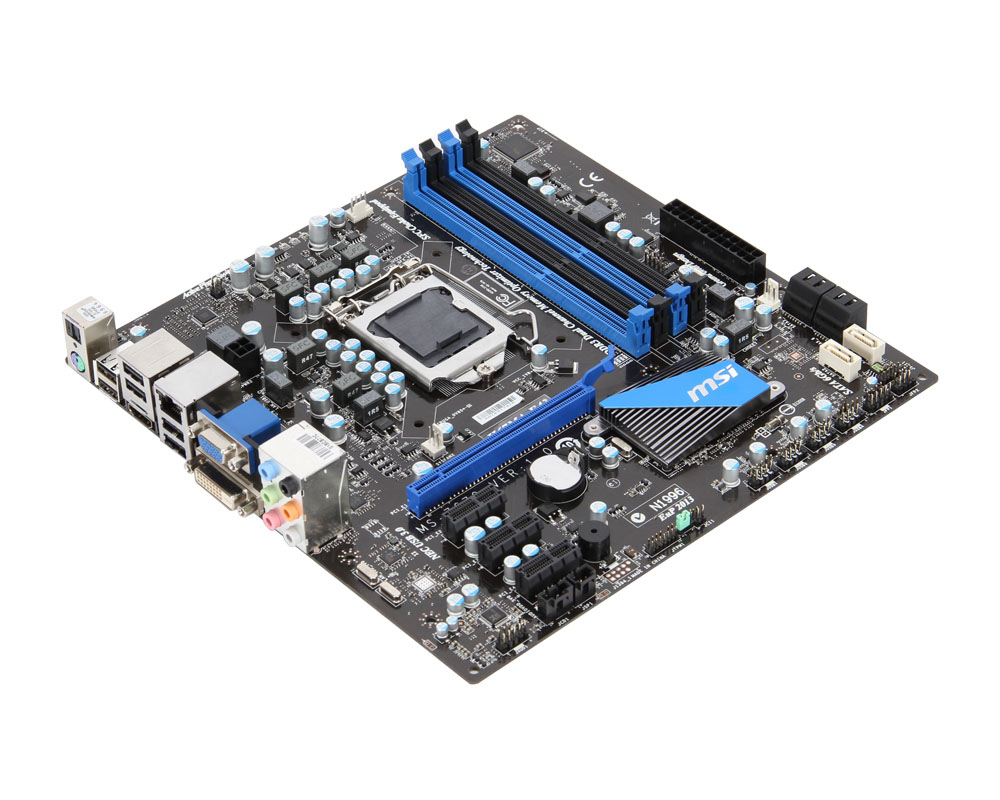

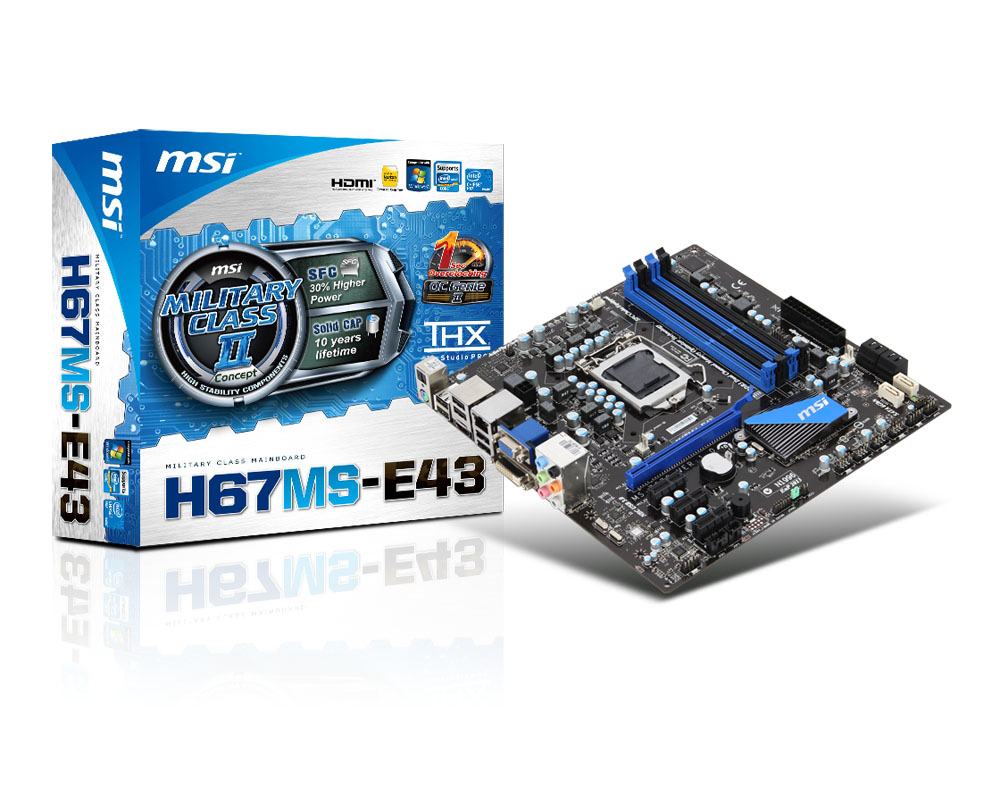

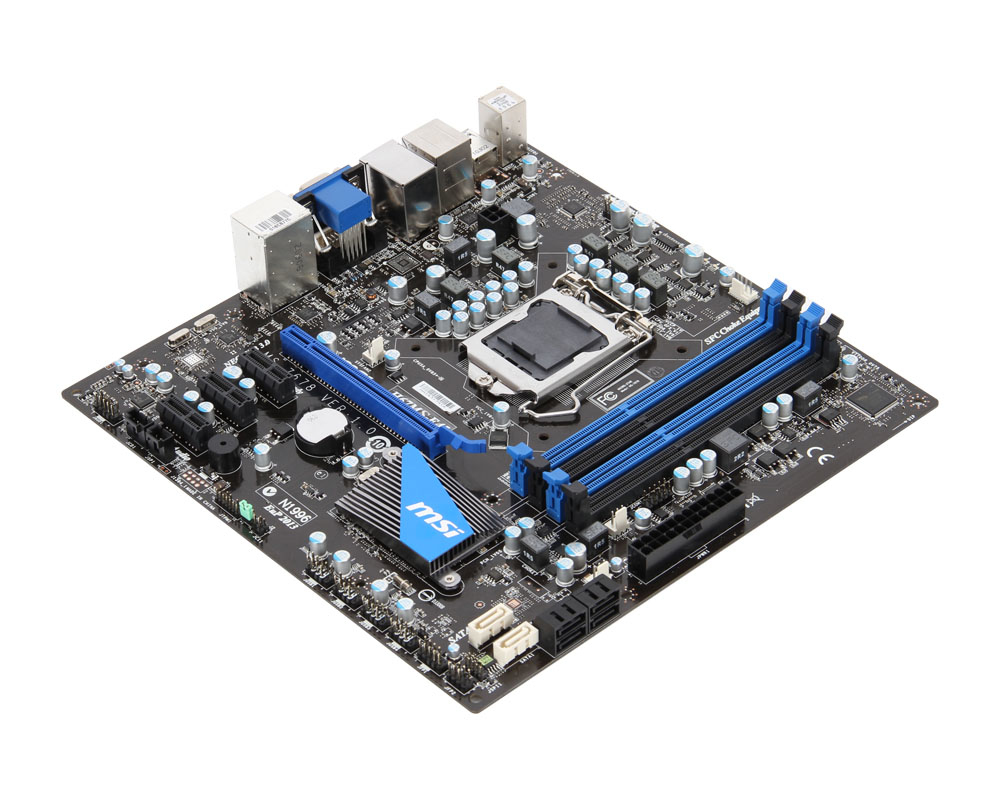

MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX
Model H67MS-E43
40 specifications
- Processor socketLGA 1155 (Socket H2)
- Number of memory slots4
- RAID levels0, 1, 5, 10
- Maximum graphics card memory1024 MB
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111E
Overview
- Processor socket
- LGA 1155 (Socket H2)
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- Maximum graphics card memory
- 1024 MB
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111E
- Brand
- MSI
- Category
- Motherboard
- Model
- H67MS-E43
- Part number
- H67MS-E43
- Also known as
- MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX
Specifications
40 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 1155 (Socket H2) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |

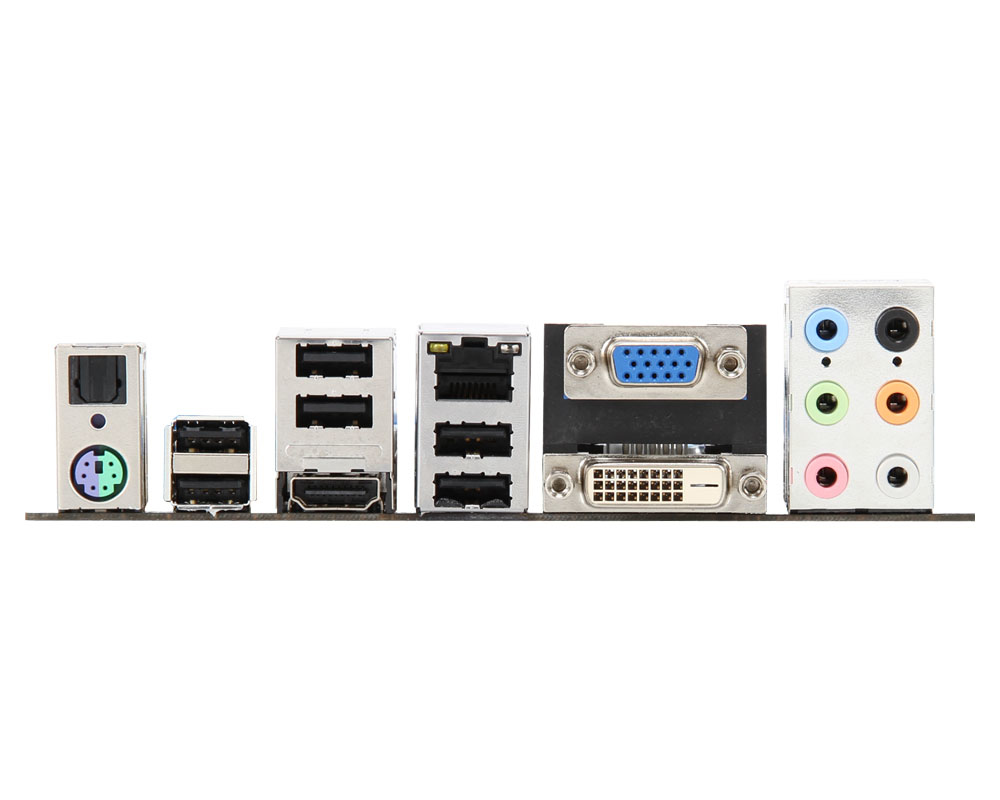

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | PCI Express LAN 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 245 mm |
What people say
Reviews & ratings
MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX

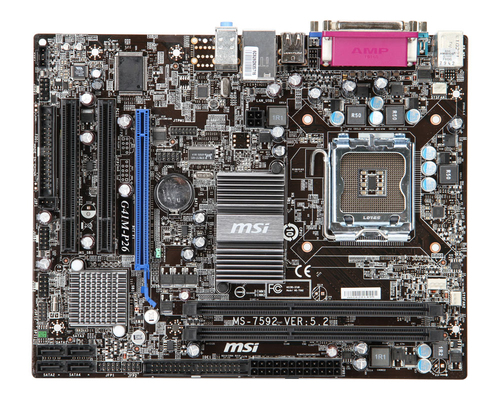

All motherboard comparisons- MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX vsMSI G41M-P26 LGA 775 (Socket T) micro ATXCompare specs

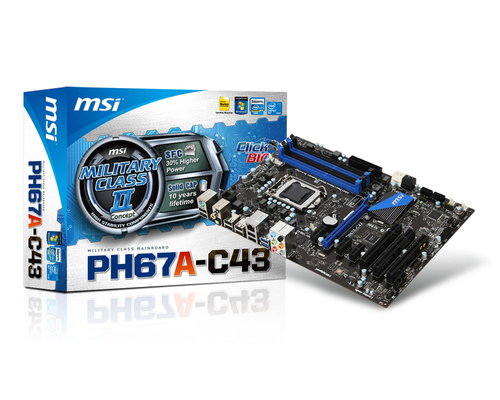

- MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX vsMSI PH67A-C43 LGA 1155 (Socket H2) ATXCompare specs

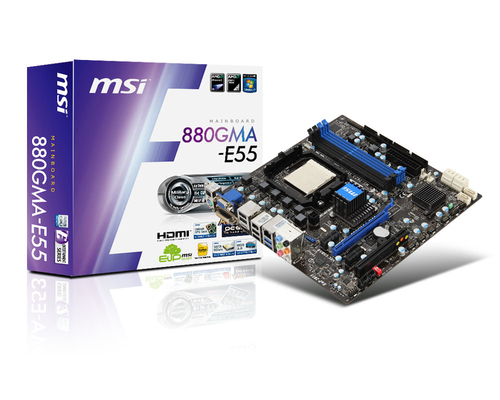

- MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX vsMSI 880GMA-E55 AMDCompare specs

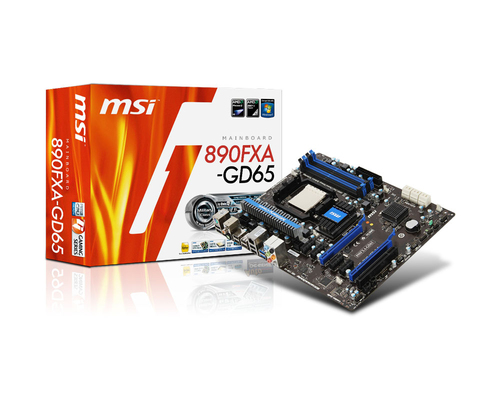

- MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX vsMSI 890FXA-GD65 AMD 890FX Socket AM3 ATXCompare specs
- MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX vsASUS P8P67 WS RevolutionCompare specs

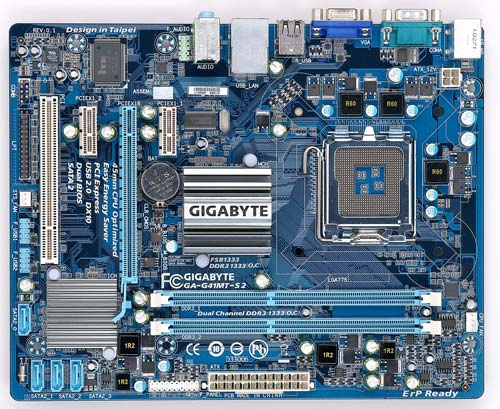

- MSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-G41MT-S2 motherboard Intel® G41 LGA 775 (Socket T) micro ATXCompare specs
