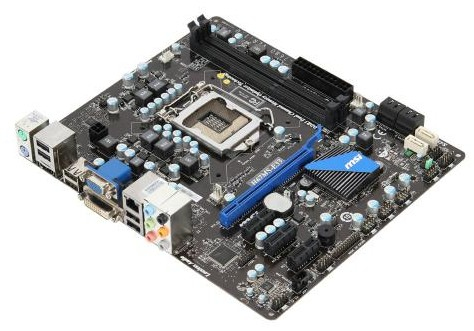

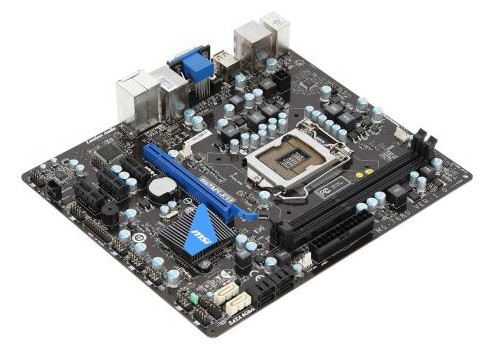

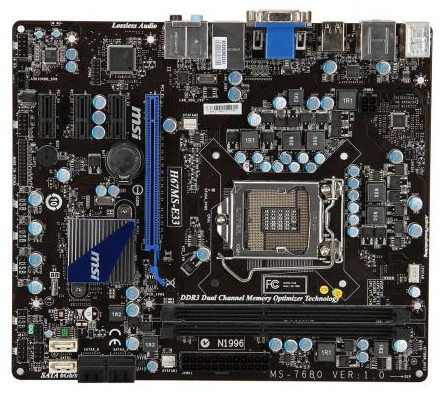

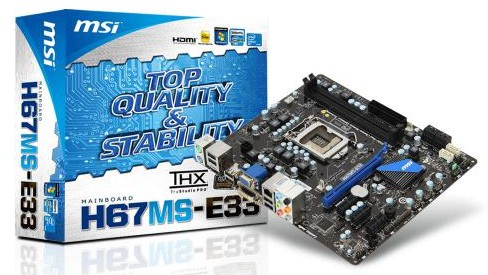

MSI H67MS-E33(B3) LGA 1155 (Socket H2) micro ATX

MSI H67MS-E33(B3) LGA 1155 (Socket H2) micro ATX

Model H67MS-E33(B3)Part no. 7680-011REAN 4719072217471

51 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • RAID levels0, 1, 5, 10
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors4
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
RAID levels
0, 1, 5, 10
Parallel processing technology support
Not supported
USB 2.0 connectors
4
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
H67MS-E33(B3)
Part number
7680-011R
EAN / UPC
4719072217471
Also known as
MSI H67MS-E33(B3) LGA 1155 (Socket H2) micro ATX

Specifications

51 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Processor system buses supported1066,1333 MHz
System bus rate6.4 GT/s

Memory

Number of memory slots2
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB
Supported memory module capacities1GB, 2GB, 4GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors4
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
TPM connectorYes

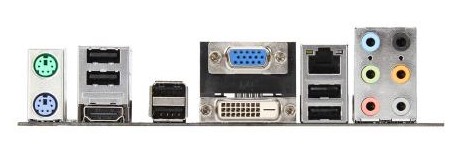

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet interface typeFast Ethernet
LAN controllerRealtek RTL8111E
Networking features10/100/1000 Mbps

Features

Motherboard form factormicro ATX
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWin XP/Vista/7 32/64bit

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots1

BIOS

BIOS typeAMI

Weight & dimensions

Width210 mm
Depth245 mm

Other features

Controller 2nd interface typeSATAIII 6Gb/s
Controller interface typeSATAII 3Gb/s
