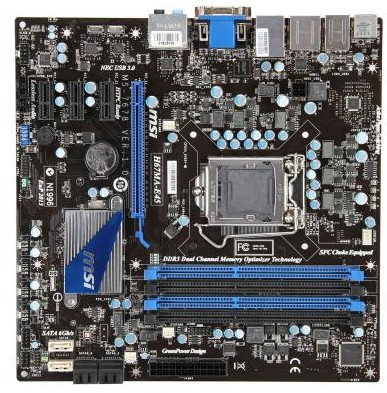

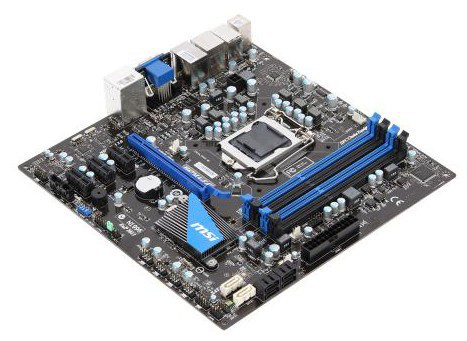

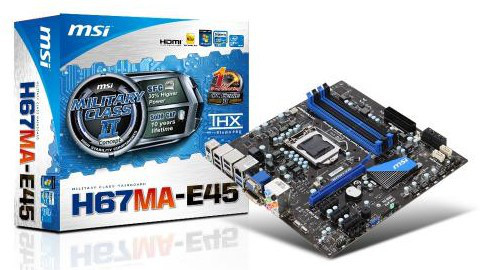

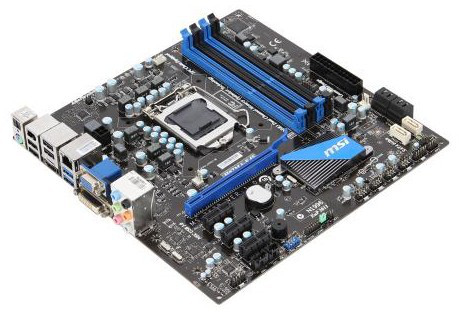

MSI H67MA-E45(B3) LGA 1155 (Socket H2) micro ATX

MSI H67MA-E45(B3) LGA 1155 (Socket H2) micro ATX

Model H67MA-E45(B3)Part no. 7678-011REAN 4719072217235

55 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • Maximum graphics card memory1024 MB
  • Ethernet interface typeFast Ethernet
  • Motherboard form factormicro ATX
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 5, 10
Maximum graphics card memory
1024 MB
Ethernet interface type
Fast Ethernet
Motherboard form factor
micro ATX
Brand
MSI
Category
Motherboard
Model
H67MA-E45(B3)
Part number
7678-011R
EAN / UPC
4719072217235
Also known as
MSI H67MA-E45(B3) LGA 1155 (Socket H2) micro ATX

Specifications

55 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Processor system buses supported1066,1333 MHz
System bus rate6.4 GT/s

Memory

Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory32 GB
Supported memory module capacities1GB, 2GB, 4GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology supportNot supported
On-board graphics cardYes

Internal I/O

USB 2.0 connectors4
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes
Number of IEEE1394 connectors1
TPM connectorYes

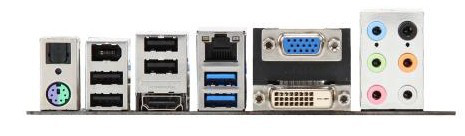

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeFast Ethernet
LAN controllerRealtek RTL8111E
Networking features10/100/1000 Mbps

Features

Motherboard form factormicro ATX
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWin XP/Vista/Win7 32/64bit

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots1

BIOS

BIOS typeAMI

Weight & dimensions

Width245 mm
Depth245 mm

Other features

Controller 2nd interface typeSATAIII 6Gb/s
Controller interface typeSATAII 3Gb/s
