MSI H67MA-E35 (B3)

MSI H67MA-E35 (B3)

Model H67MA-E35 (B3)Part no. H67MA-E35-(B3)EAN 4719072217228

54 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • RAID levels0, 1, 5, 10
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
RAID levels
0, 1, 5, 10
Maximum graphics card memory
1024 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
H67MA-E35 (B3)
Part numbers
H67MA-E35-(B3), 911-7680-070, 911-7680-096, H67MA-E35 (B3), 7680-021R
EAN / UPC
4719072217228, 816909083361, 3610170032397
Also known as
MSI H67MA-E35 (B3) motherboard LGA 1155 (Socket H2) micro ATX

Specifications

54 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots2
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB
Supported memory module capacities1GB, 2GB, 4GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology supportNot supported
On-board graphics cardYes

Internal I/O

USB 2.0 connectors3
Number of SATA III connectors2
Number of SATA II connectors4
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
TPM connectorYes

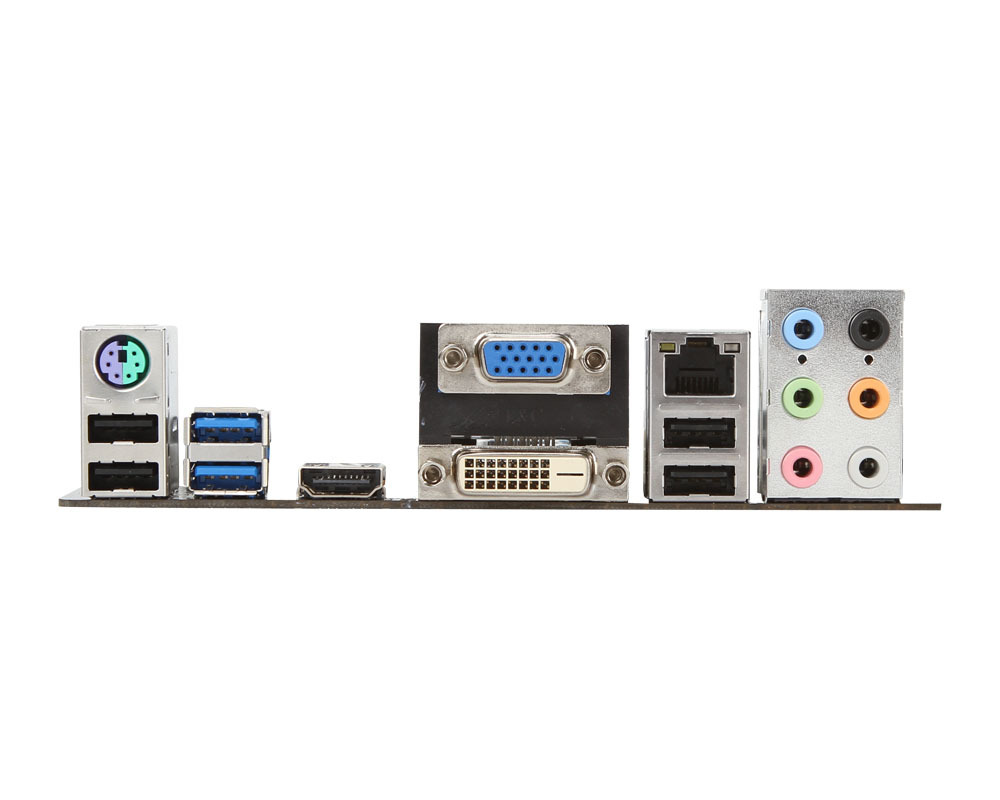

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsMicrosoft Windows

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots1

Weight & dimensions

Width245 mm
Depth215 mm

Other features

Controller 2nd interface typeSATAII 3Gb/s
Controller interface typeSATAIII 6Gb/s
