MSI H61MA-E35 (B3)

MSI H61MA-E35 (B3)

Model H61MA-E35 (B3)Part no. H61MA-E35-B3EAN 4719072230784

44 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
H61MA-E35 (B3)
Part numbers
H61MA-E35-B3, H61MA-E35 (B3), 911-7740-003, 601-7740-04S, H61MA-E35(B3)
EAN / UPC
4719072230784, 816909092042
Also known as
MSI H61MA-E35 (B3) Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

44 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors2
Number of SATA III connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
TPM connectorYes

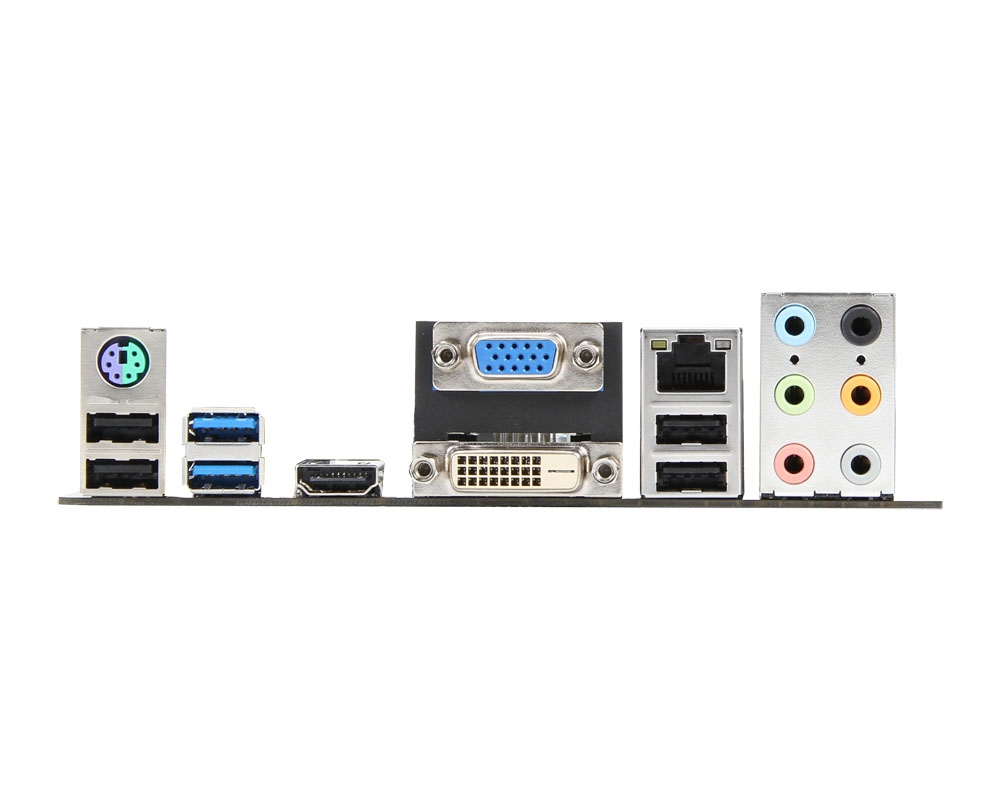

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1

Network

Ethernet interface typeGigabit Ethernet
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1

BIOS

Clear CMOS buttonYes

Weight & dimensions

Width215 mm
Depth244 mm
