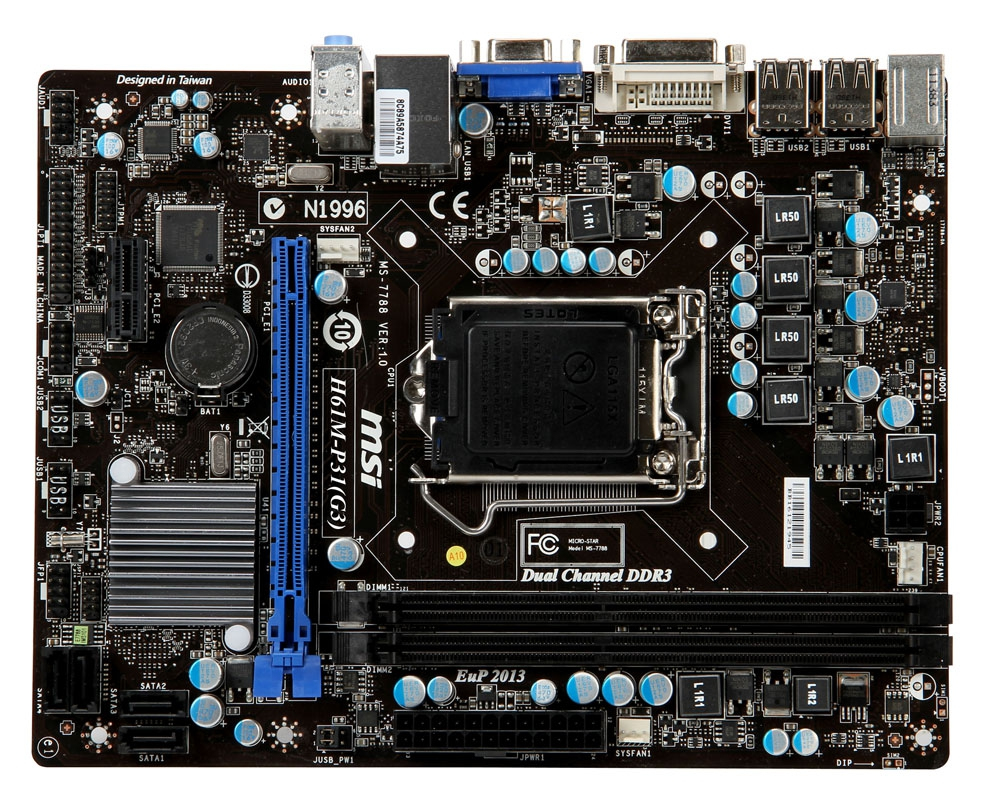

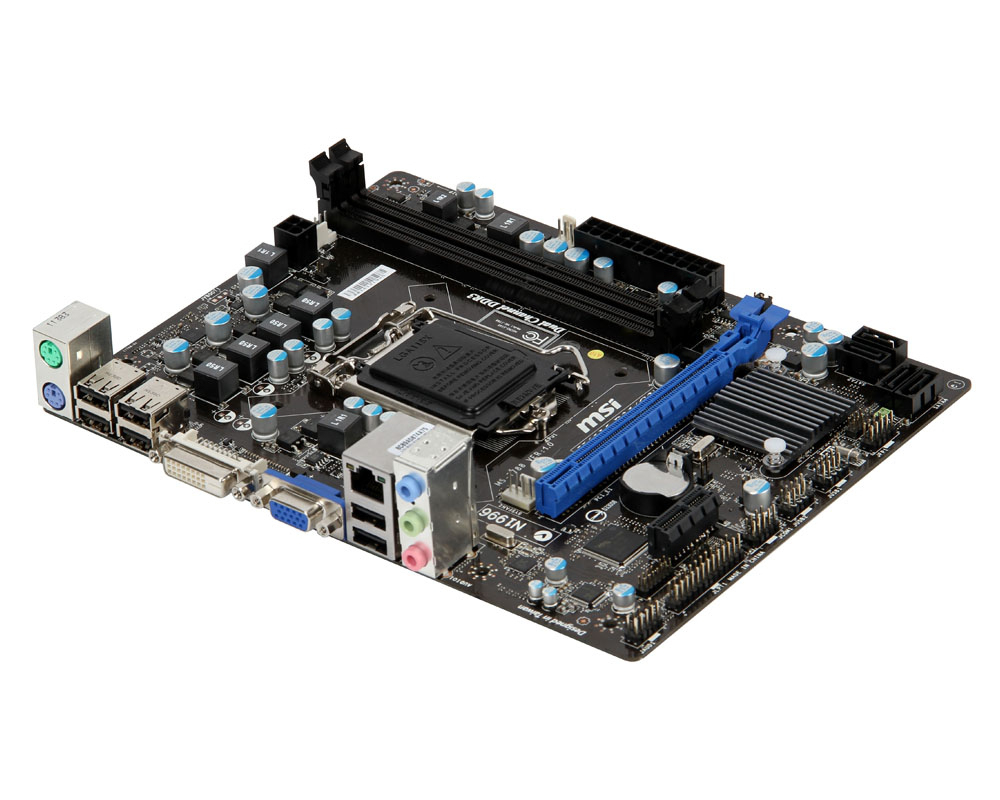

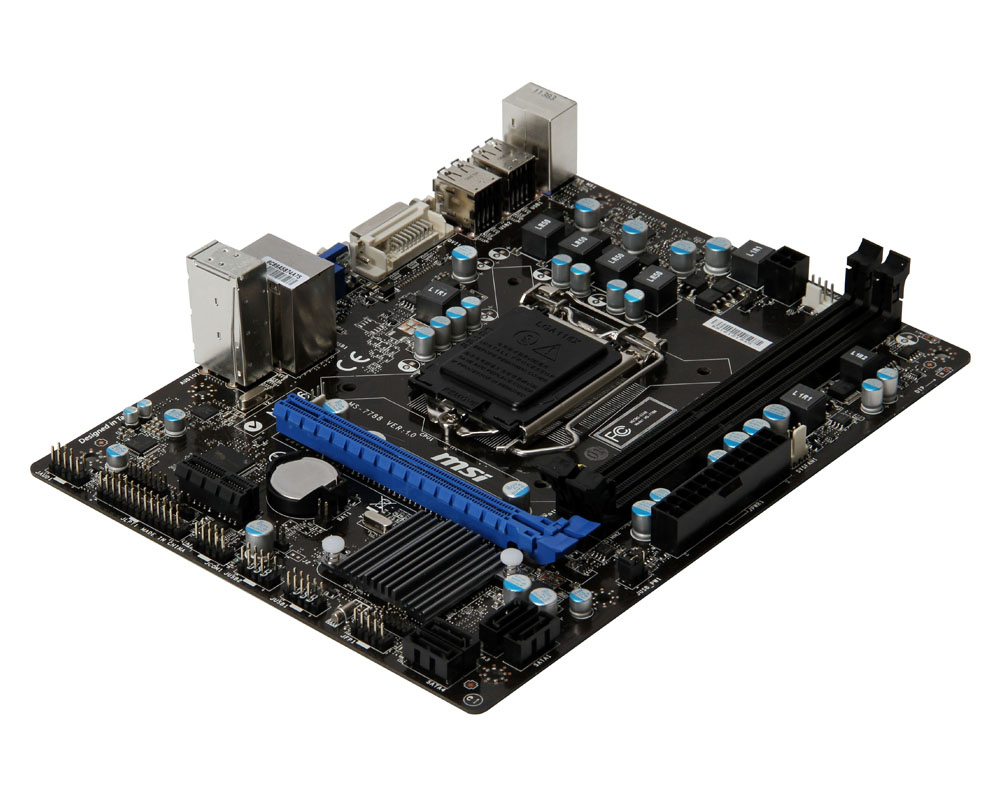

MSI H61M-P31 (G3)

MSI H61M-P31 (G3)

Model H61M-P31 (G3)EAN 816909094244

61 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Maximum graphics card memory1759 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Maximum graphics card memory
1759 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
H61M-P31 (G3)
Part numbers
H61M-P31 (G3), 911-7788-004, H61M-P31 (G3)/W8
EAN / UPC
816909094244, 4719072252595
Also known as
MSI H61M-P31 (G3) motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

61 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Maximum graphics card memory1759 MB
Parallel processing technology supportNot supported
On-board graphics cardYes
DirectX version10.1

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1
Parallel connectorYes

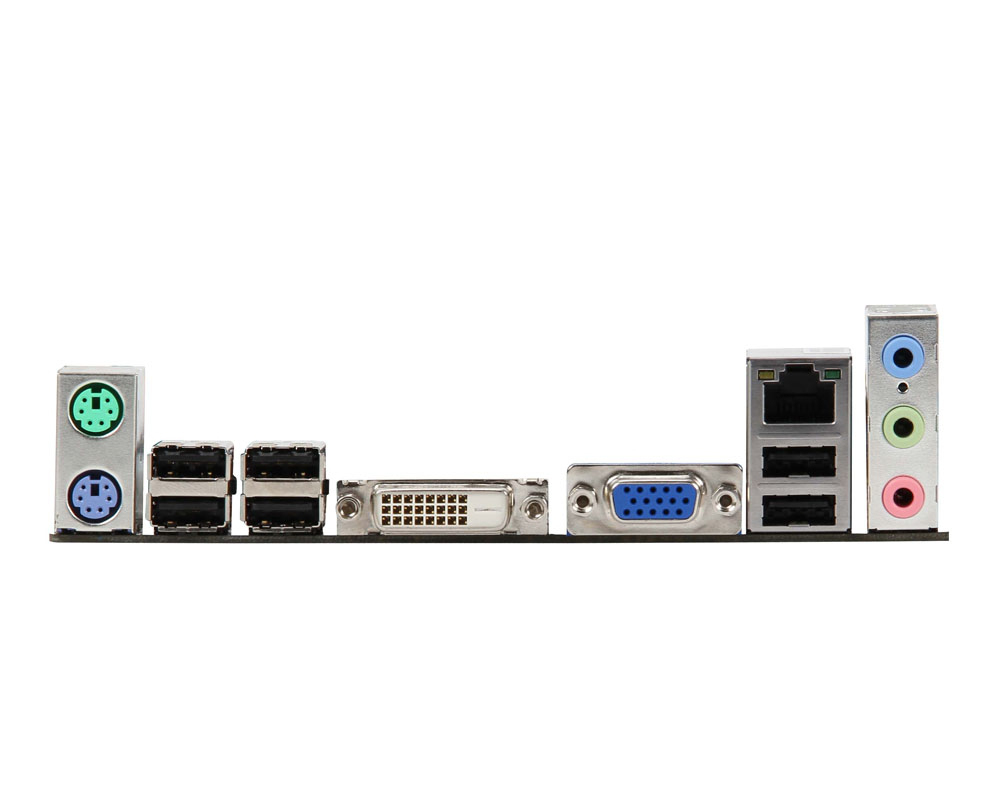

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111E
Wake-on-LAN readyYes
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI Express slots version2.0, 3.0

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Weight & dimensions

Width173 mm
Depth226 mm

Other features

Quick installation guideYes
