MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX
Model H61M-P25Part no. 7680-060REAN 4719072237684
52 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- Parallel processing technology supportHybrid CrossFireX
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- Parallel processing technology support
- Hybrid CrossFireX
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- H61M-P25
- Part numbers
- 7680-060R, 7680-060R/KIT
- EAN / UPC
- 4719072237684
- Also known as
- MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX
Specifications
52 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Hybrid CrossFireX |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H61 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 98SE/ME/2000/XP/Vista/7 32Bit |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 195 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATA 3Gb/s |
What people say
Reviews & ratings
MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX
All motherboard comparisons- MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI 760GM-E51 (FX)Compare specs

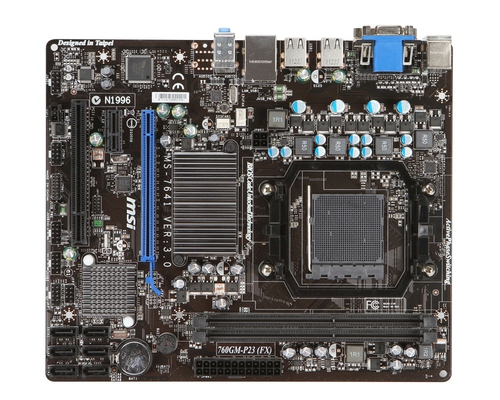

- MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI 760GM-P23 (FX) MainboardCompare specs
- MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI Z68A-GD80 motherboard Intel Z68 LGA 1155 (Socket H2) ATXCompare specs
- MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI Z68A-GD55 (G3)Compare specs

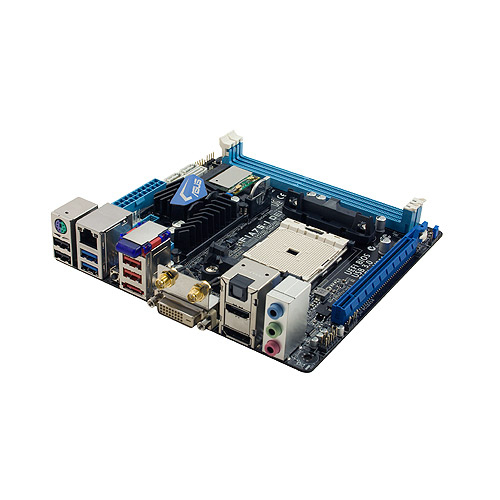

- MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS F1A75-I DELUXECompare specs

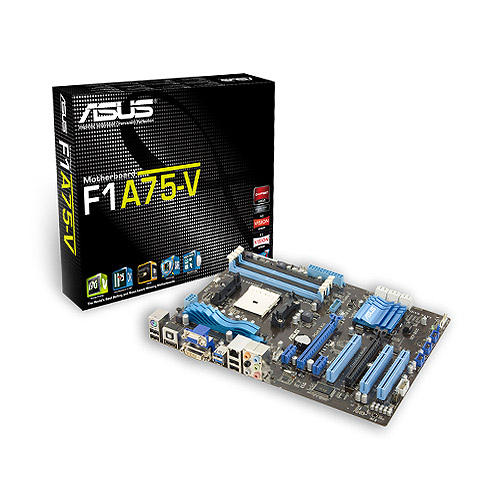

- MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS F1A75-V AMD Hudson D3 Socket FM1 ATXCompare specs

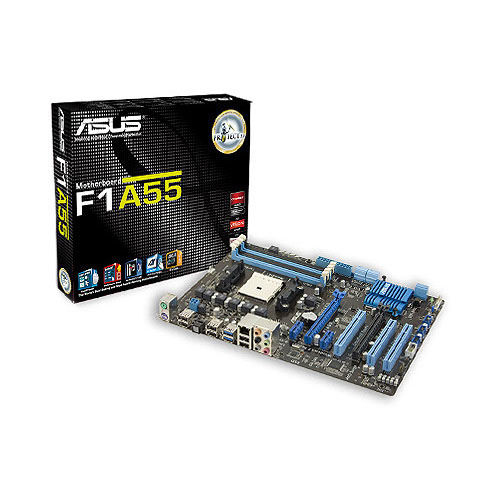

- MSI H61M-P25 Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS F1A55 AMD A55 Socket FM1 ATXCompare specs
