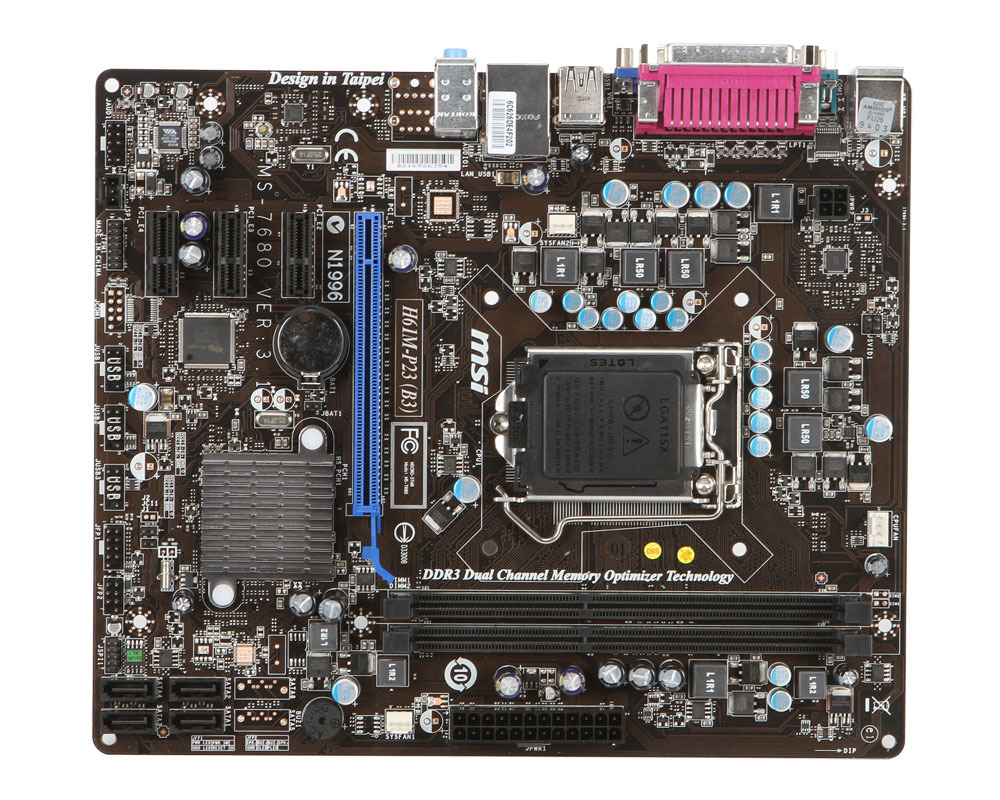

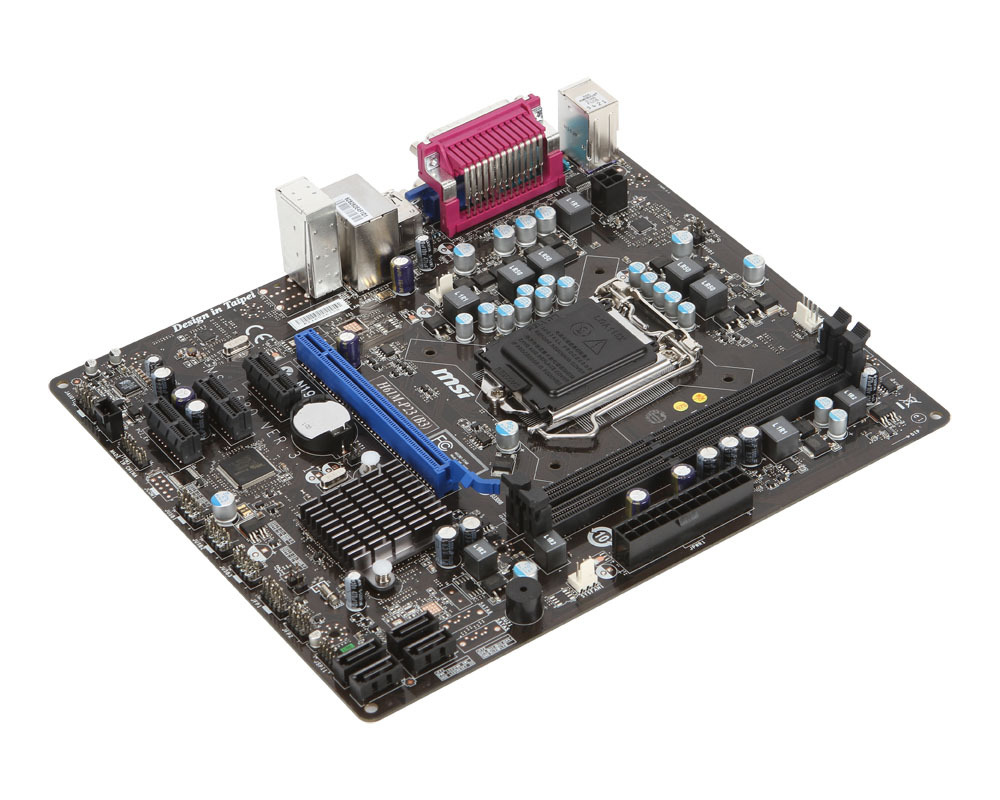

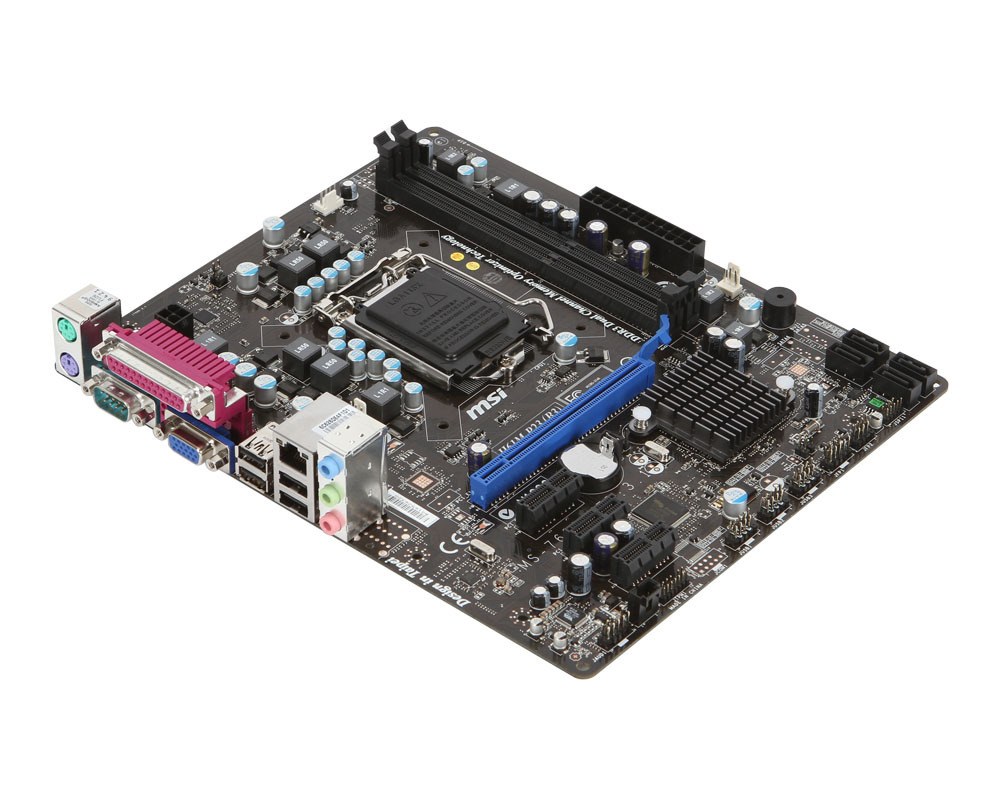

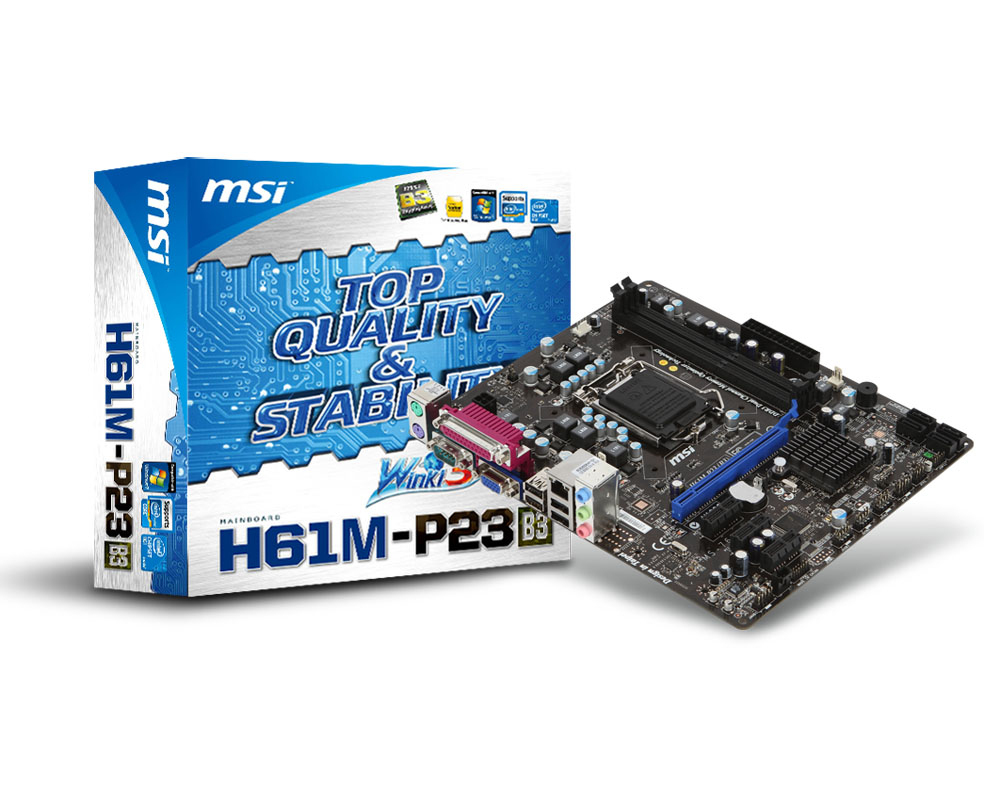

MSI H61M-P23 (B3)

MSI H61M-P23 (B3)

Model H61M-P23 (B3)EAN 816909084108

48 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Ethernet interface type
Gigabit Ethernet
Brand
MSI
Category
Motherboard
Model
H61M-P23 (B3)
Part numbers
H61M-P23 (B3), H61M-P23(B3), 911-7680-051
EAN / UPC
816909084108
Also known as
MSI H61M-P23 (B3) motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

48 specifications in 10 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots2
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
TPM connectorYes

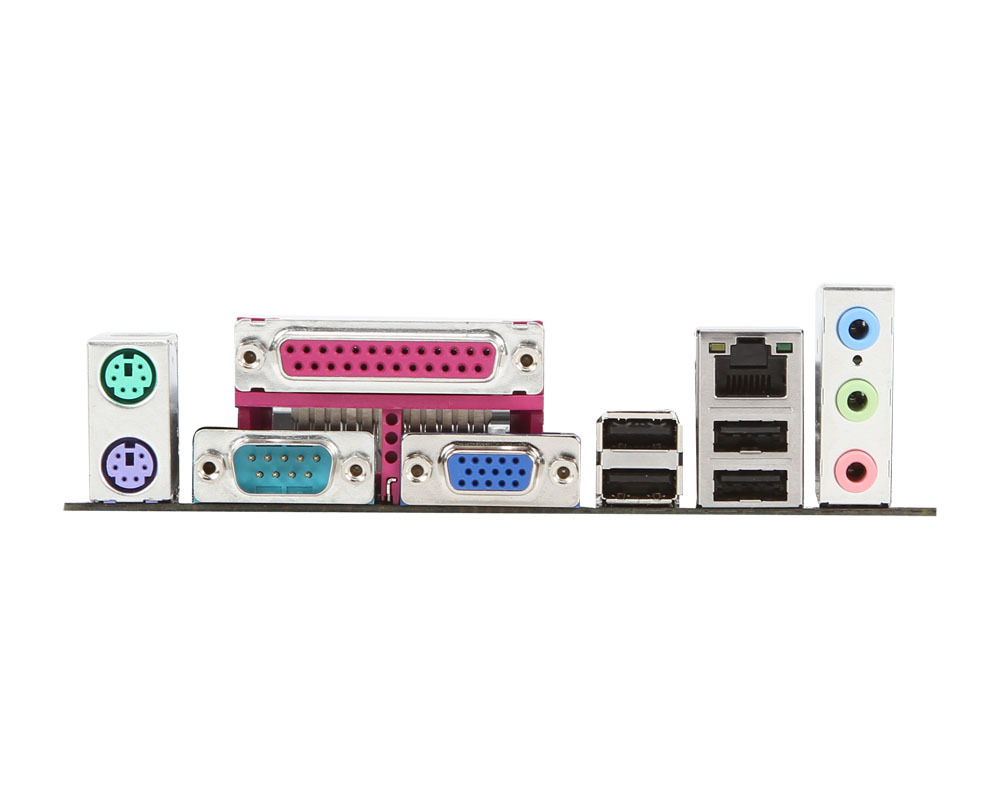

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerAtheros AR8151

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetIntel® H61
Audio chipVIA VT1708S
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots1
PCI Express slots version2.0

Weight & dimensions

Width245 mm
Depth205 mm

Other features

Controller interface typeSATAII 3 Gb/s
