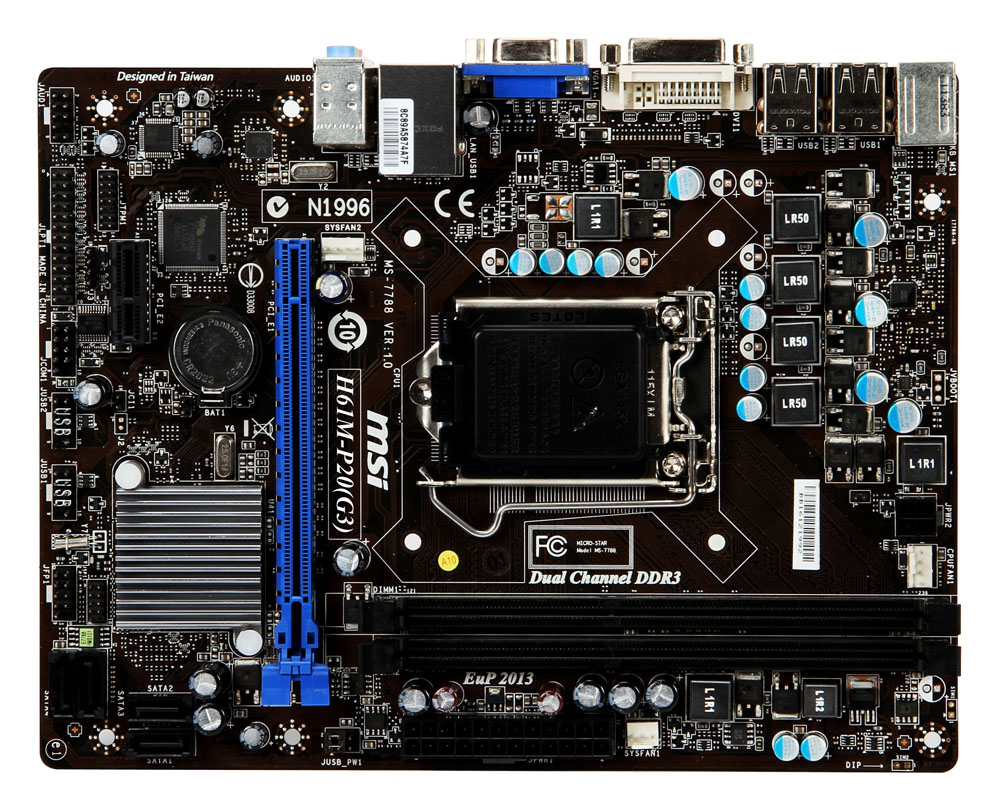

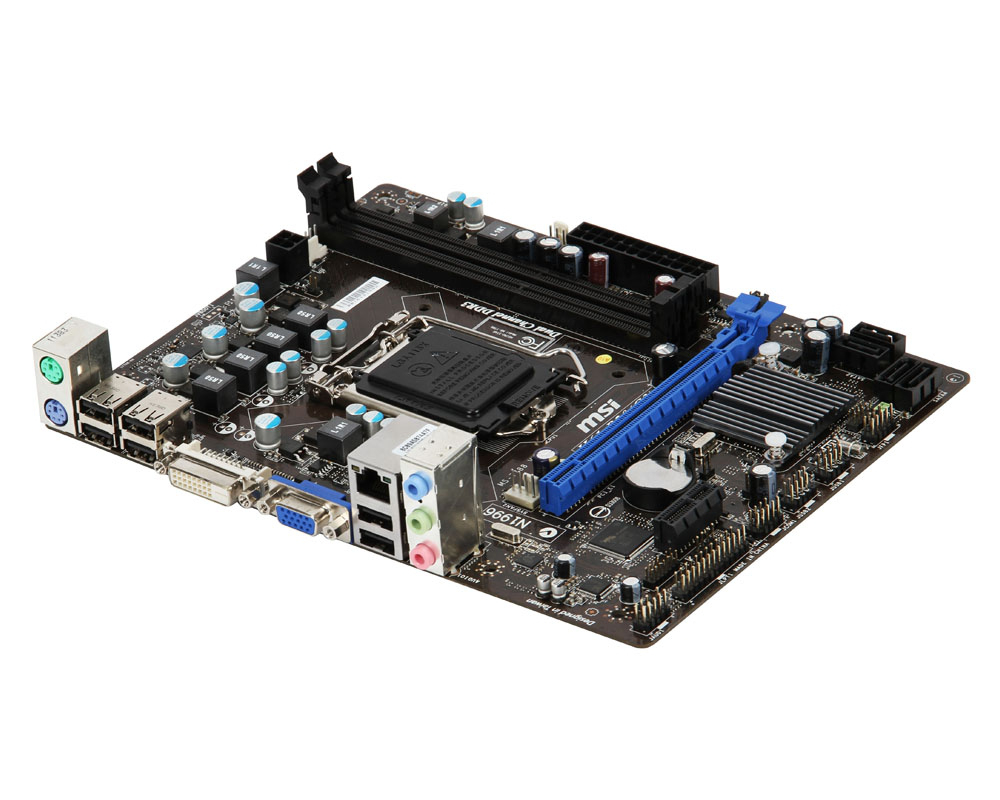

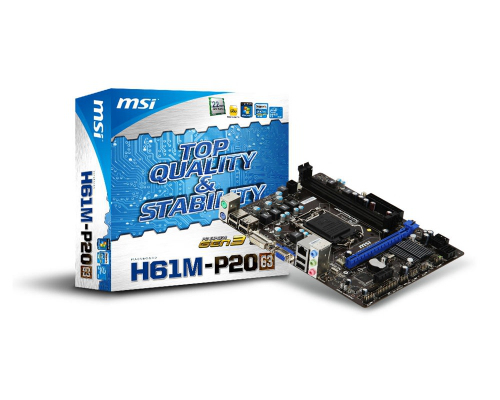

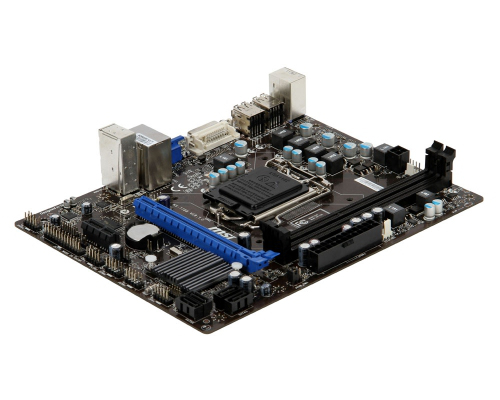

MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX
Model H61M-P20Part no. 7788-010REAN 4719072252922
77 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- Maximum graphics card memory1759 MB
- USB 2.0 connectors2
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- Maximum graphics card memory
- 1759 MB
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- Brand
- MSI
- Category
- Motherboard
- Model
- H61M-P20
- Part number
- 7788-010R
- EAN / UPC
- 4719072252922
- Also known as
- MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX
Specifications
77 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron® G, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| System bus rate | 5 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1759 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| OpenGL version | 3.1 |
| DirectX version | 11 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |
| TPM connector | Yes |

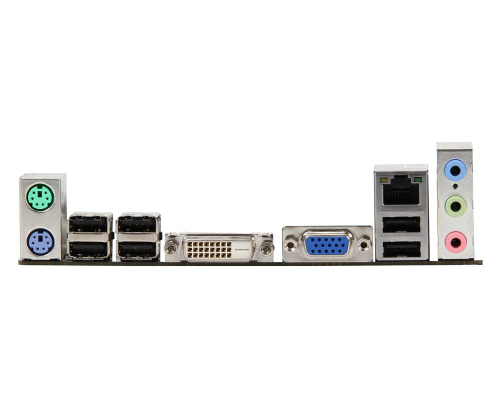

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| S/PDIF out port | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| LAN controller | Realtek RTL8105E |
| Wi-Fi | No |
| Bluetooth | No |
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H61 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express configurations | 1x16 |
| PCI Express slots version | 2.0, 3.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 173 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Dual Link DVI | Yes |
| Controller interface type | Intel H61 (B3) |
| Parallel port via internal header | Yes |
| Quick installation guide | Yes |
| Serial port via internal header | Yes |
What people say
Reviews & ratings
MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX
All motherboard comparisons- MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI 880GMS-E35 (FX)Compare specs

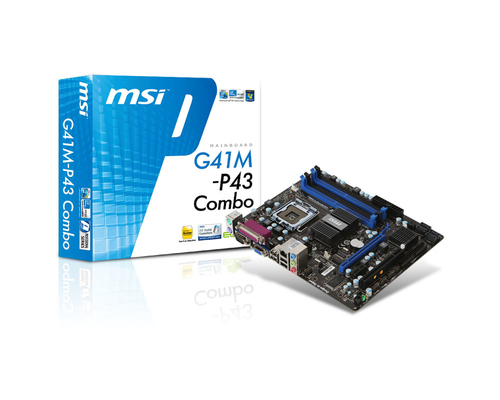

- MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI G41M-P43 Intel® G41 LGA 775 (Socket T) micro ATXCompare specs
- MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI H61M-P31 (G3)Compare specs
- MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATXCompare specs

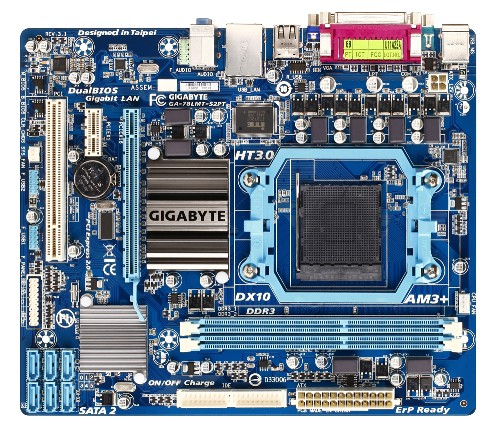

- MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-78LMT-S2PT motherboard AMDCompare specs

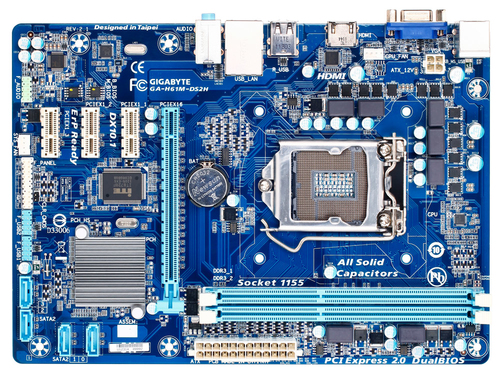

- MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-H61M-DS2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs

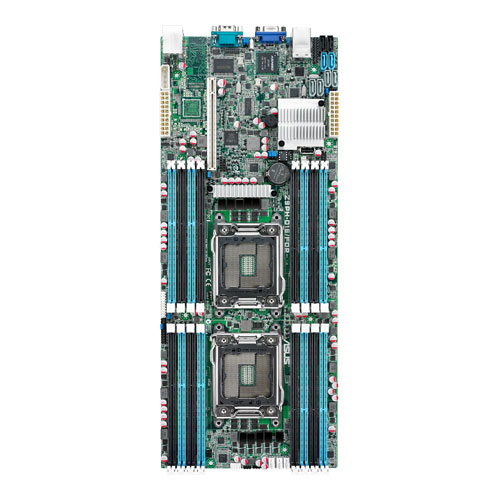

- MSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS Z9PH-D16/IKVM motherboard Intel® C602 LGA 2011 (Socket R)Compare specs
