MSI H61M-G35 (G3)

MSI H61M-G35 (G3)

Model H61M-G35 (G3)Part no. 7680-070REAN 4719072253066

53 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Maximum graphics card memory
1024 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
H61M-G35 (G3)
Part numbers
7680-070R, 601-7680-26S
EAN / UPC
4719072253066
Also known as
MSI H61M-G35 (G3) Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

53 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology supportNot supported
On-board graphics cardNo
DirectX version10.1

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Parallel connectorYes
TPM connectorYes

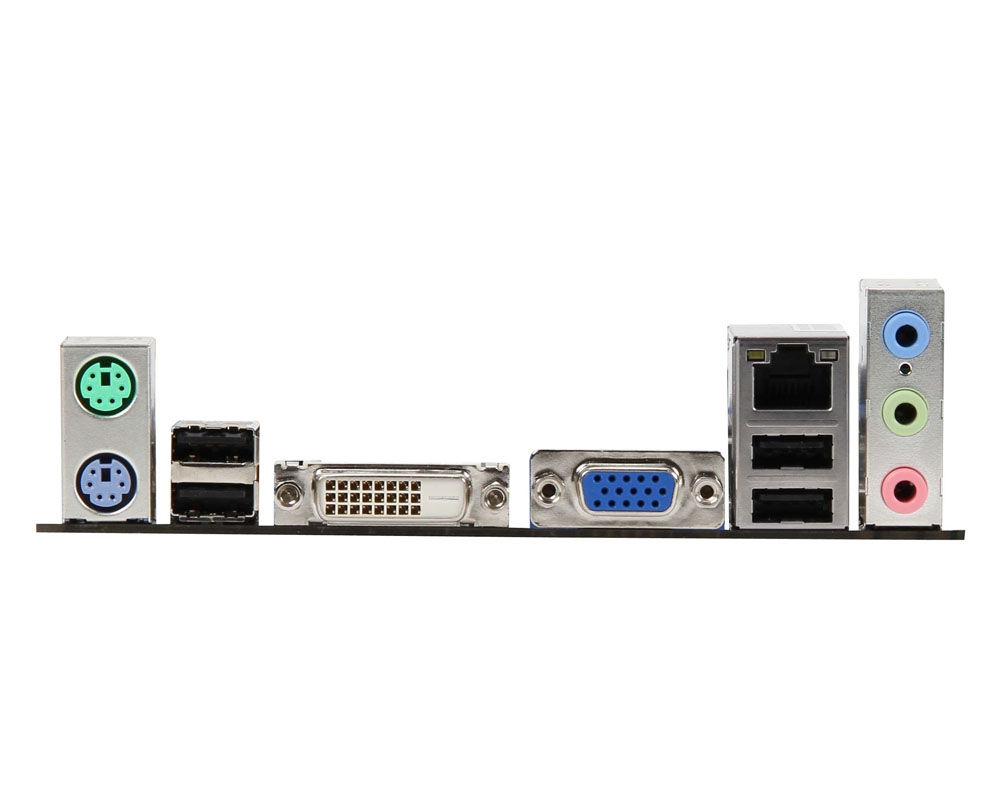

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x16 slots2
PCI slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth244 mm
