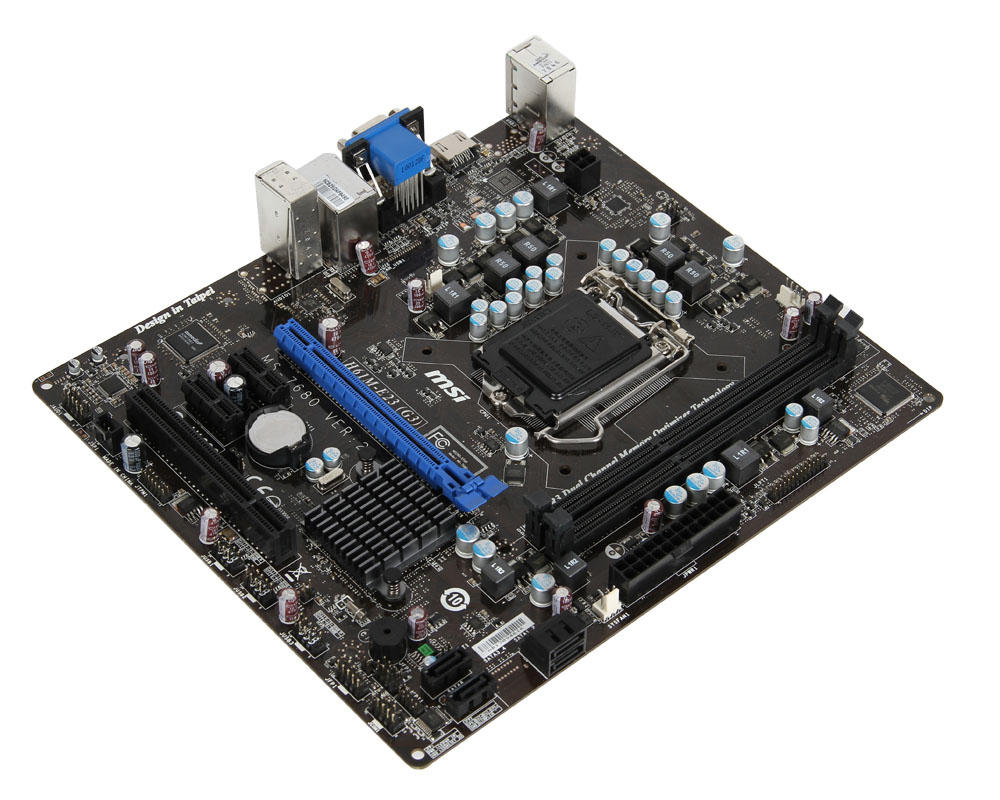

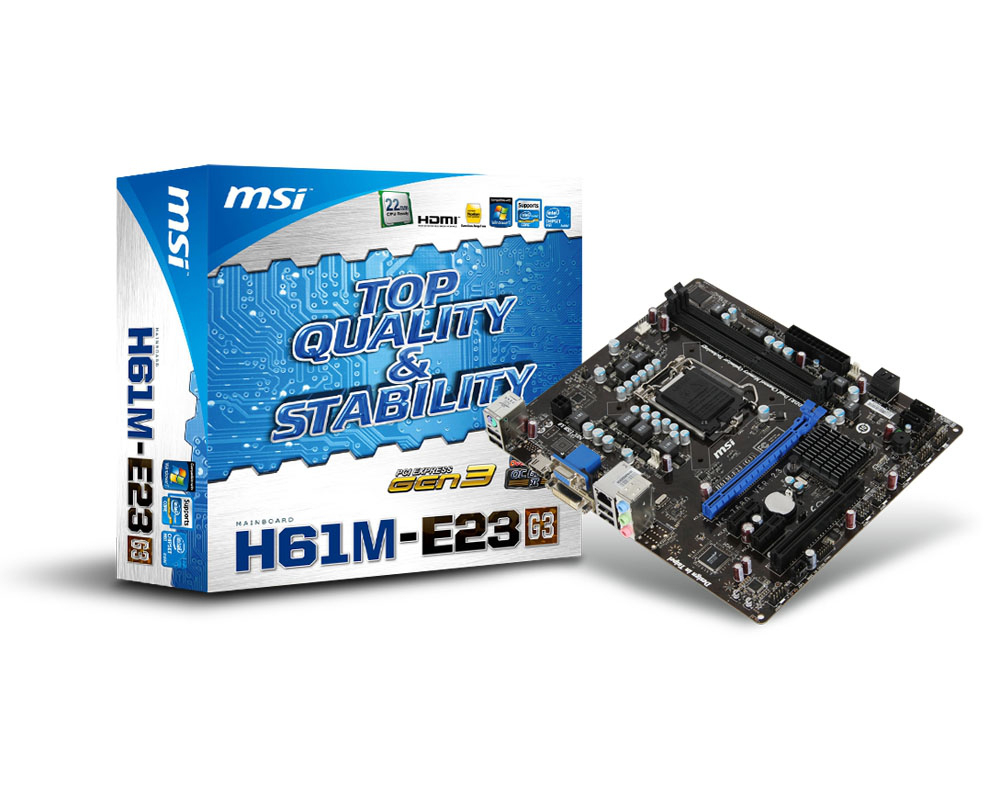

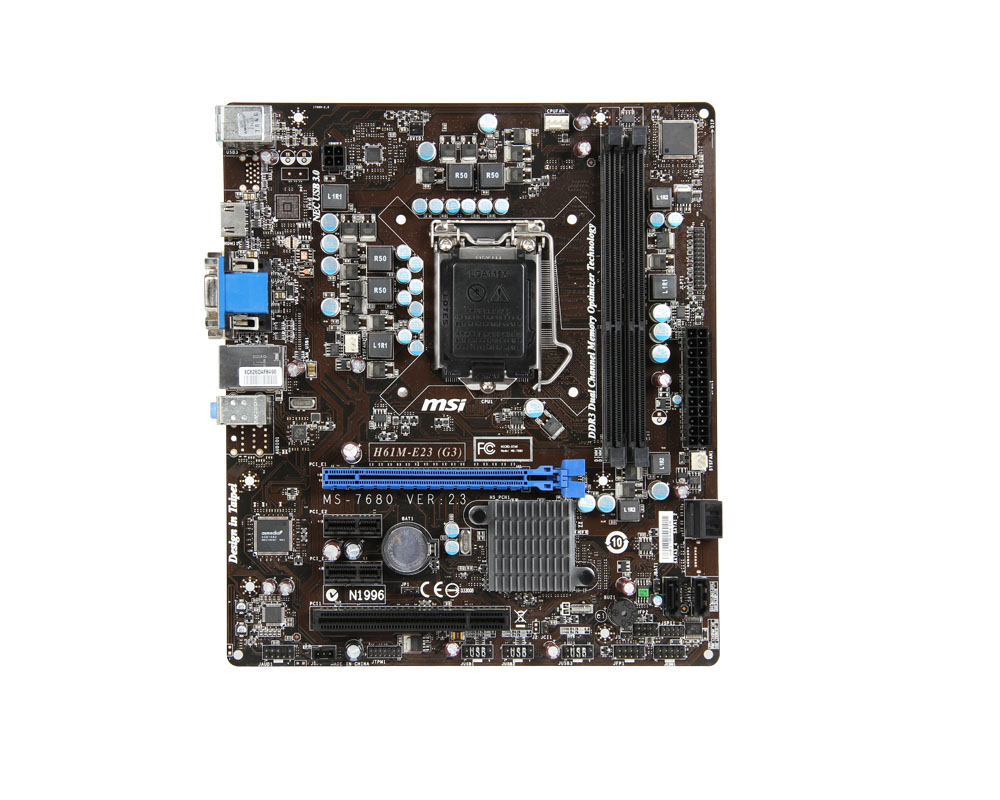

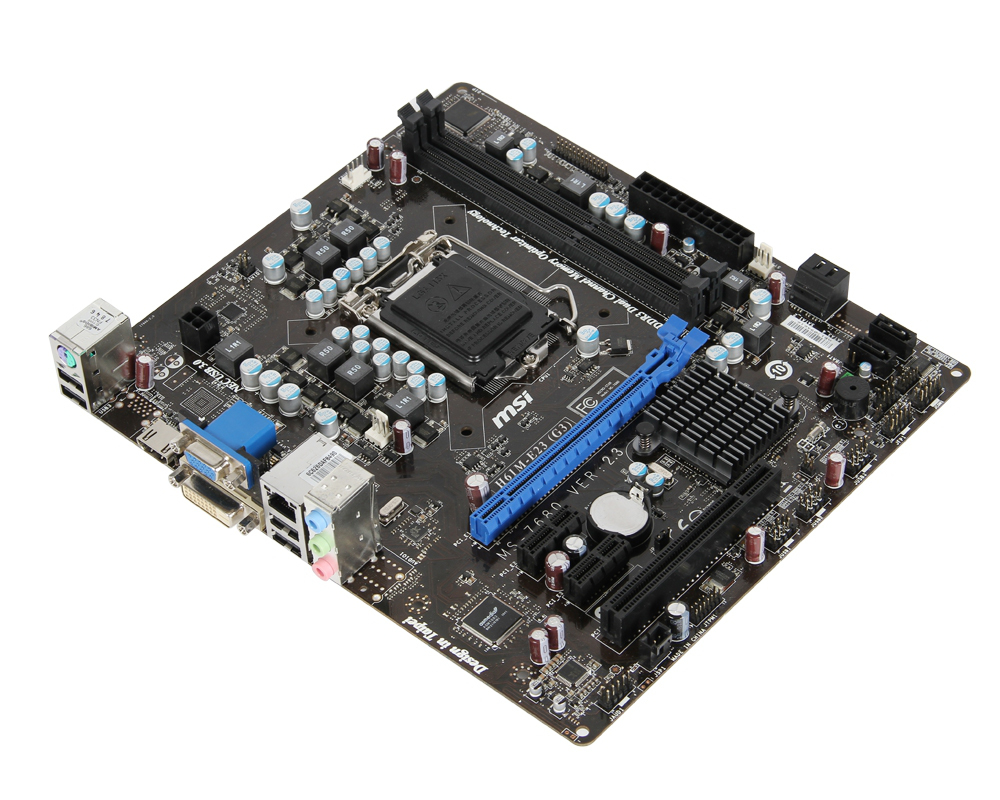

MSI H61M-E23 (G3)

MSI H61M-E23 (G3)

Model H61M-E23 (G3)EAN 816909096460

57 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
H61M-E23 (G3)
Part number
H61M-E23 (G3)
EAN / UPC
816909096460
Also known as
MSI H61M-E23 (G3) motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

57 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyIntel
DirectX version11
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Number of COM connectors1

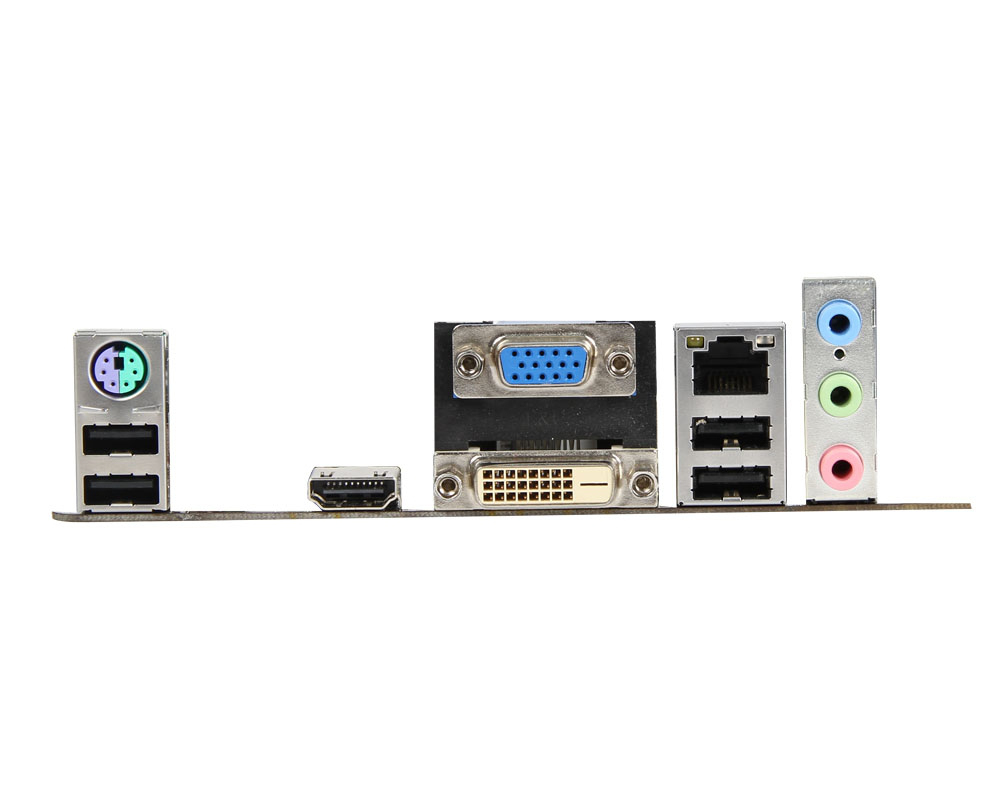

Rear panel I/O ports

USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI Express configurations1x16, 2x1
PCI Express slots version2.0, 3.0
PCI slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width245 mm
Depth215 mm

Packaging content

Drivers includedYes

Other features

Controller interface typeIntel H61(B3)
Quick installation guideYes
