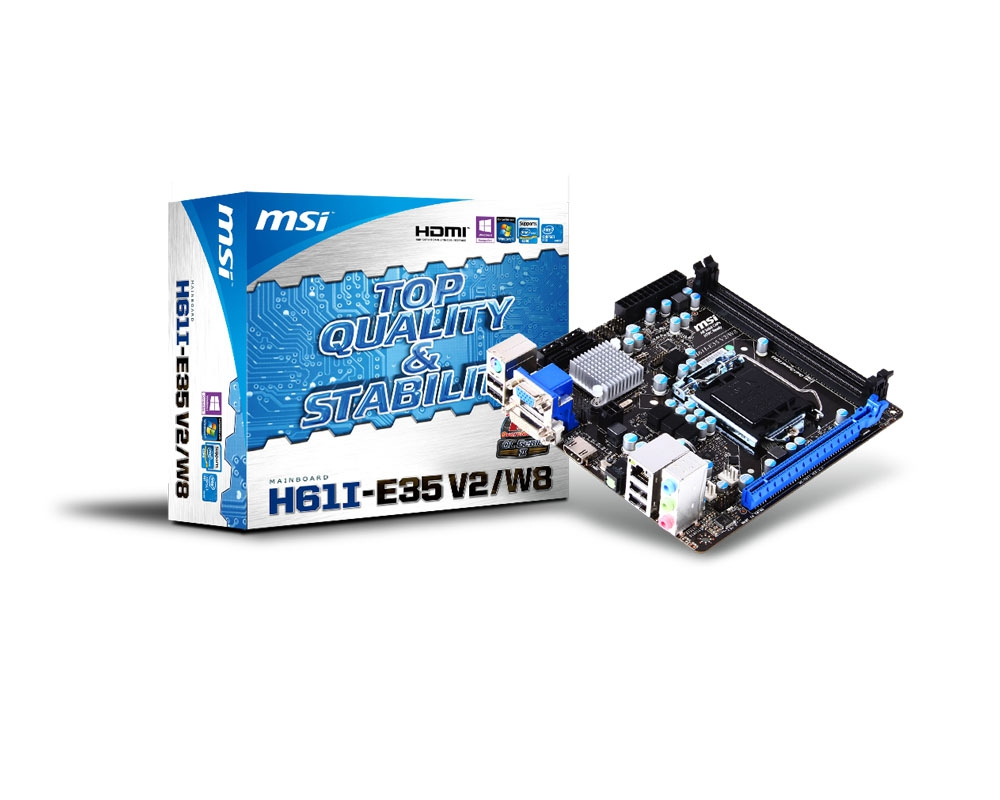

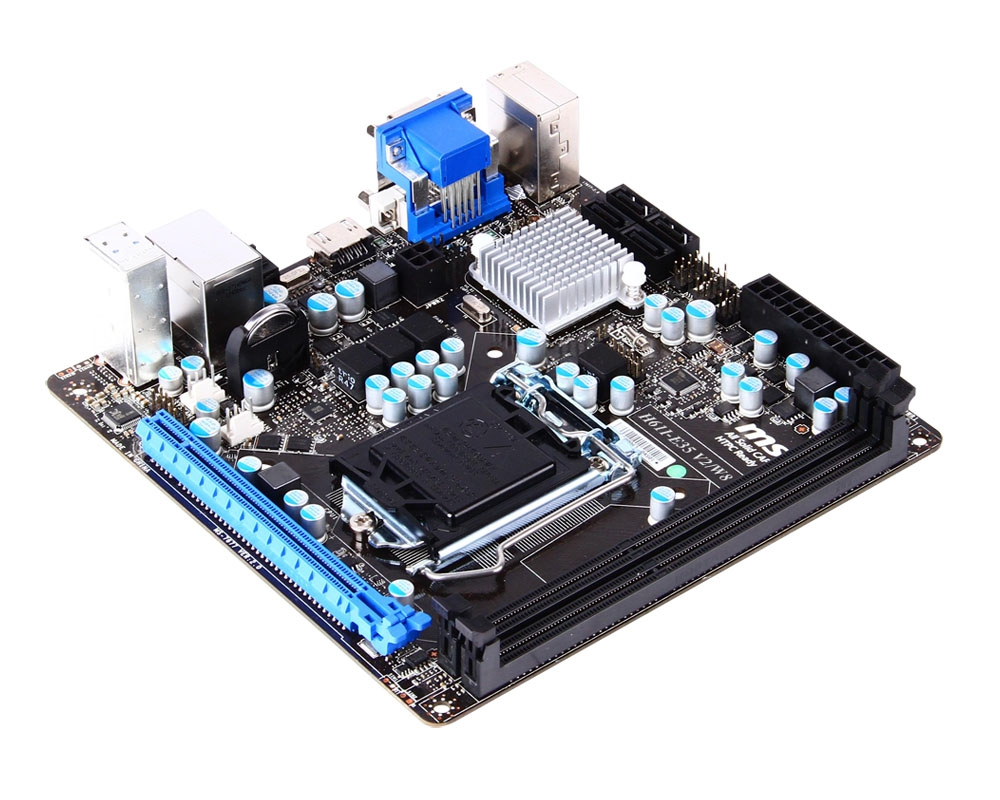

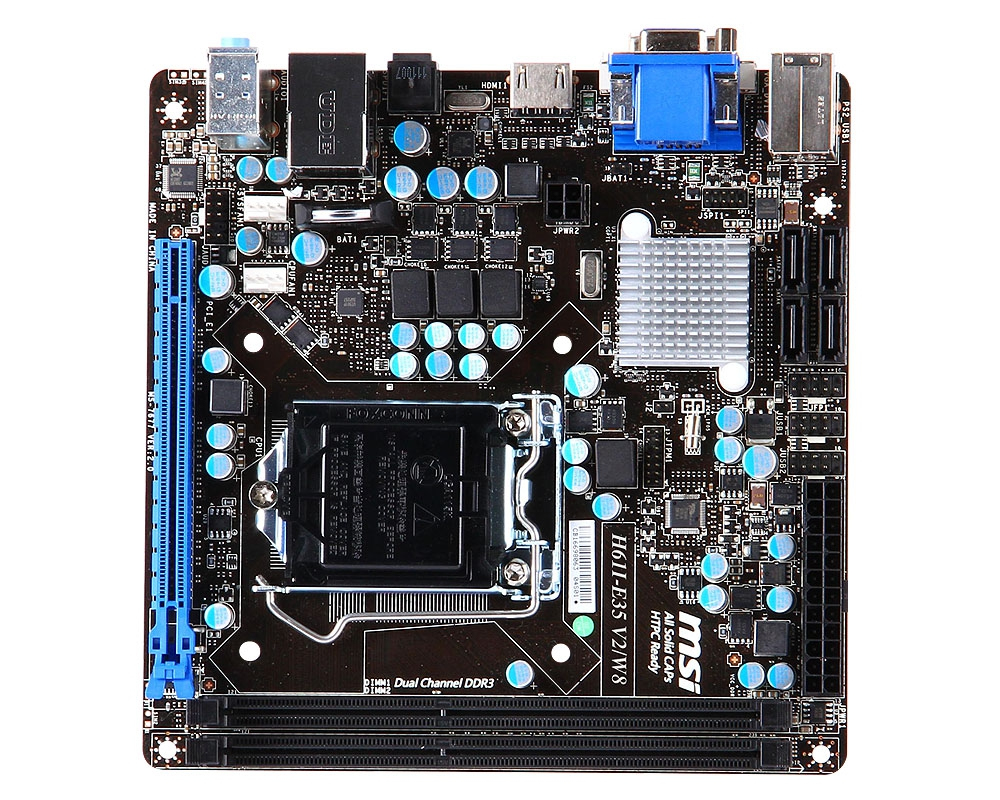

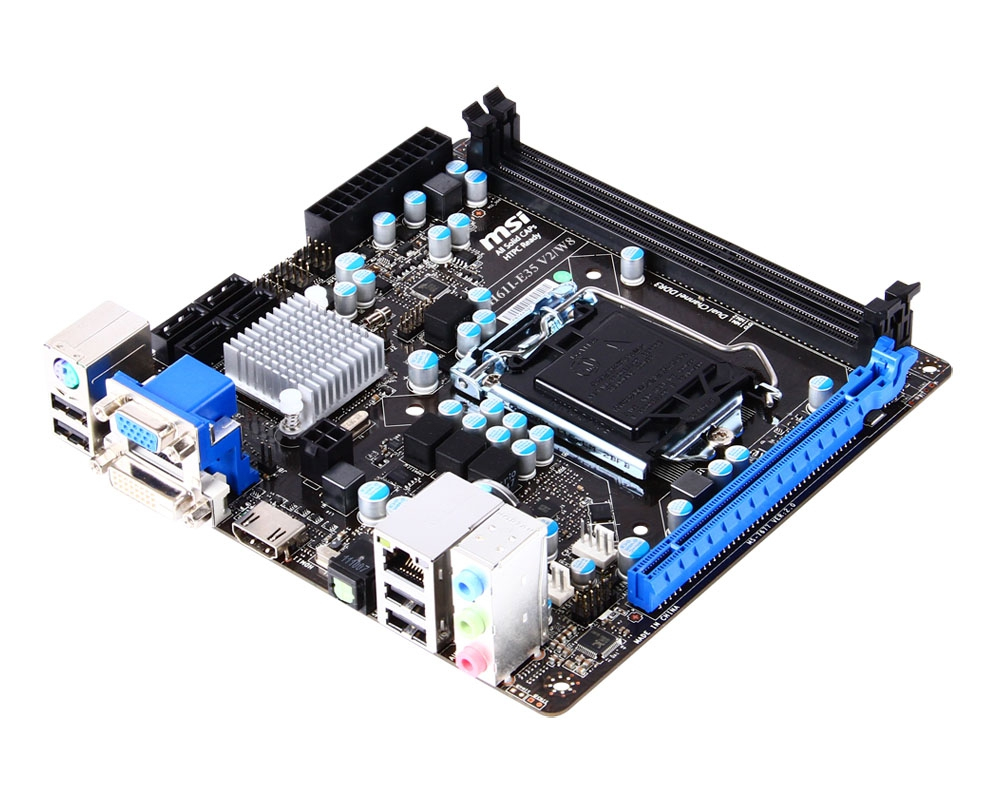

MSI H61I-E35 V2/W8

MSI H61I-E35 V2/W8

Model H61I-E35 V2/W8EAN 4719072292362

58 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Maximum graphics card memory1759 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Maximum graphics card memory
1759 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
H61I-E35 V2/W8
Part number
H61I-E35 V2/W8
EAN / UPC
4719072292362
Also known as
MSI H61I-E35 V2/W8 motherboard Intel® H61 LGA 1155 (Socket H2) mini ITX

Specifications

58 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-2xxx, i3-3xxx, i5-2xxx, i5-3xxx, i7-2xxx, i7-3xxx

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB
Supported memory module capacities8GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Maximum graphics card memory1759 MB
OpenGL version3.1

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Peripheral (Molex) power connectors (4-pin)1
TPM connectorYes

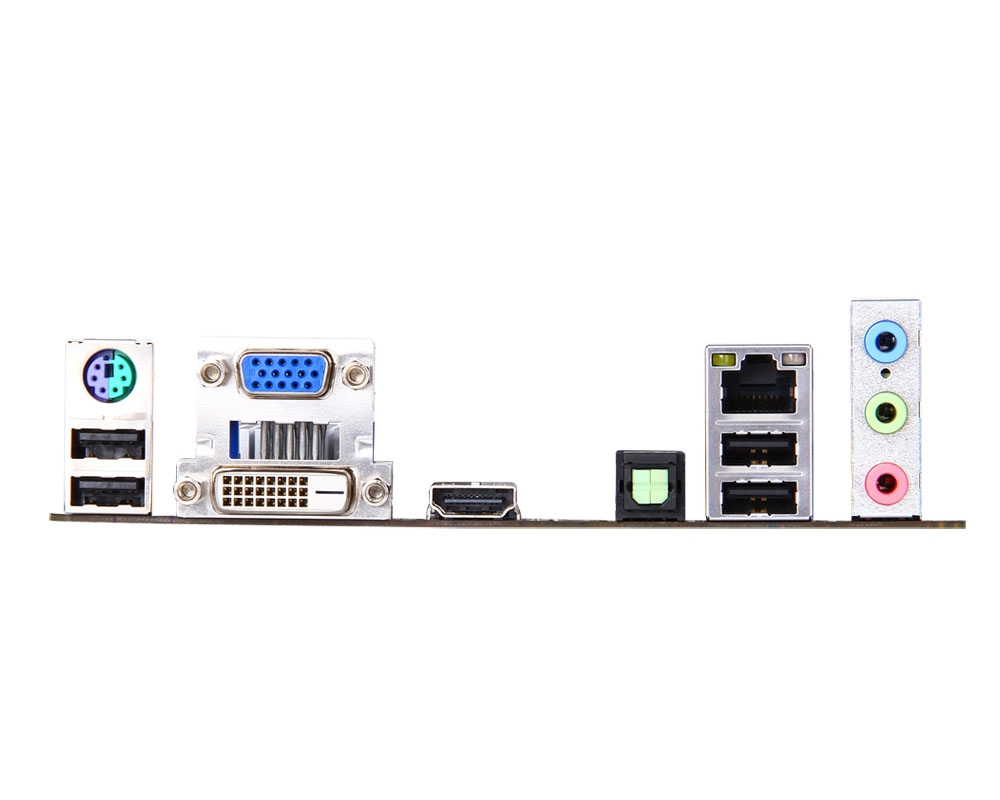

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Wi-FiNo

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Audio output channels5.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi

Expansion slots

PCI Express x16 slots1
PCI Express slots version3.0

BIOS

BIOS typeEFI
Clear CMOS jumperYes

Weight & dimensions

Width170 mm
Depth170 mm

Other features

Quick installation guideYes
