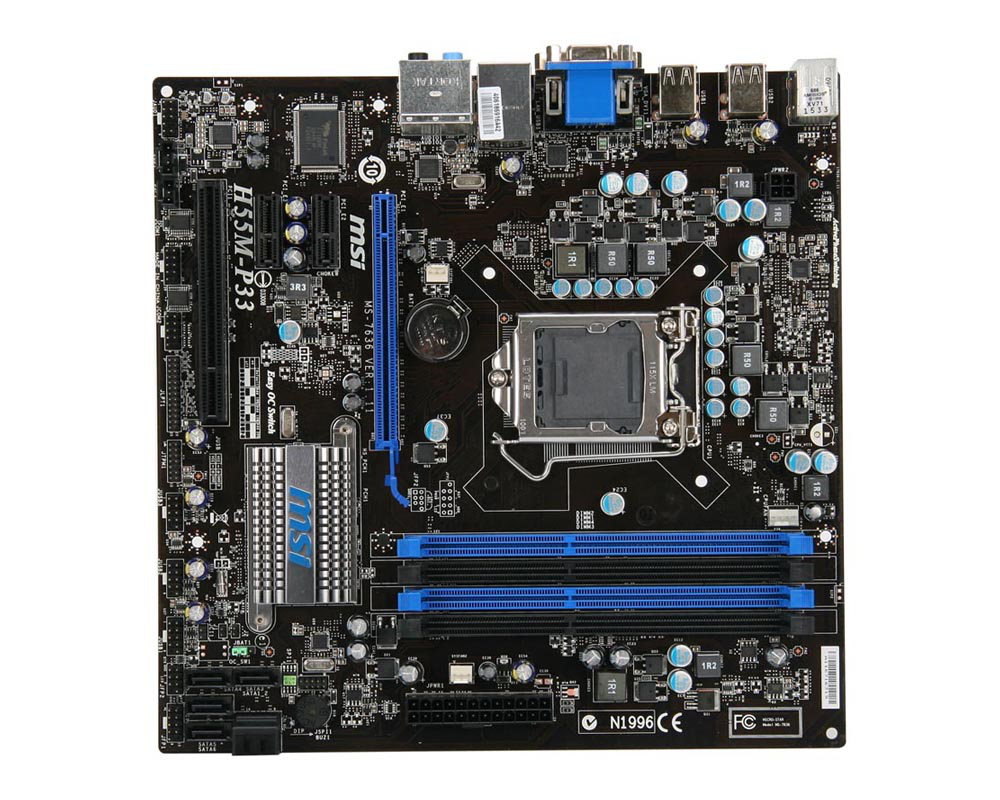

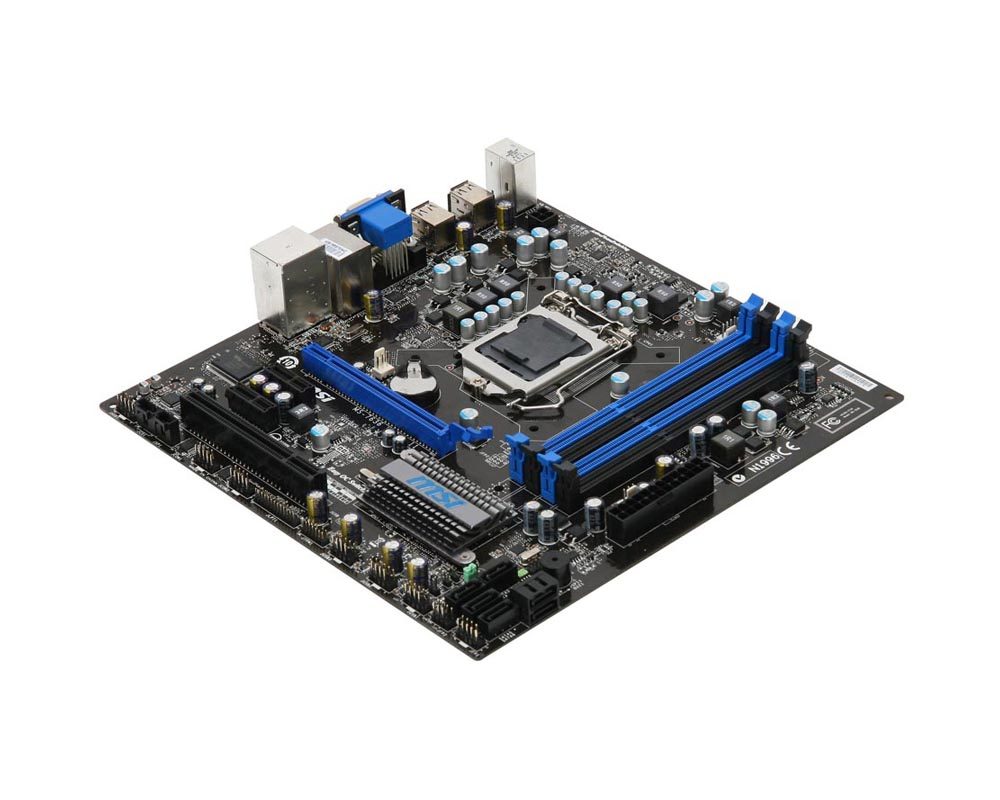

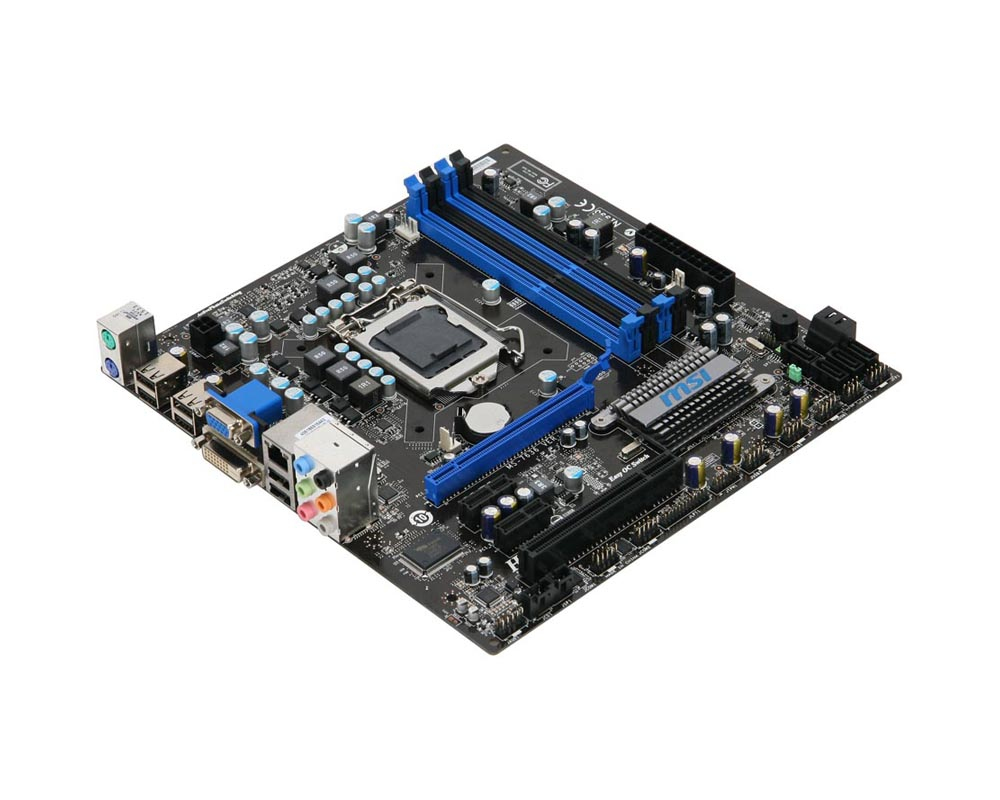

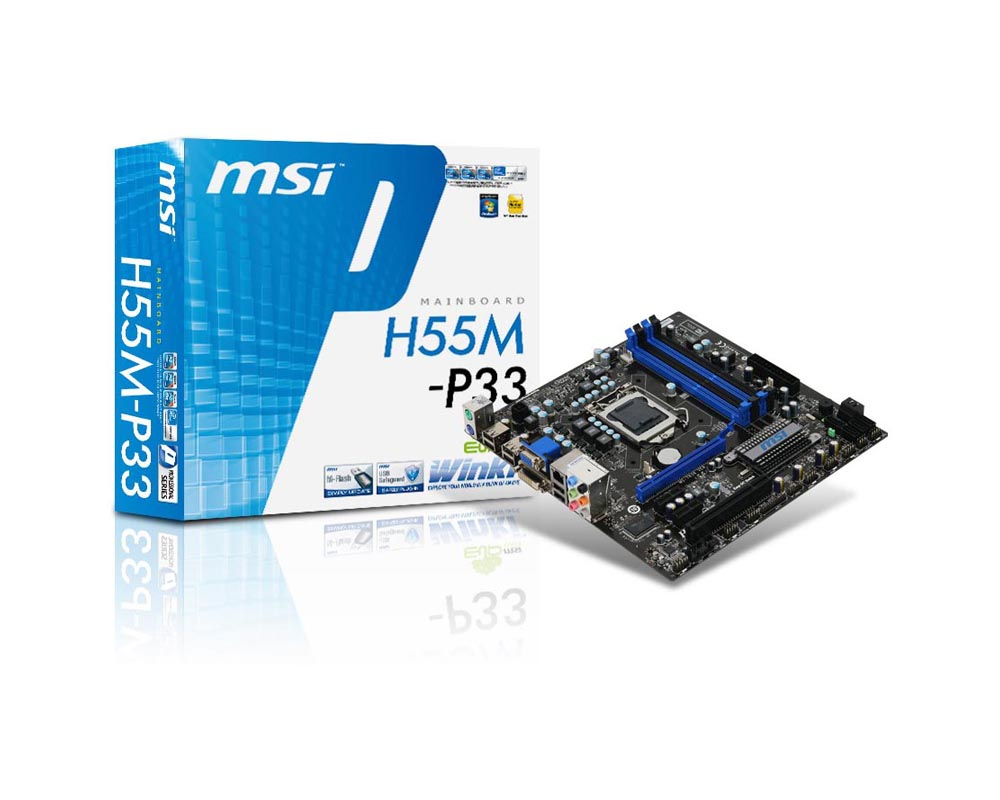

MSI H55M-P33 micro ATX
Model H55M-P33Part no. 7636-020REAN 4719072162016
31 specifications
- Number of memory slots4
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- Motherboard form factormicro ATX
- PCI Express x1 slots2
Overview
- Number of memory slots
- 4
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Motherboard form factor
- micro ATX
- PCI Express x1 slots
- 2
- Brand
- MSI
- Category
- Motherboard
- Model
- H55M-P33
- Part numbers
- 7636-020R, 7636 -020R, H55M-P33
- EAN / UPC
- 4719072162016, 816909071399
- Also known as
- MSI H55M-P33 micro ATX
Specifications
31 specifications in 8 groups
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Supported memory clock speeds | 1066,1333,1600,2133 MHz |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |

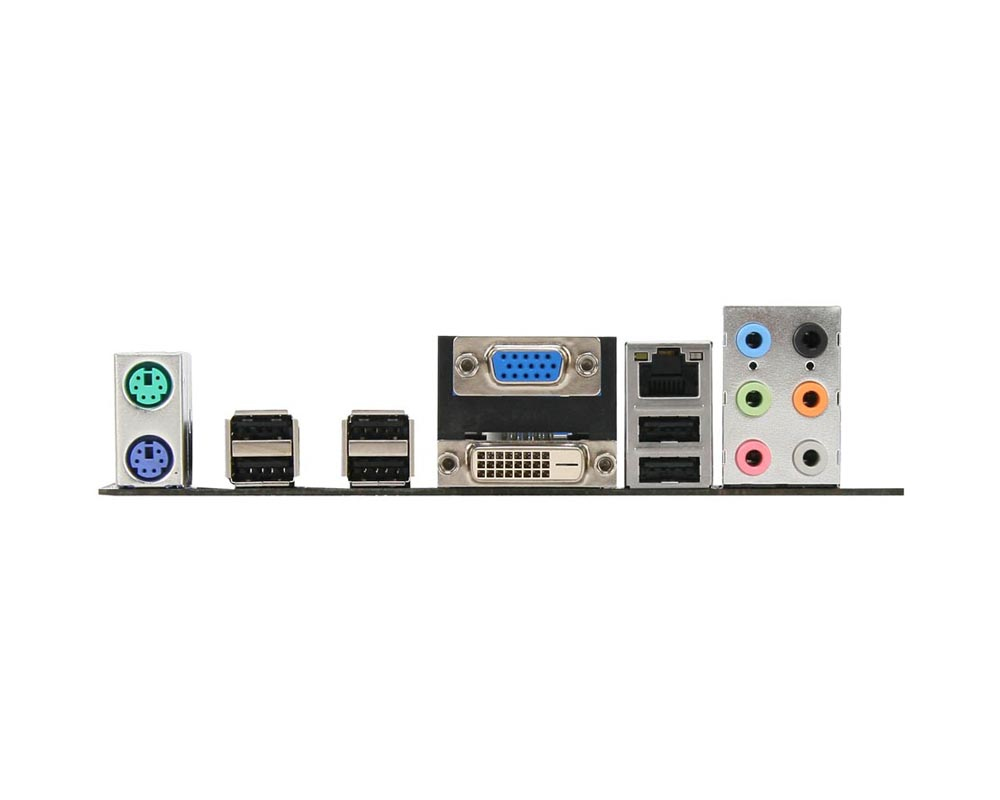

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 6.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 244 mm |
