MSI H55M-ED55 LGA 1156 (Socket H) micro ATX
Model H55M-ED55Part no. H55M-ED55 WIFIEAN 4719072160364
36 specifications
- Processor manufacturerIntel
- Number of memory slots4
- On-board graphics cardYes
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111DL
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- On-board graphics card
- Yes
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111DL
- Brand
- MSI
- Category
- Motherboard
- Model
- H55M-ED55
- Part numbers
- H55M-ED55 WIFI, H55M-ED55, 7635-030R, H55MED55, 7635-010R, H55-ED55
- EAN / UPC
- 4719072160364, 4719072152659, 816909068436
- Also known as
- MSI H55M-ED55 LGA 1156 (Socket H) micro ATX
Specifications
36 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |

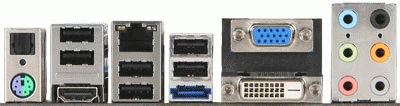

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111DL |
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
What people say
Reviews & ratings
MSI H55M-ED55 LGA 1156 (Socket H) micro ATX
No reviews yet
Be the first to tell others how MSI H55M-ED55 LGA 1156 (Socket H) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI H55M-ED55 LGA 1156 (Socket H) micro ATX

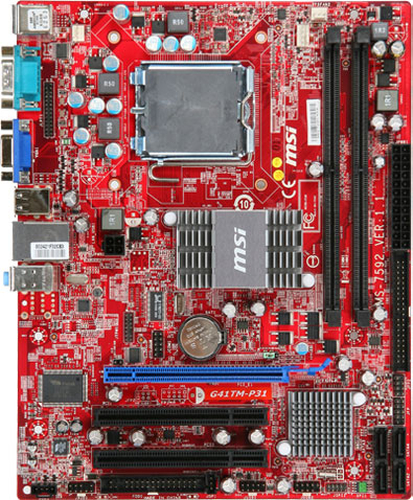

All motherboard comparisons- MSI H55M-ED55 LGA 1156 (Socket H) micro ATX vsMSI G41TM-P31 motherboard LGA 775 (Socket T) micro ATXCompare specs
