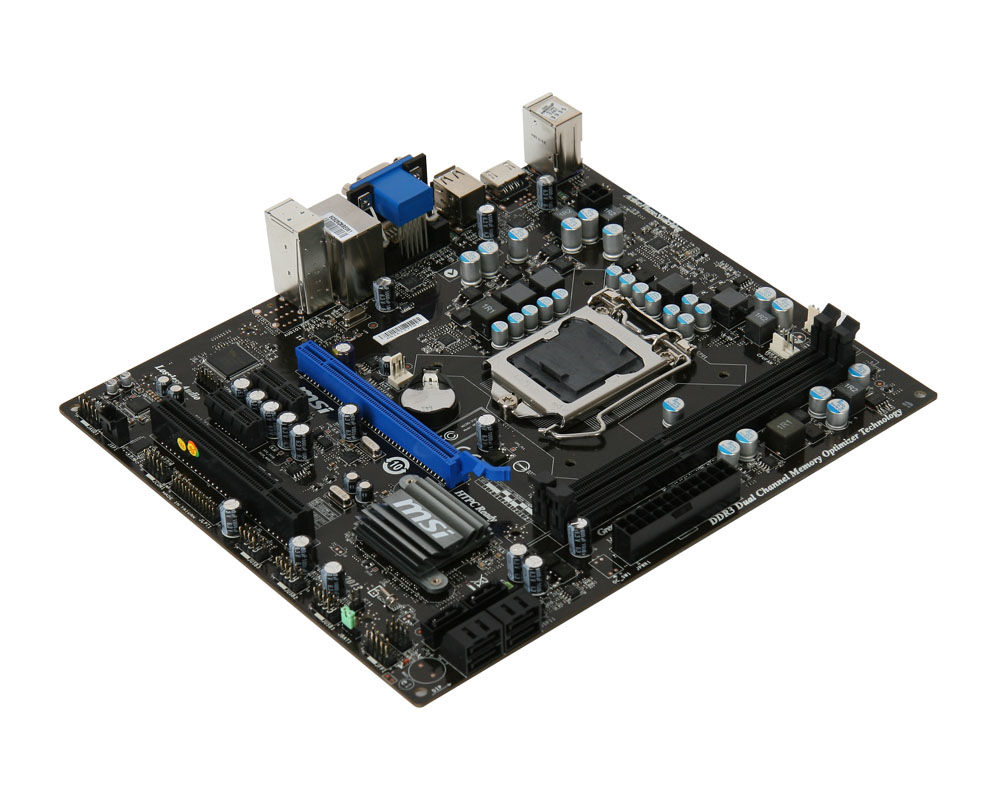

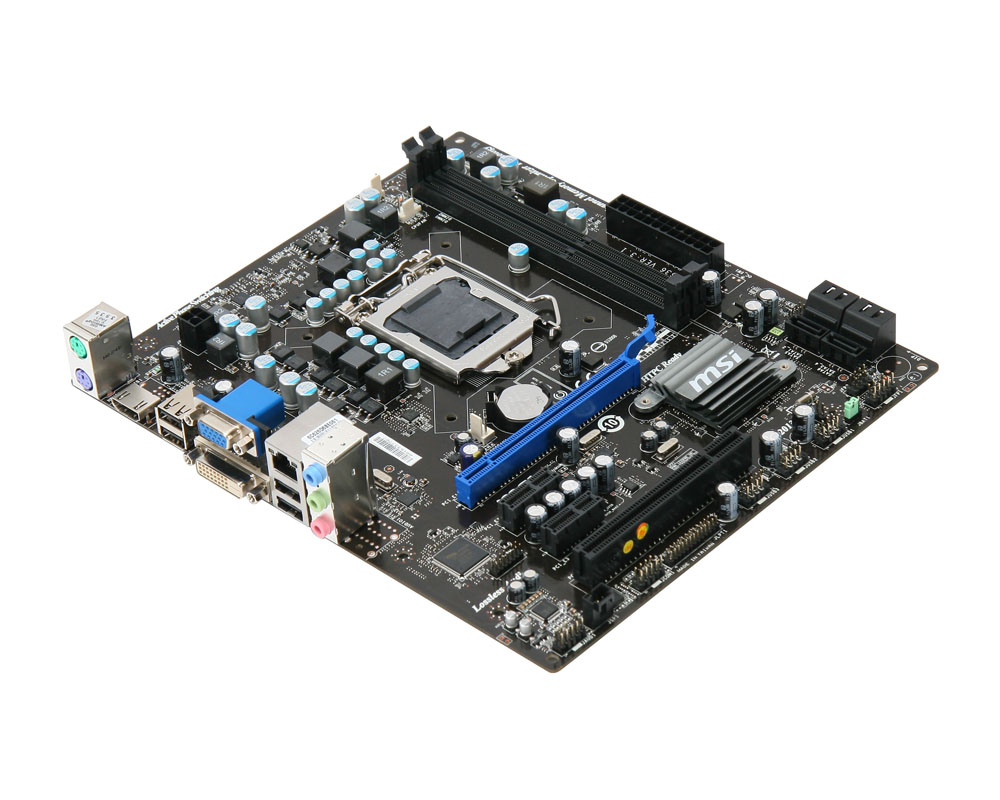

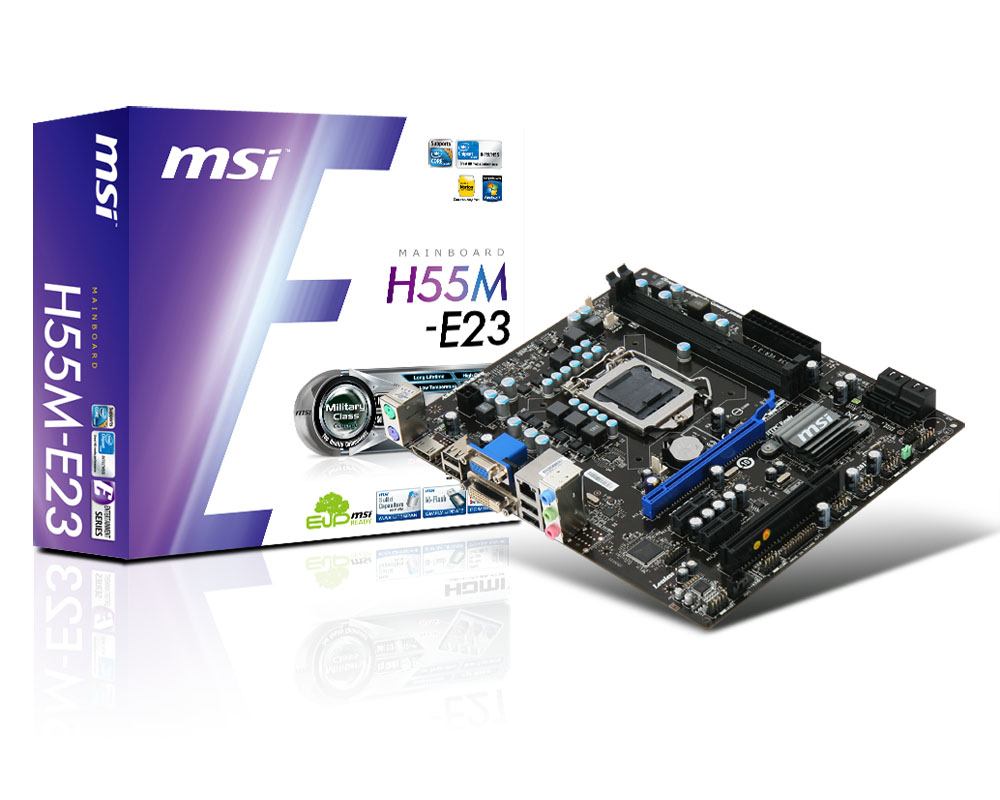

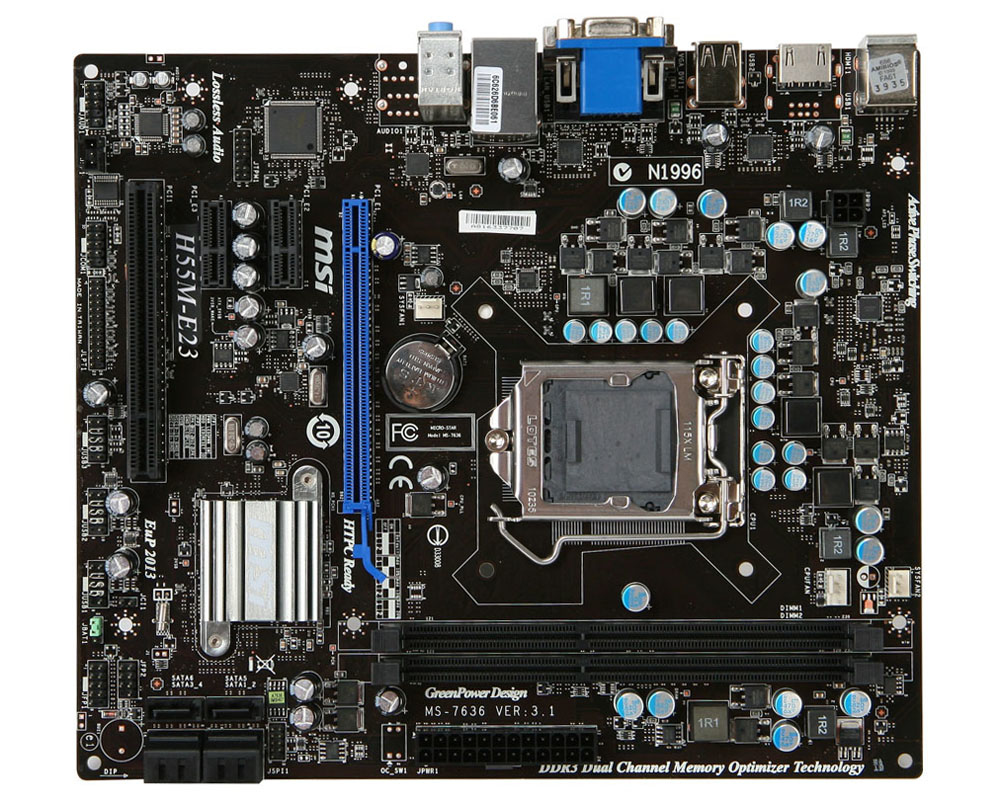

MSI H55M-E23 LGA 1156 (Socket H) micro ATX
Model H55M-E23Part no. 7636-040REAN 4719072189549
35 specifications
- Processor socketLGA 1156 (Socket H)
- Number of memory slots2
- Maximum graphics card memory512 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity4
- Networking featuresRealtek 8111E
Overview
- Processor socket
- LGA 1156 (Socket H)
- Number of memory slots
- 2
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Networking features
- Realtek 8111E
- Brand
- MSI
- Category
- Motherboard
- Model
- H55M-E23
- Part numbers
- 7636-040R, H55M-E23
- EAN / UPC
- 4719072189549
- Also known as
- MSI H55M-E23 LGA 1156 (Socket H) micro ATX
Specifications
35 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |

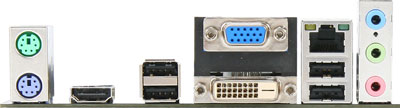

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8111E |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 245 mm |
