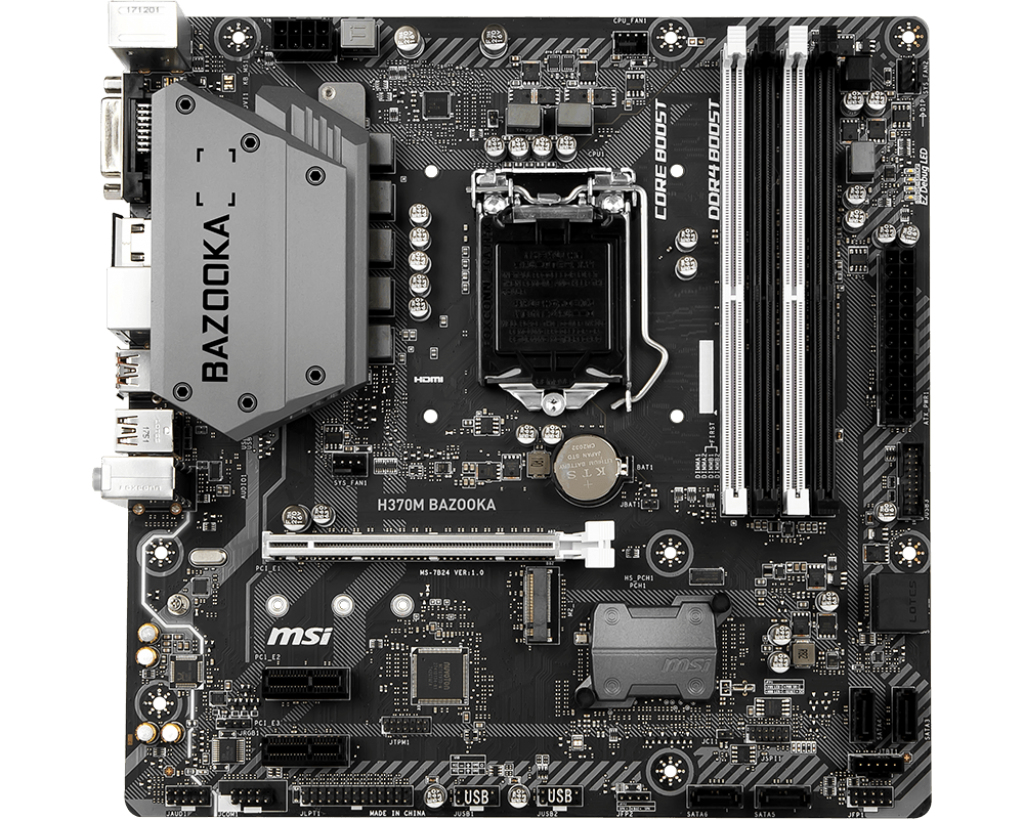

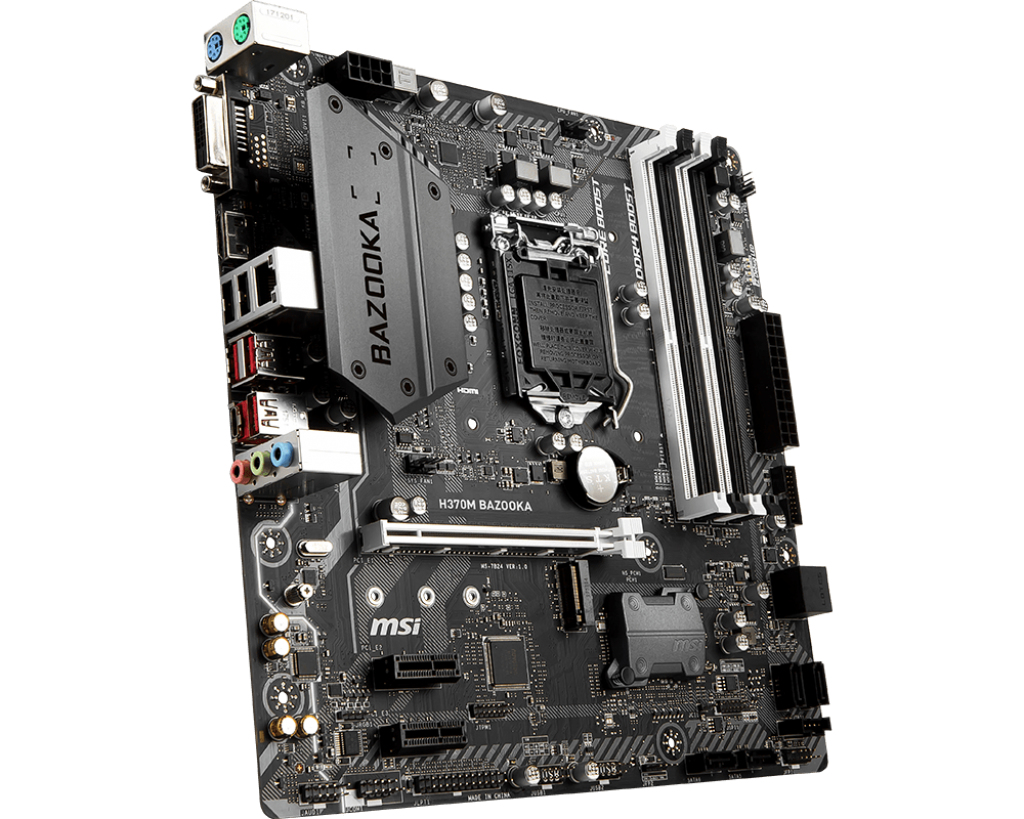

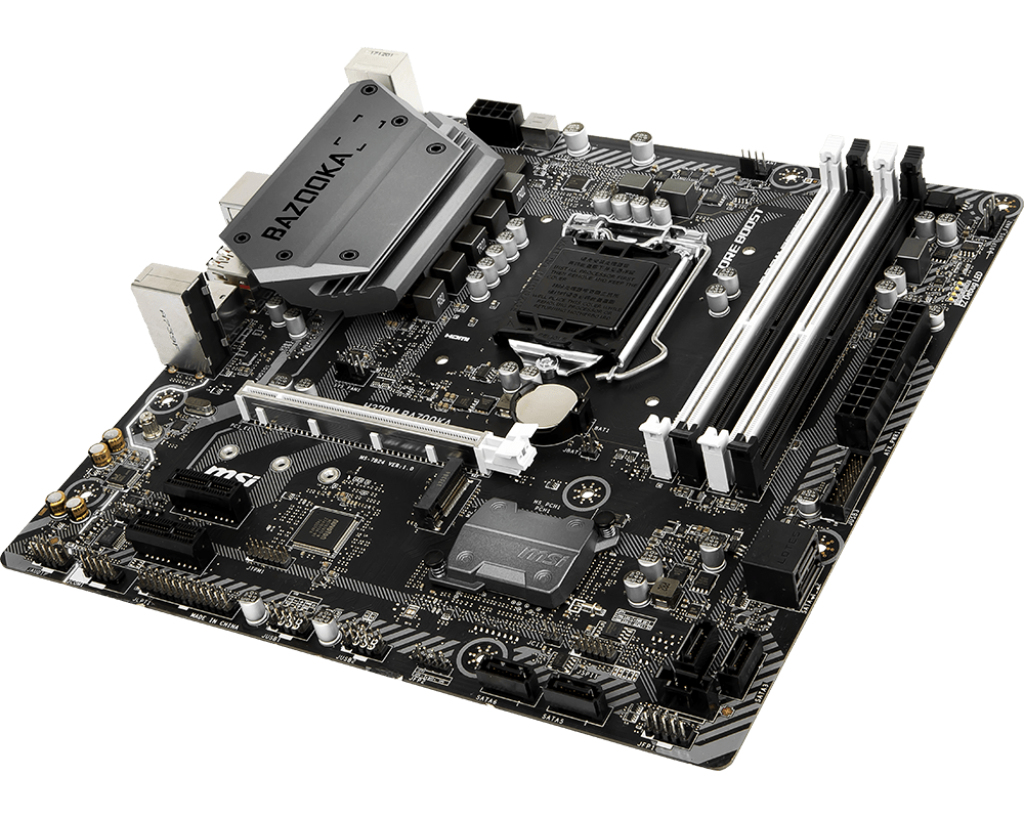

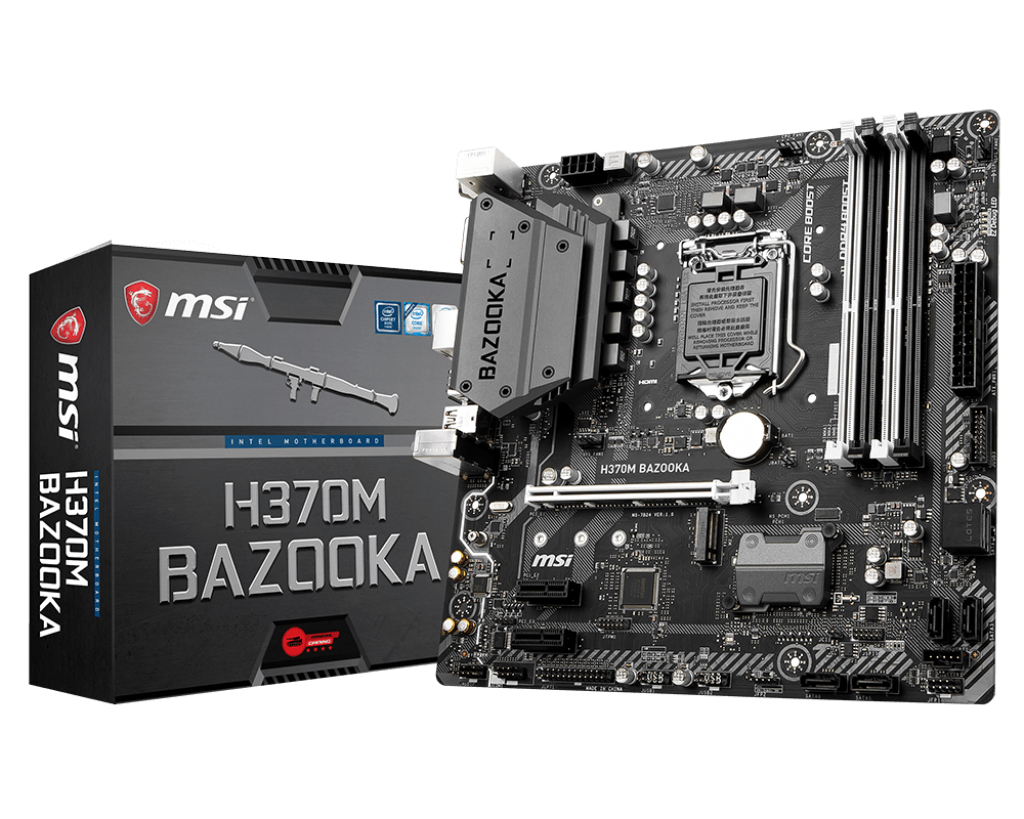

MSI H370M BAZOOKA

MSI H370M BAZOOKA

Model H370M BAZOOKAPart no. 7B24-002REAN 824142159484

64 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
MSI
Category
Motherboard
Model
H370M BAZOOKA
Part numbers
7B24-002R, H370M BAZOOKA
EAN / UPC
824142159484, 4719072562878
Also known as
MSI H370M BAZOOKA Intel® H370 LGA 1151 (Socket H4) micro ATX

Specifications

64 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory64 GB
Supported memory module capacities16GB

Storage controllers

Supported storage drive typesHDD & SSD
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

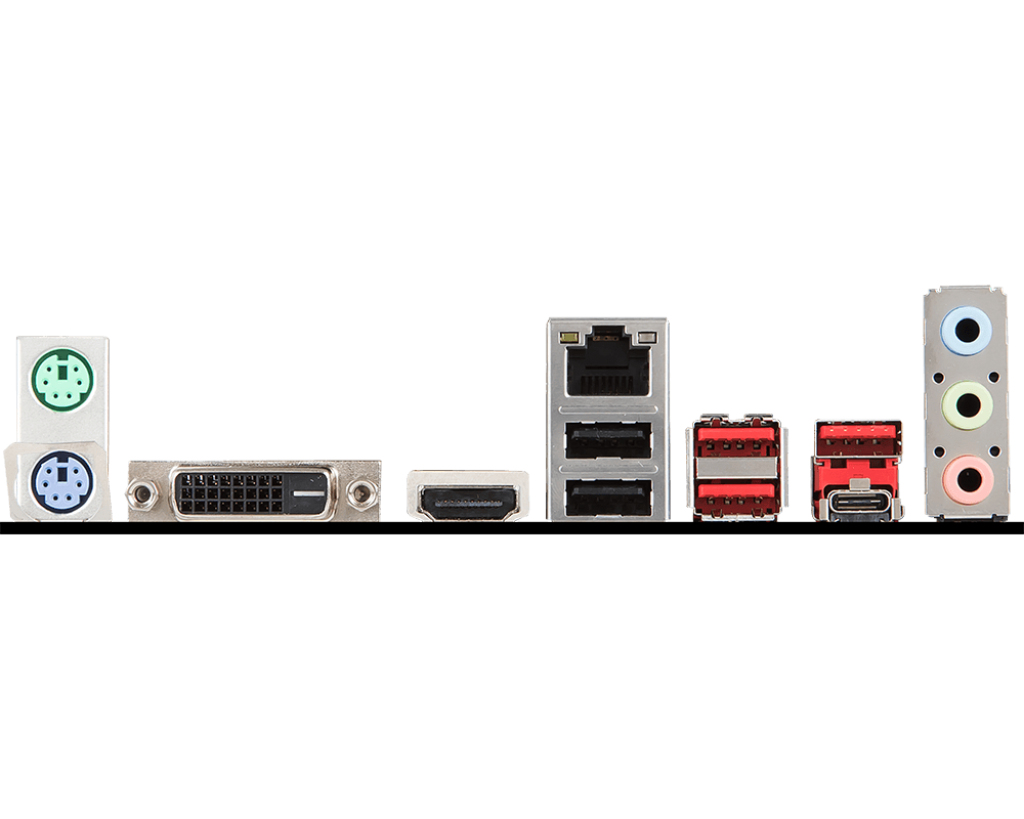

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
LAN controllerRealtek 8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H370
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes

Processor special features

Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes

Other features

Parallel port via internal headerYes
Quick installation guideYes
Serial port via internal headerYes
