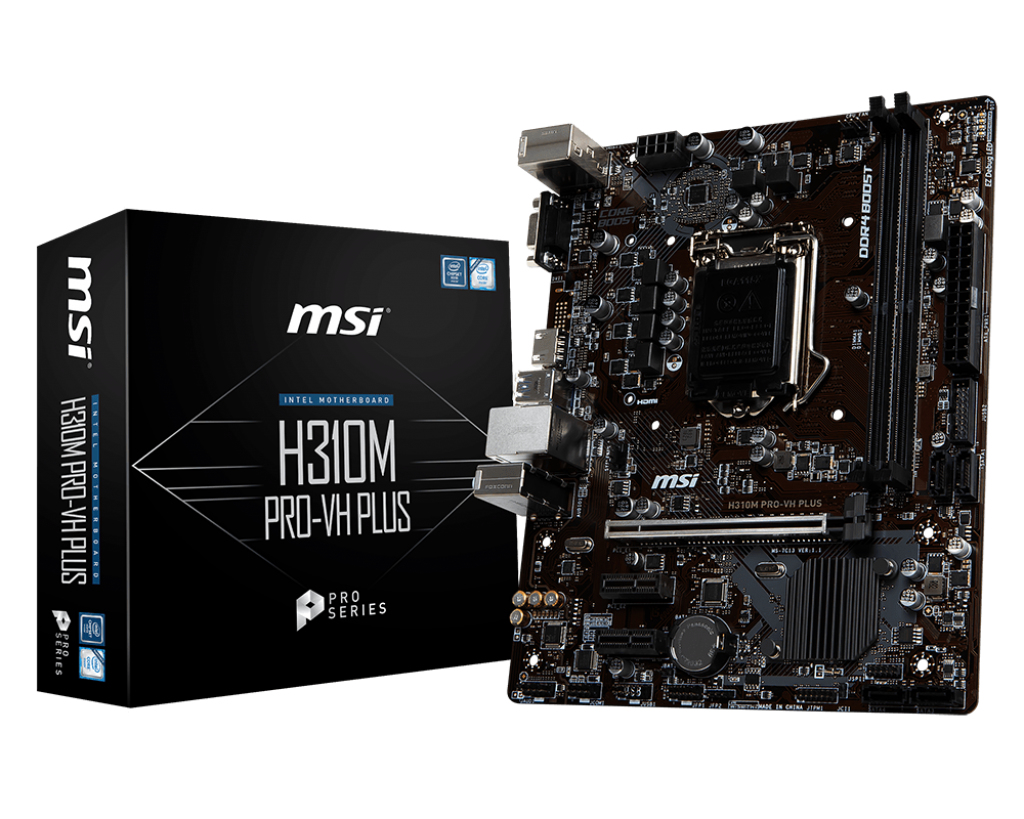

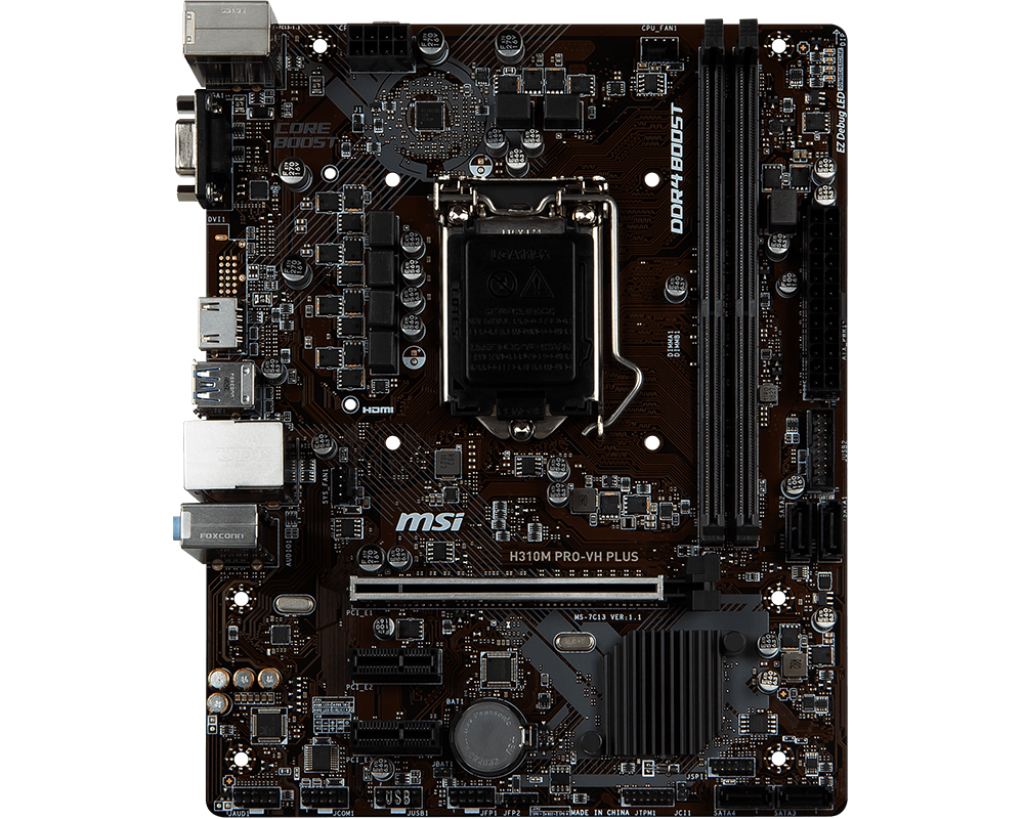

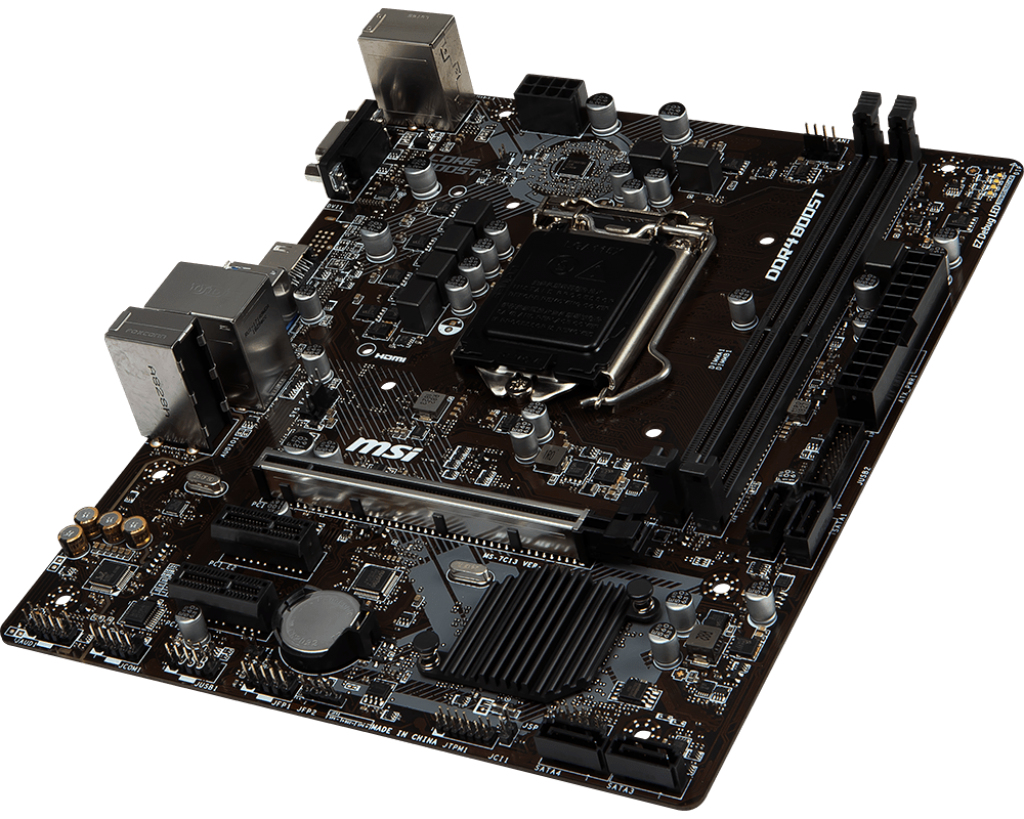

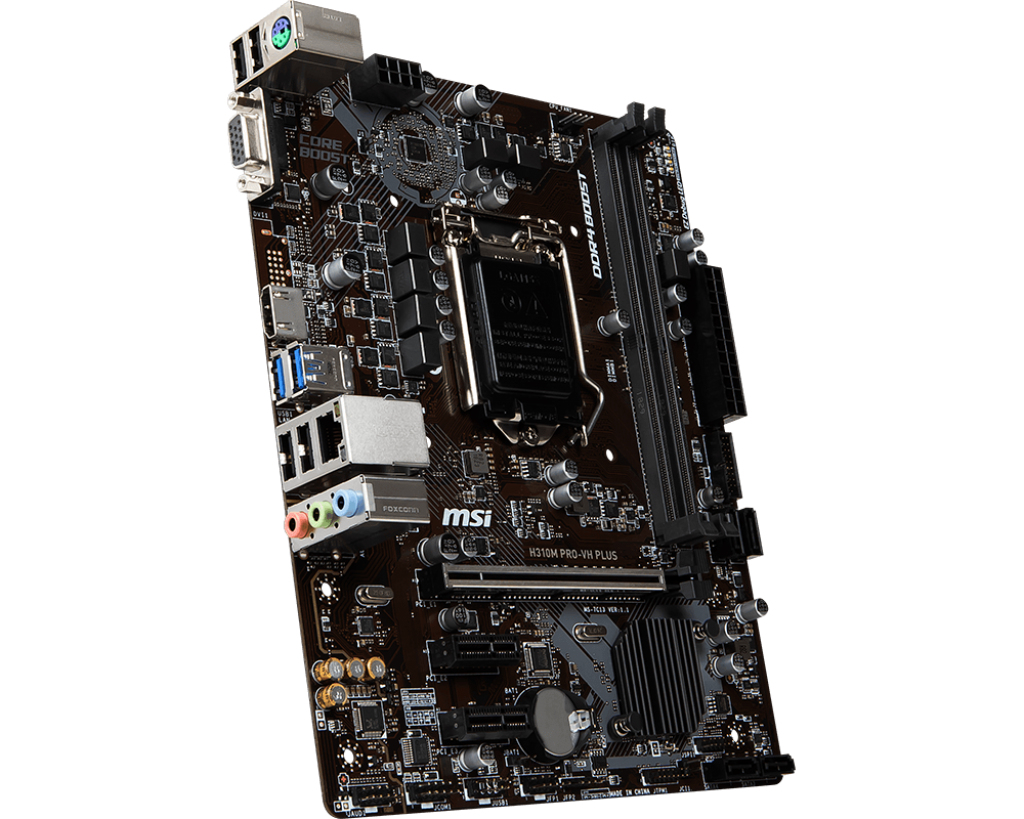

MSI H310M PRO-VH PLUS

MSI H310M PRO-VH PLUS

Model H310M PRO-VH PLUSEAN 4719072587123

60 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
H310M PRO-VH PLUS
Part numbers
H310M PRO-VH PLUS, 7C13-002R, 4719072587123
EAN / UPC
4719072587123
Also known as
MSI H310M PRO-VH PLUS motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX

Specifications

60 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Graphics

Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
12V power connectorYes
Serial port headers1
TPM connectorYes

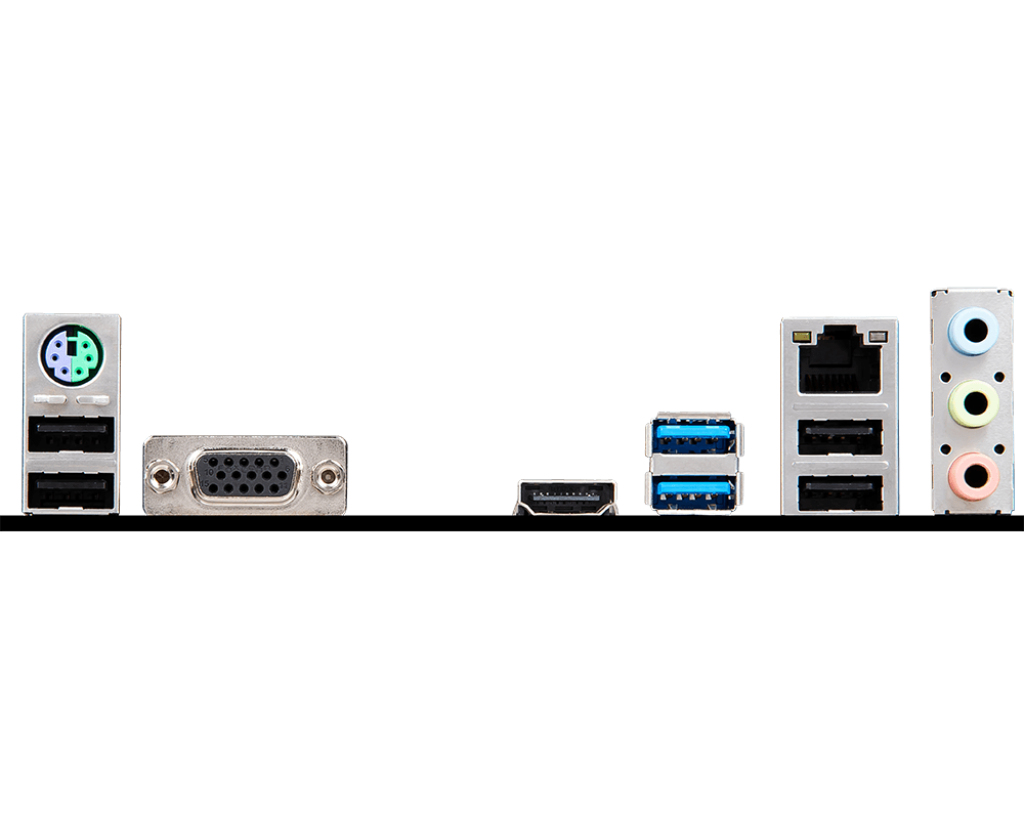

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H310
Audio chipRealtek ALC887
Audio output channels7.1 channels
Number of mounting holes6
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width226 mm
Depth185 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes
