MSI H310M PRO-VDH PLUS

MSI H310M PRO-VDH PLUS

Model H310M PRO-VDH PLUSEAN 824142168592

75 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
H310M PRO-VDH PLUS
Part number
H310M PRO-VDH PLUS
EAN / UPC
824142168592, 4719072587116
Also known as
MSI H310M PRO-VDH PLUS motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX

Specifications

75 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Maximum number of SMP processors1
Intel Core i3/i5/i7/i9 seriesi3-8xxx, i5-8xxx, i7-8xxx
Supported processor socketsLGA 1151 (Socket H4)

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesSATA III

Graphics

Graphics card familyIntel
Maximum resolution4096 x 2160 pixels
HDCPYes
Number of displays supported2

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

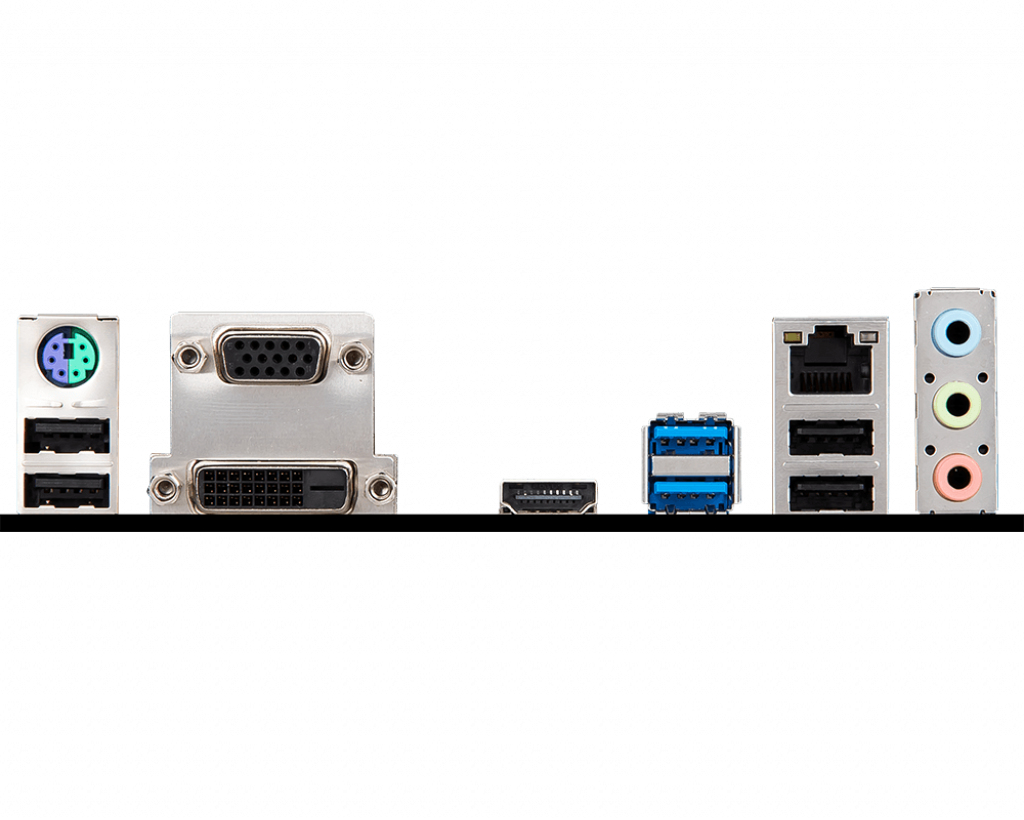

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H310
Audio chipRealtek ALC887
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX
Number of mounting holes6
Windows operating systems supportedWindows 10

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel Rapid Storage TechnologyYes

Weight & dimensions

Width226 mm
Depth185 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes

Other features

Quick installation guideYes
