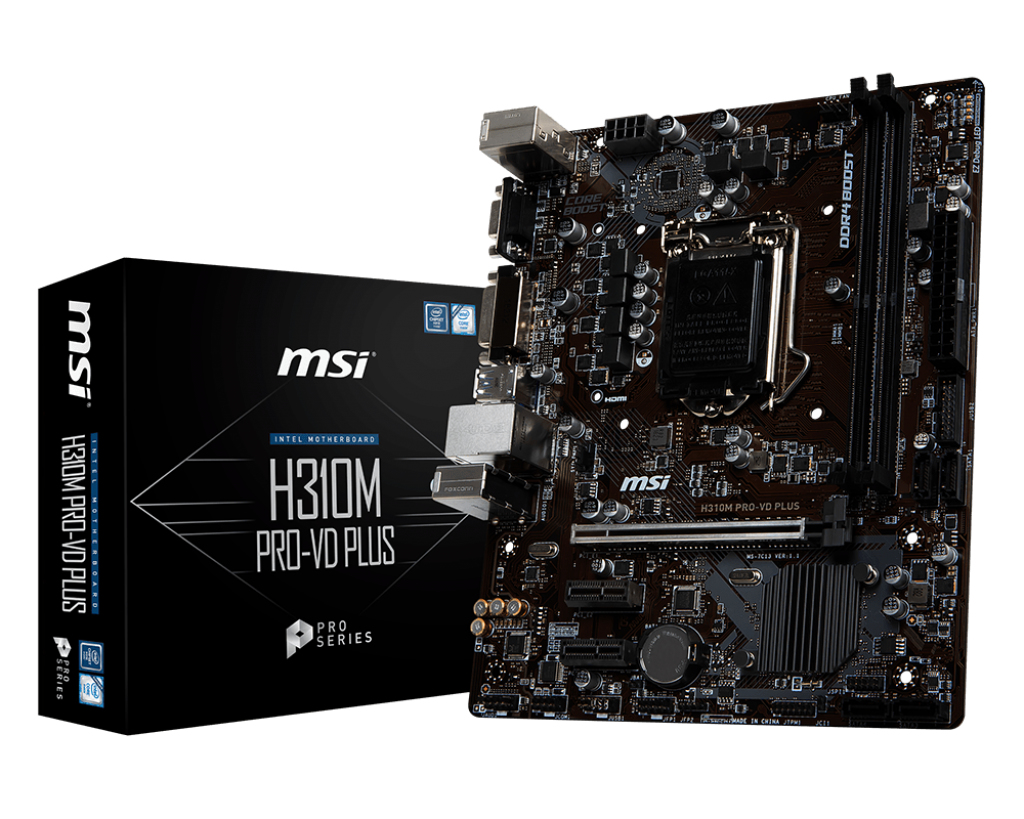

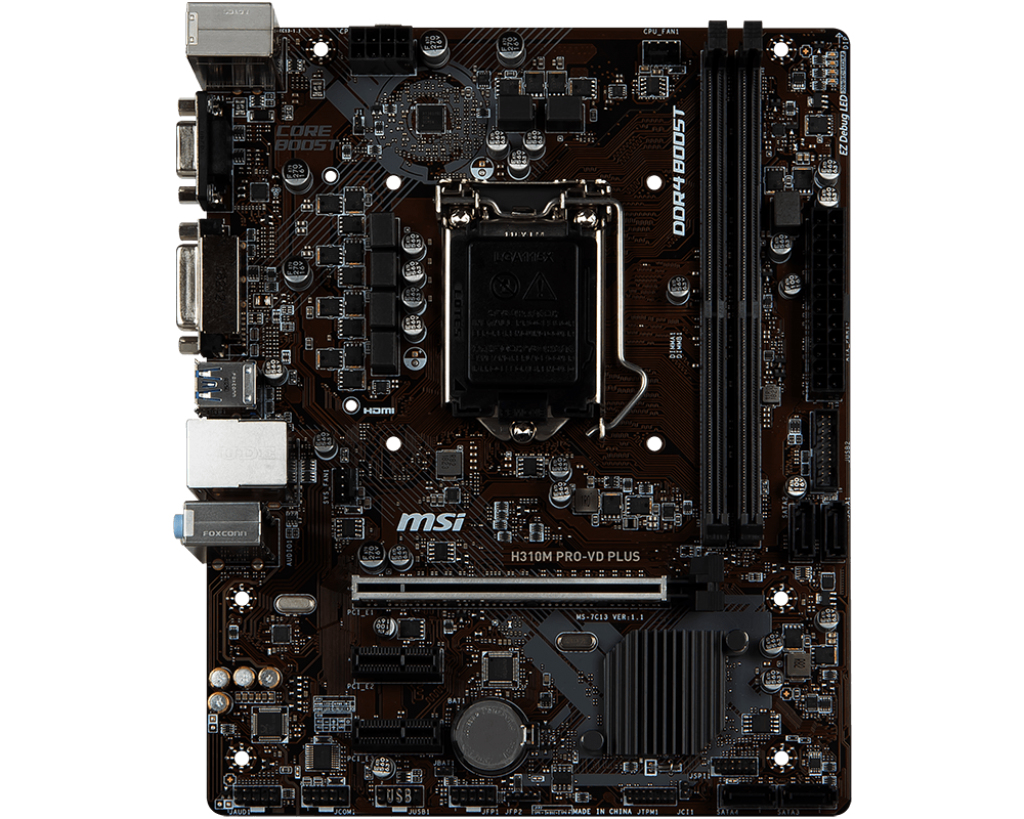

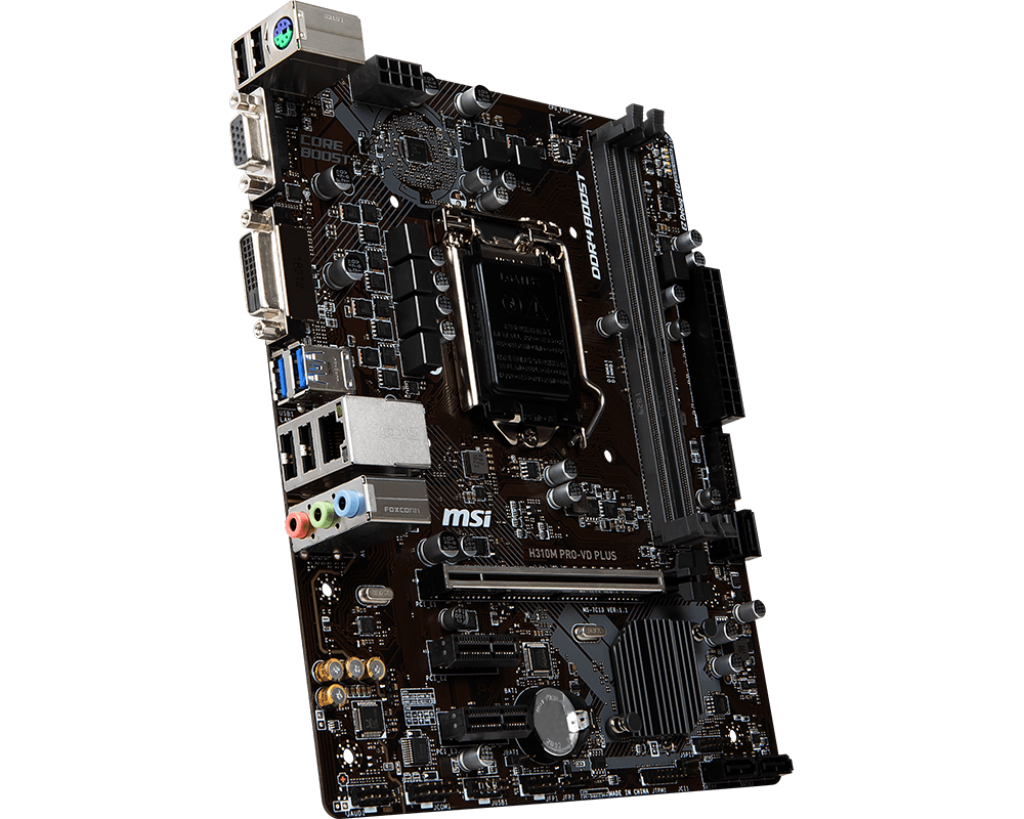

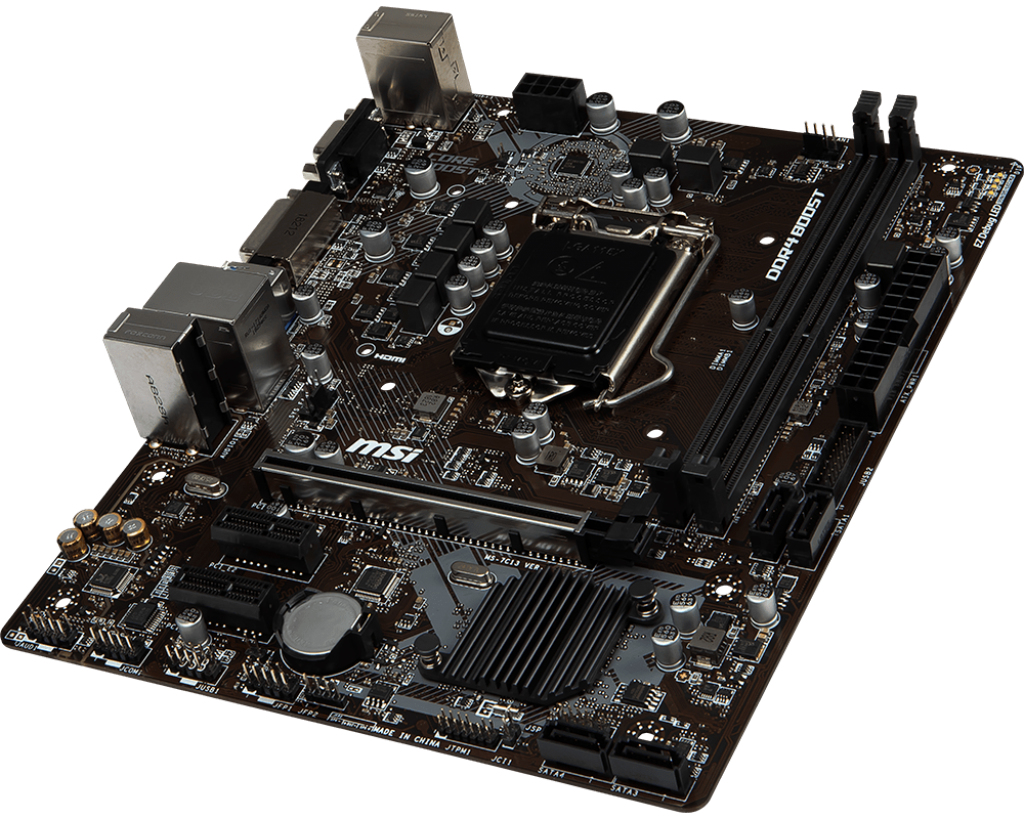

MSI H310M PRO-VD PLUS

MSI H310M PRO-VD PLUS

Model H310M PRO-VD PLUS

61 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • On-board graphics cardYes
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
On-board graphics card
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Component for
PC
Brand
MSI
Category
Motherboard
Model
H310M PRO-VD PLUS
Part numbers
H310M PRO-VD PLUS, 911-7C13-003, 4719072595852, 7C13-003R
Also known as
MSI H310M PRO-VD PLUS motherboard Intel® H310M LGA 1151 (Socket H4) micro ATX

Specifications

61 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Graphics

On-board graphics cardYes
Maximum resolution2048 x 1536 pixels
DirectX version12.0
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

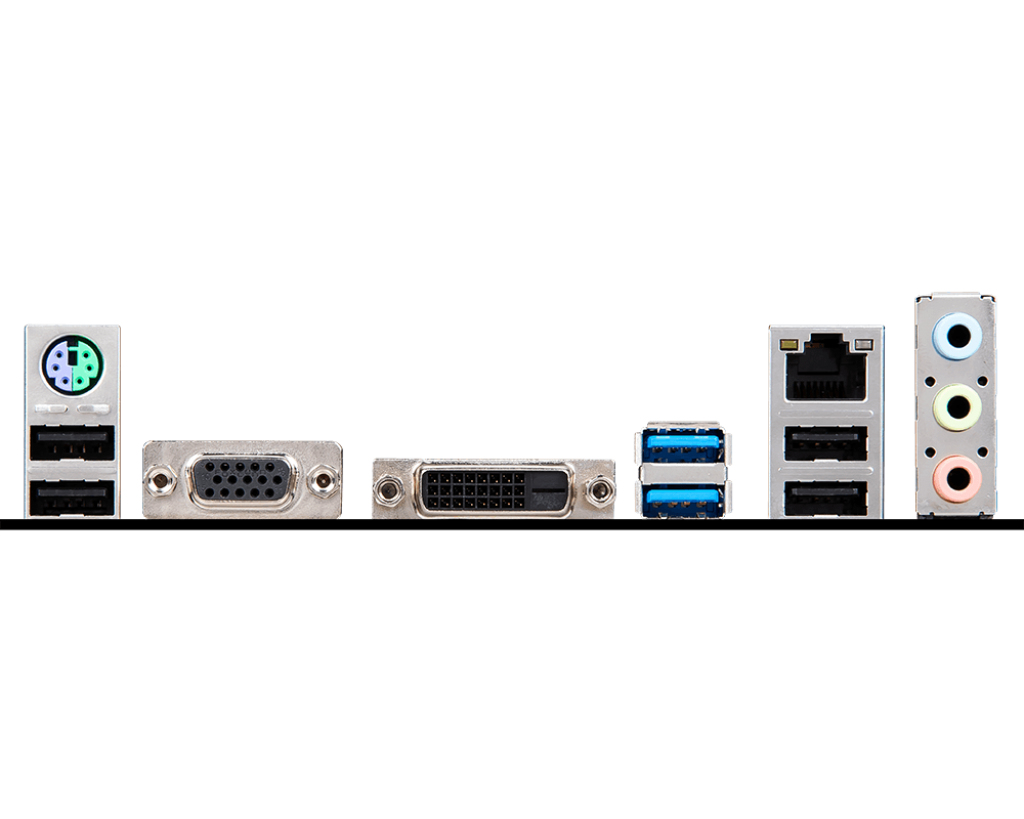

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H310M
Audio chipRealtek ALC887
Audio output channels7.1 channels
Number of mounting holes6
Windows operating systems supportedWindows 10

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width226 mm
Depth185 mm

Packaging content

Cables includedSATA
ManualYes
