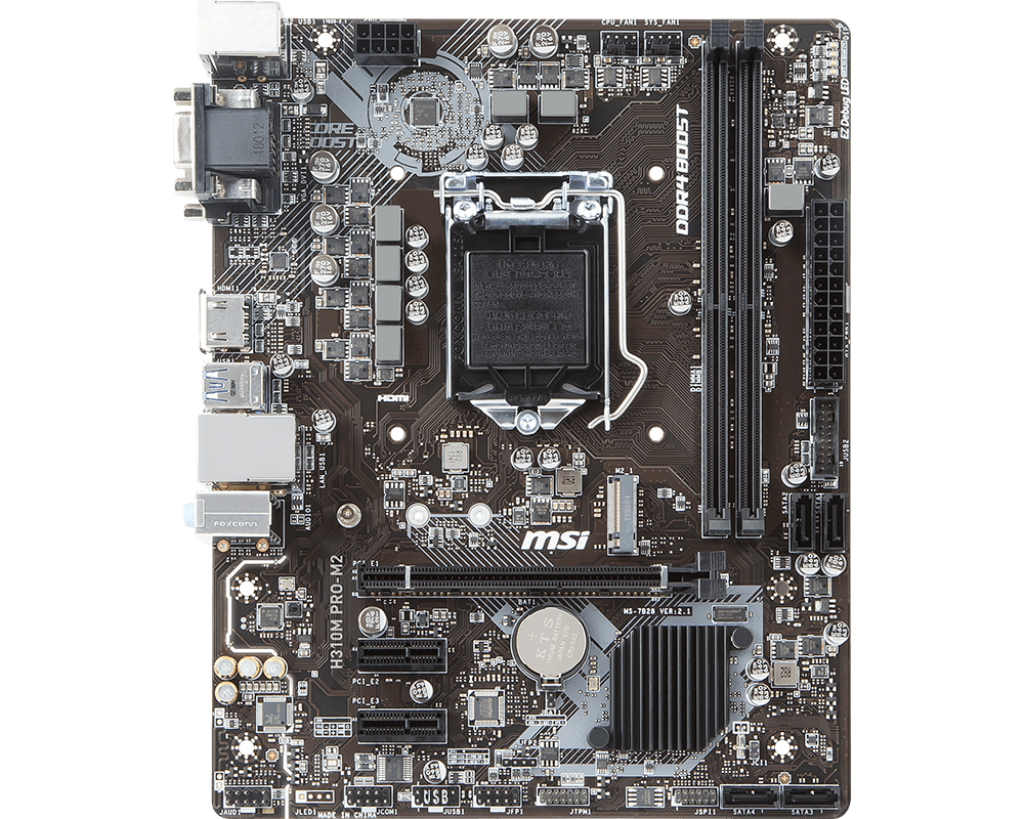

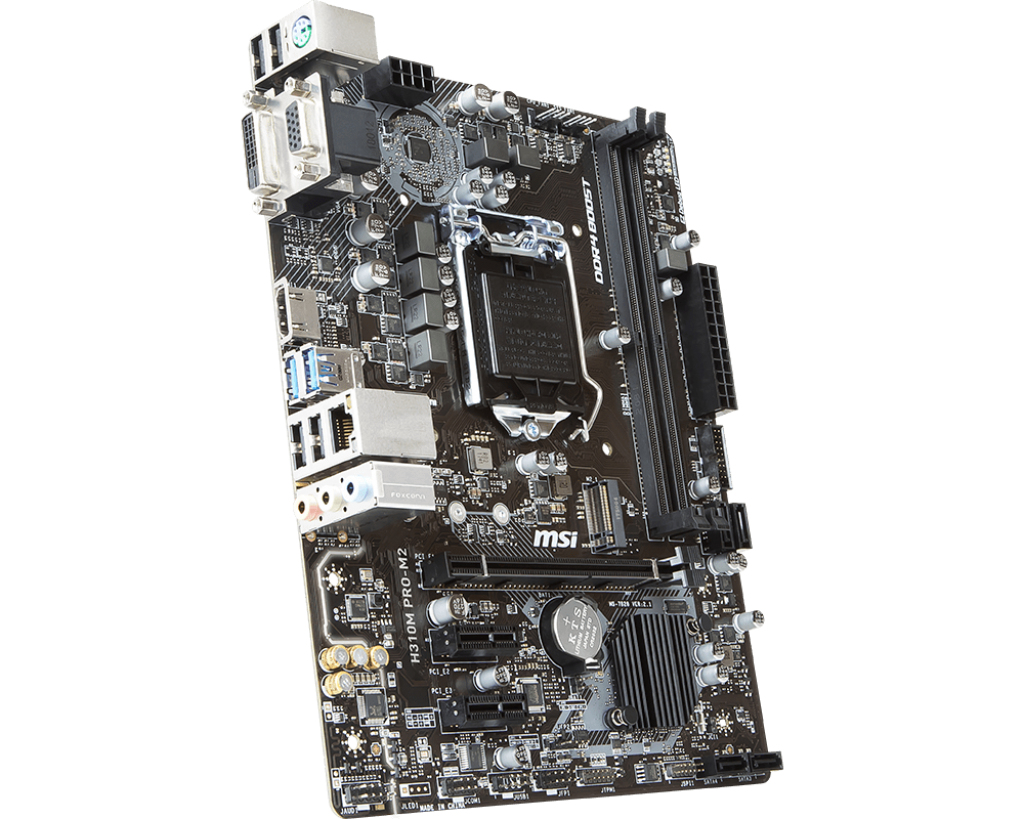

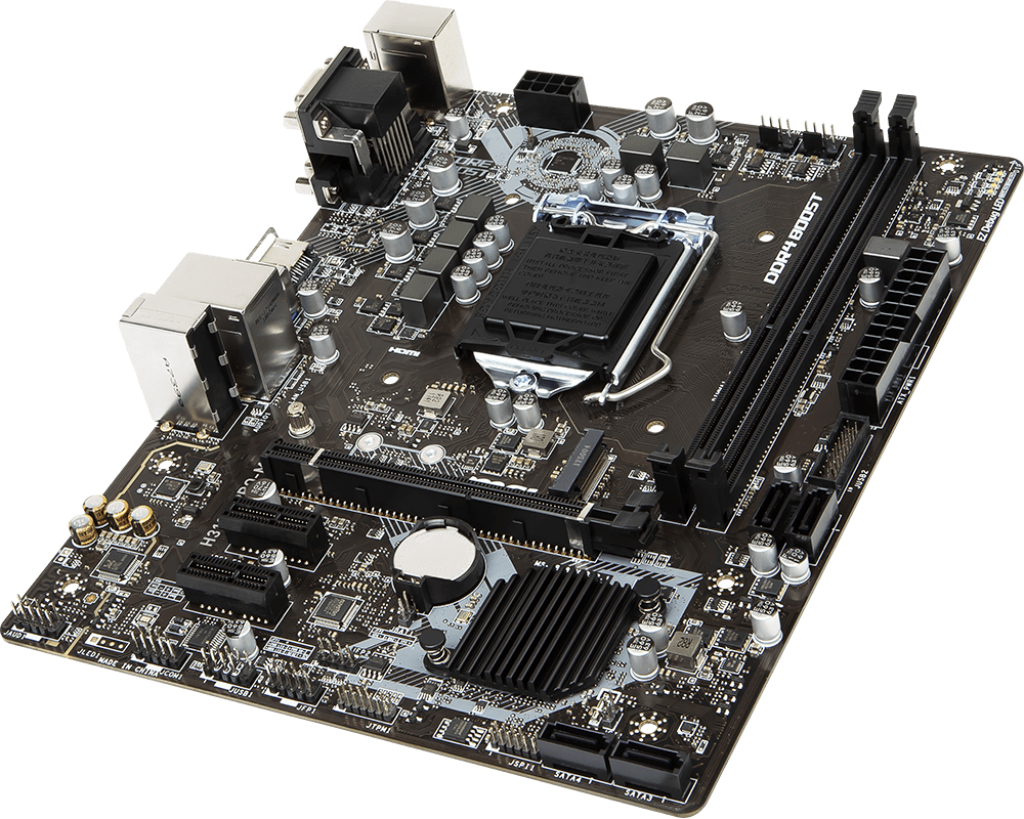

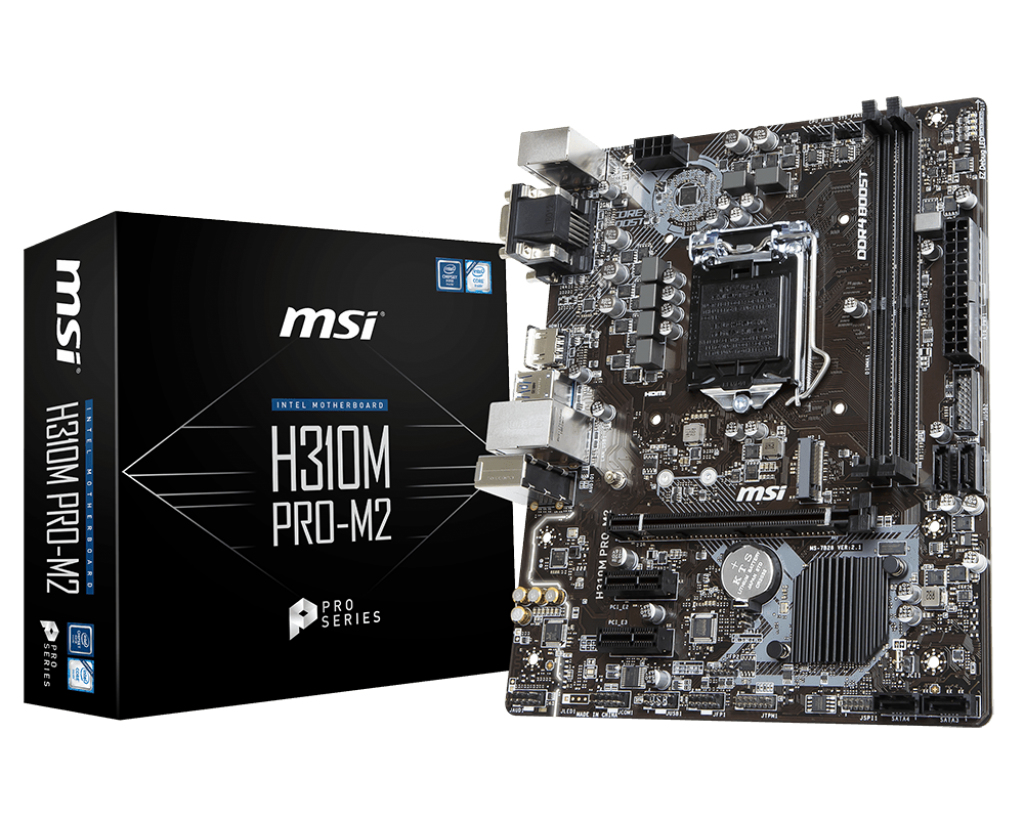

MSI H310M PRO-M2

MSI H310M PRO-M2

Model H310M PRO-M2Part no. 7B28-002REAN 824142159514

59 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Component for
PC
Brand
MSI
Category
Motherboard
Model
H310M PRO-M2
Part numbers
7B28-002R, 911-7B28-002
EAN / UPC
824142159514, 4719072562908
Also known as
MSI H310M PRO-M2 Intel® H310M LGA 1151 (Socket H4) mini ATX

Specifications

59 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory32 GB
Supported memory module capacities16GB

Storage controllers

Supported storage drive typesHDD & SSD

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

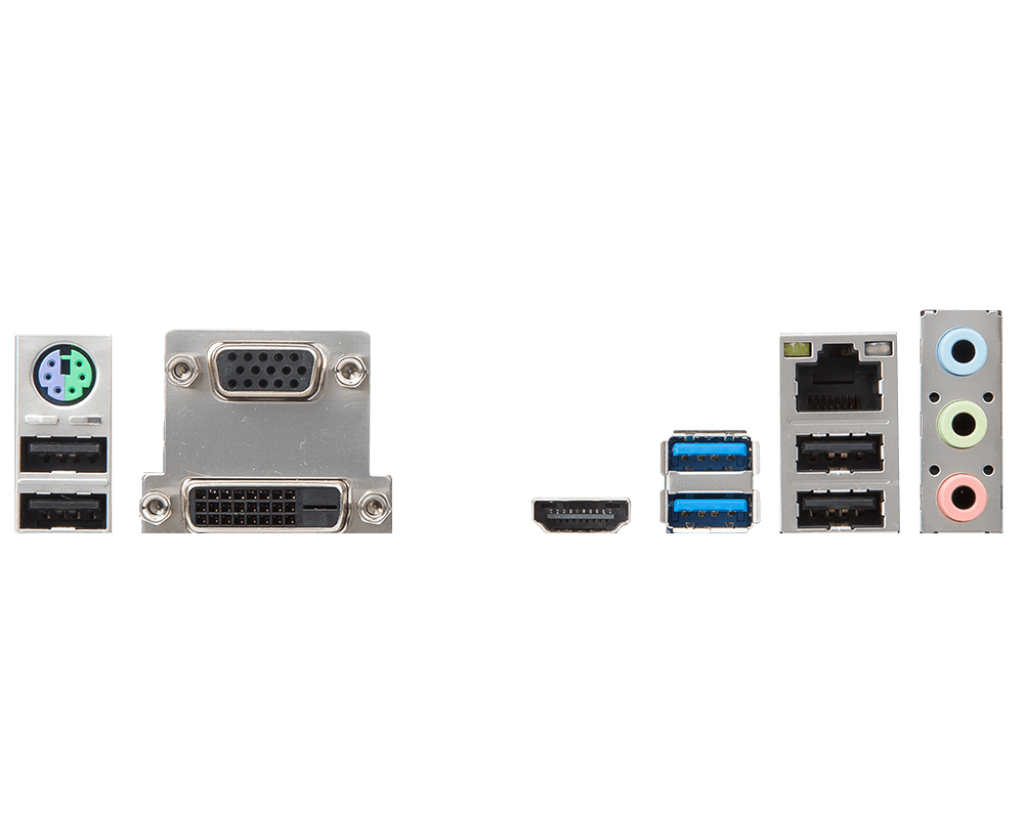

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Features

Component forPC
Motherboard form factormini ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H310M
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes

Weight & dimensions

Width185 mm
Depth230 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Quick installation guideYes
Serial port via internal headerYes
