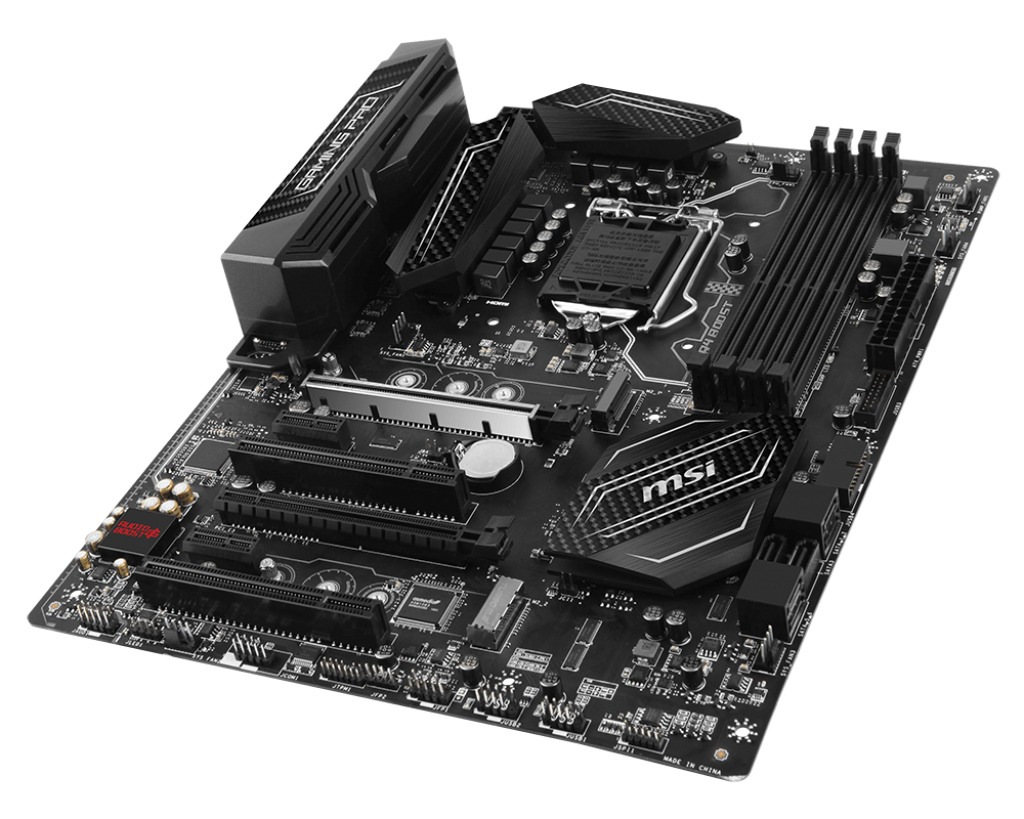

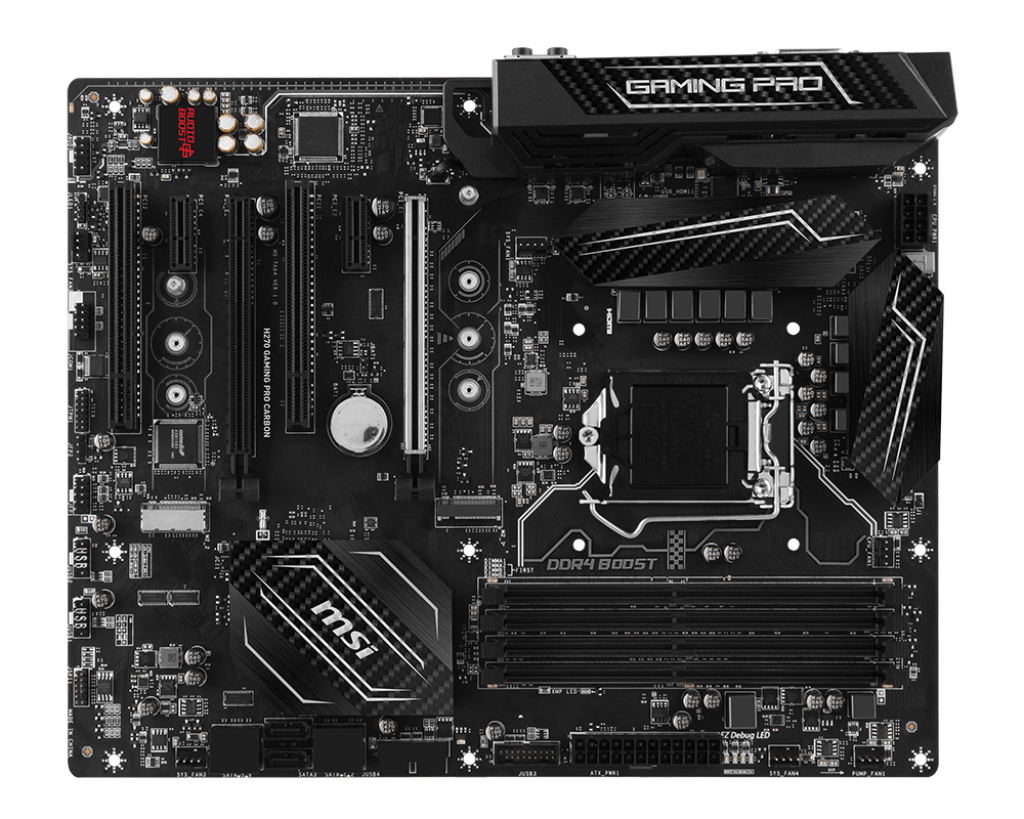

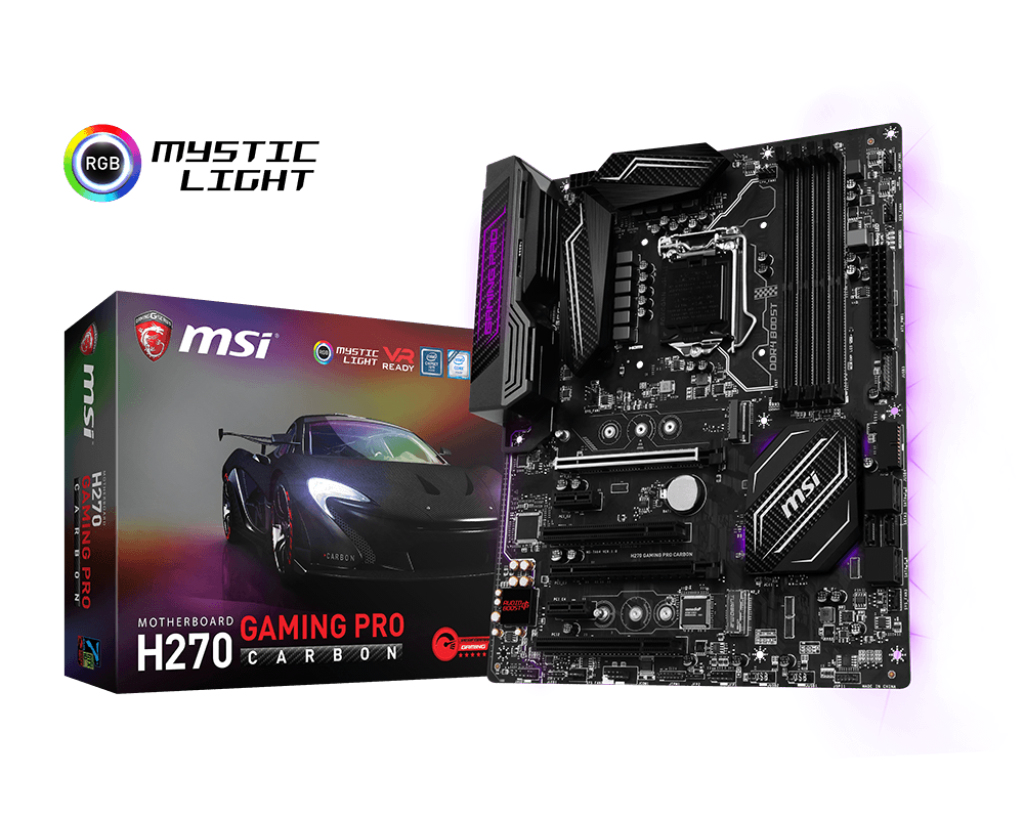

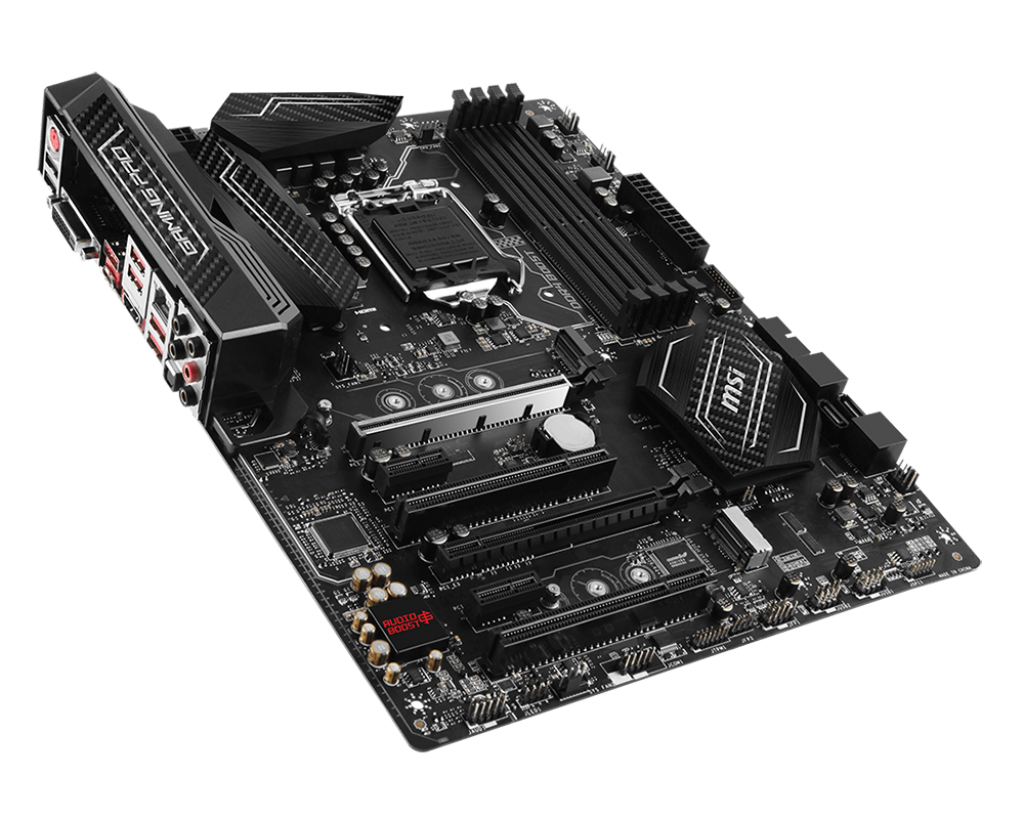

MSI H270 GAMING PRO CARBON

MSI H270 GAMING PRO CARBON

Model H270 GAMING PRO CARBONPart no. 7A64-001REAN 4058154162774

67 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
H270 GAMING PRO CARBON
Part number
7A64-001R
EAN / UPC
4058154162774, 4719072496166
Also known as
MSI H270 GAMING PRO CARBON Intel® H270 LGA 1151 (Socket H4) ATX

Specifications

67 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds2133,2400 MHz
Supported memory module capacities2GB, 4GB, 8GB, 16GB

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

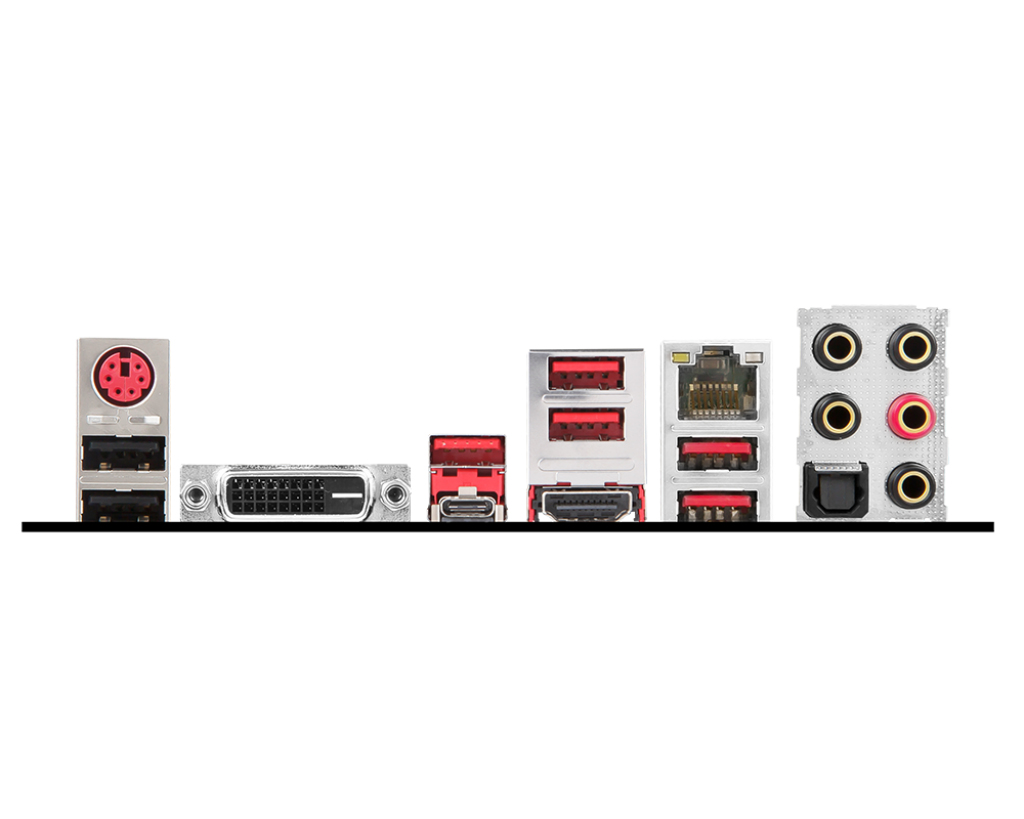

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
LAN controllerIntel® I219-V
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H270
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots2
PCI slots2
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Processor special features

Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

ManualYes
Drivers includedYes
