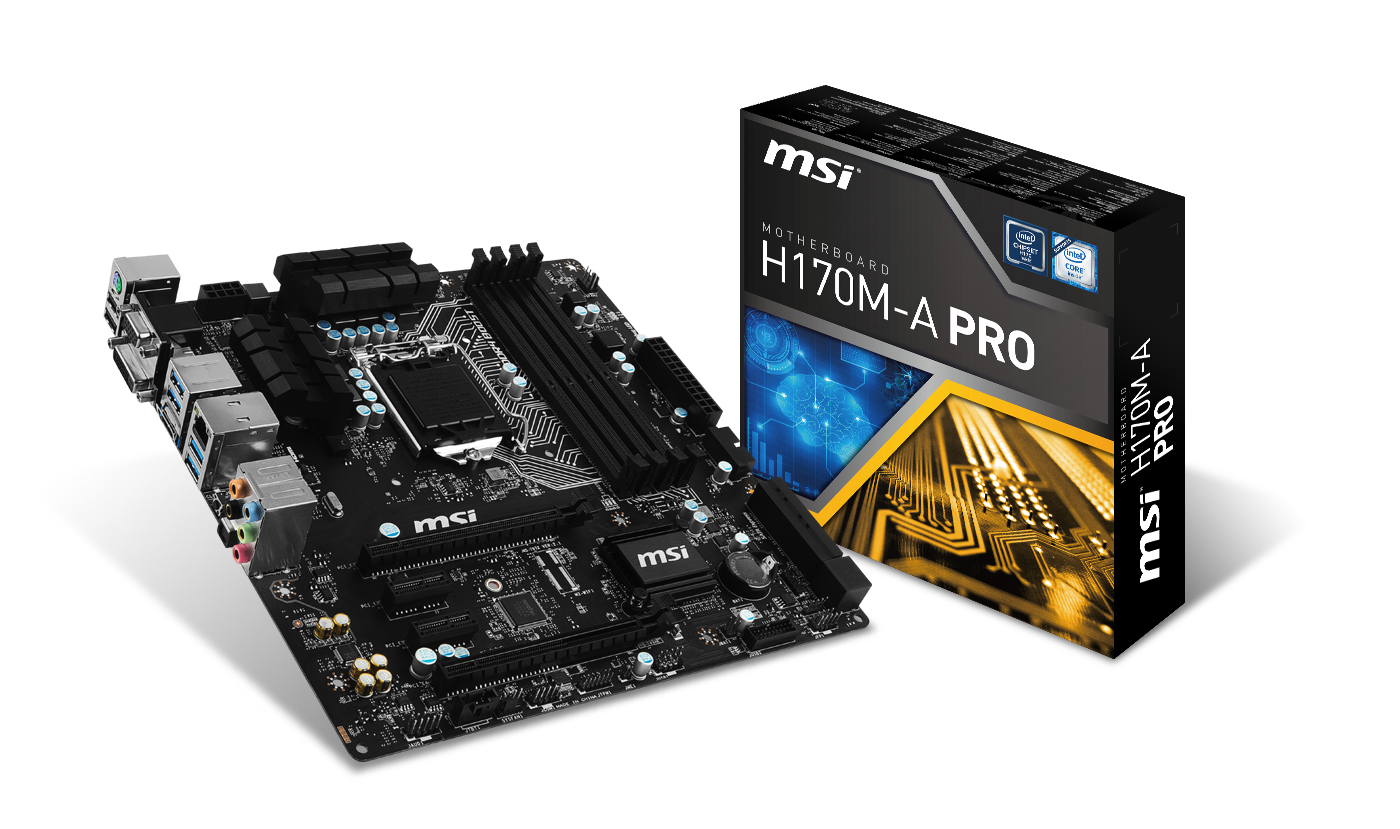

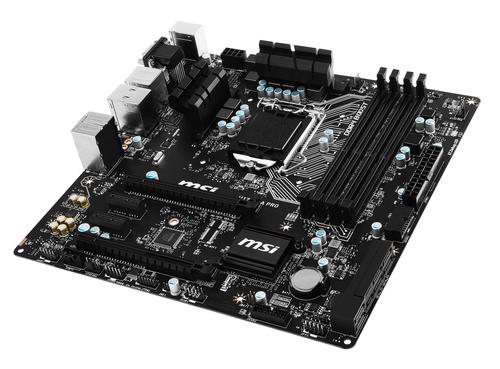

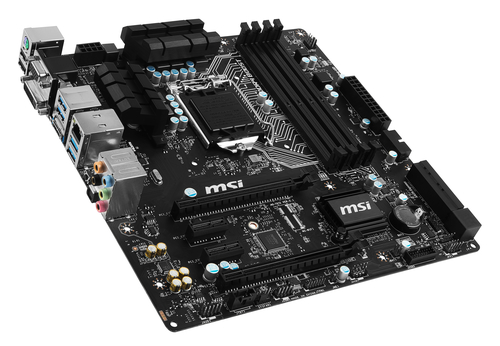

MSI H170M-A PRO

MSI H170M-A PRO

Model H170M-A PROPart no. 7972-013REAN 4058154035955

64 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
MSI
Category
Motherboard
Model
H170M-A PRO
Part number
7972-013R
EAN / UPC
4058154035955, 4719072437060
Also known as
MSI H170M-A PRO Intel® H170 LGA 1151 (Socket H4) micro ATX

Specifications

64 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133 MHz
Maximum internal memory64 GB
Supported memory module capacities16GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III

Graphics

Maximum resolution4096 x 2160 pixels
DirectX version12.0

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

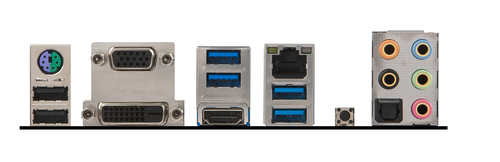

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H170
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots2

BIOS

BIOS typeUEFI
Clear CMOS jumperYes
Clear CMOS buttonYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width244 mm
Depth244 mm
