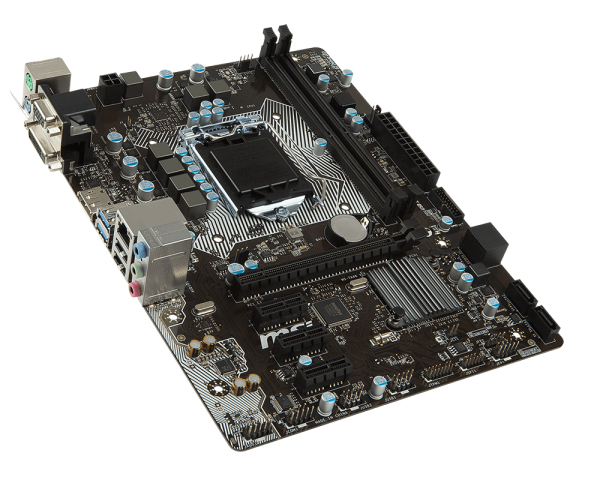

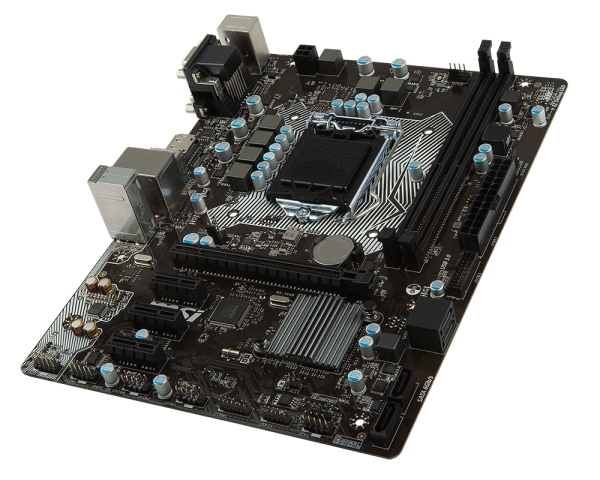

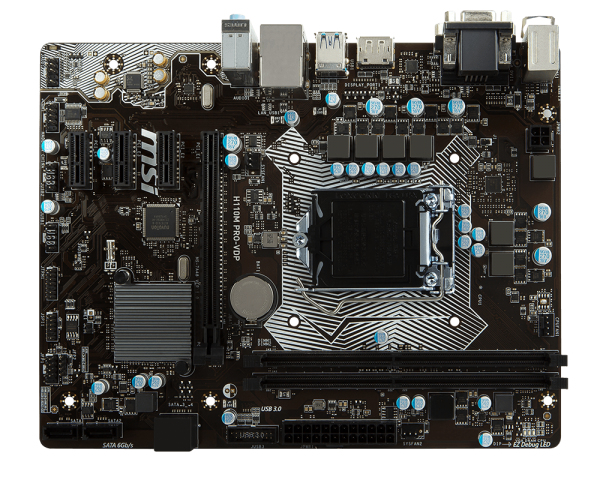

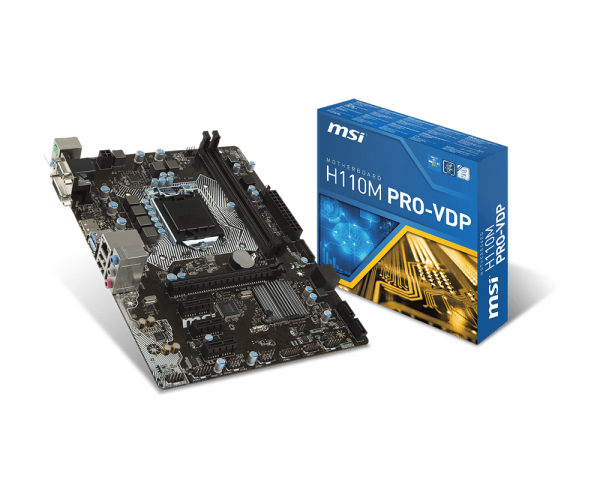

MSI H110M PRO-VDP

MSI H110M PRO-VDP

Model H110M PRO-VDPPart no. 7A48-001REAN 4719072479930

61 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum resolution4096 x 2304 pixels
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Maximum resolution
4096 x 2304 pixels
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
H110M PRO-VDP
Part numbers
7A48-001R, 007A48-001R
EAN / UPC
4719072479930
Also known as
MSI H110M PRO-VDP Intel® H110 LGA 1151 (Socket H4) micro ATX

Specifications

61 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1
Intel Core i3/i5/i7/i9 seriesi3-6xxx, i5-6xxx, i7-6xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III

Graphics

Maximum resolution4096 x 2304 pixels
DirectX version12.0

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
Chassis intrusion connectorYes
Serial port headers1
TPM connectorYes

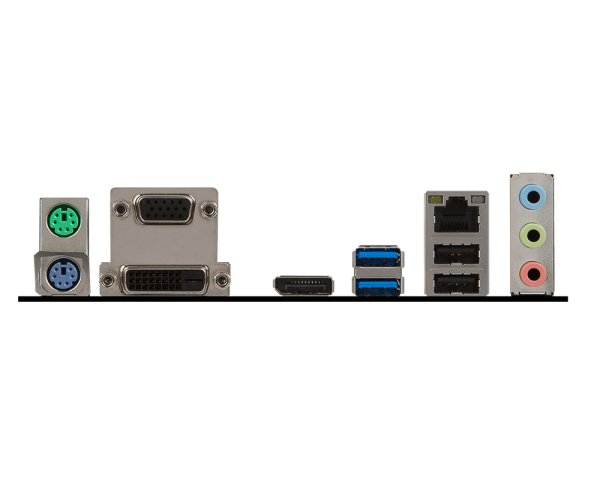

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
DisplayPorts quantity1
Headphone outputs2
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H110
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots3
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width187 mm
Depth244 mm
