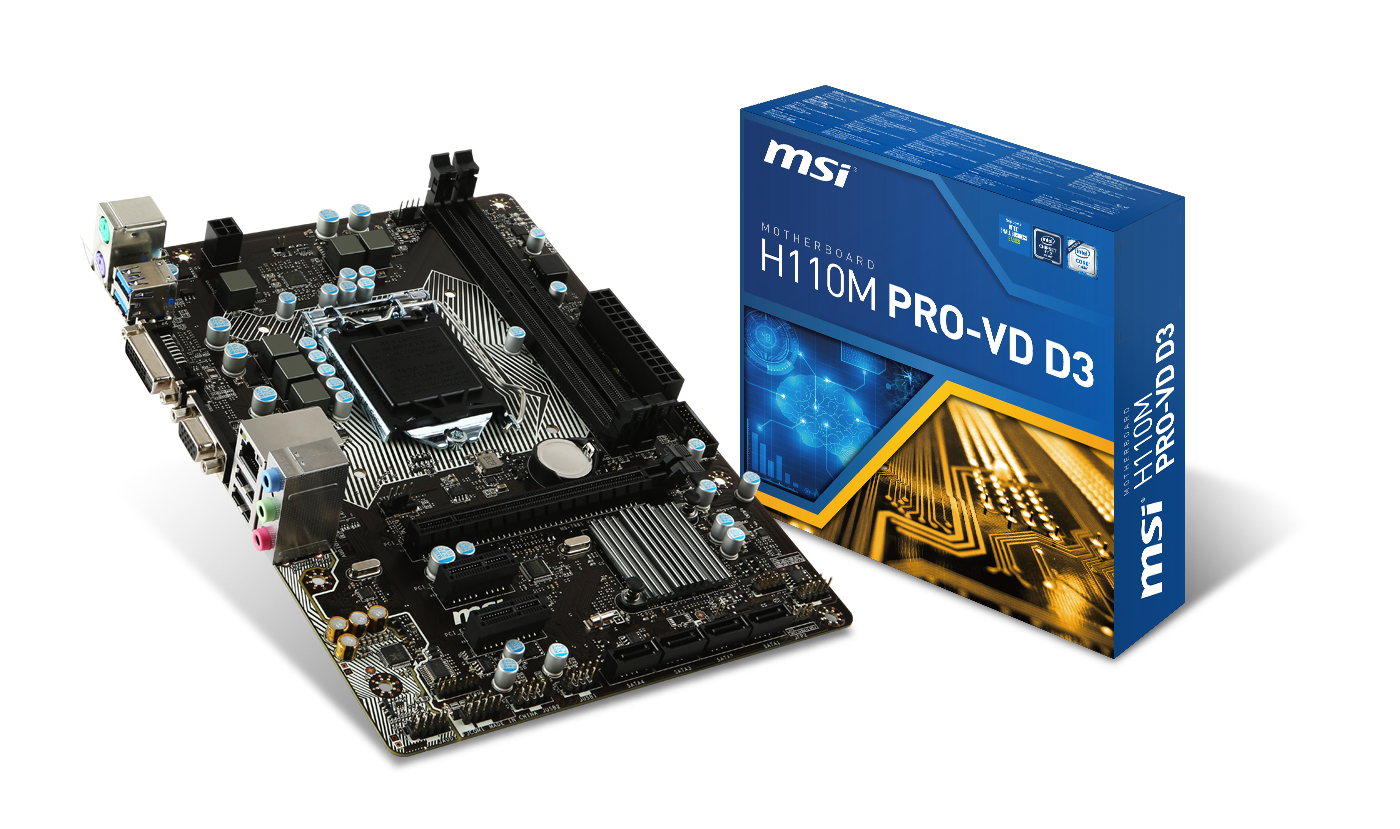

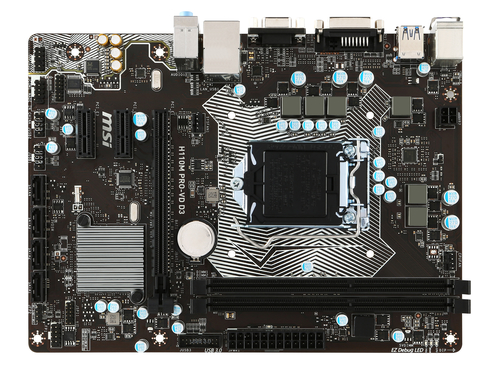

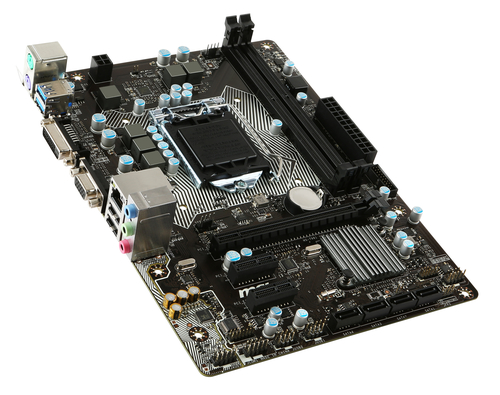

MSI H110M PRO-VD D3

MSI H110M PRO-VD D3

Model H110M PRO-VD D3Part no. 7981-008REAN 4719072435677

59 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
  • Supported storage drive interfacesSATA III
  • DirectX version12.0
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM, DDR3L-SDRAM
Supported storage drive interfaces
SATA III
DirectX version
12.0
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
H110M PRO-VD D3
Part number
7981-008R
EAN / UPC
4719072435677
Also known as
MSI H110M PRO-VD D3 Intel® H110 LGA 1151 (Socket H4) micro ATX

Specifications

59 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-6xxx, i5-6xxx, i7-6xxx

Memory

Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.35 V
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory32 GB
Supported memory module capacities16GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III

Graphics

DirectX version12.0

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
TPM connectorYes

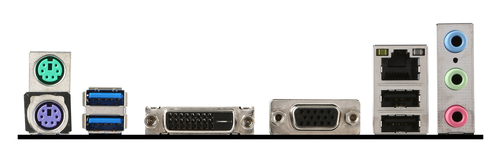

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H110
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width235 mm
Depth173 mm
