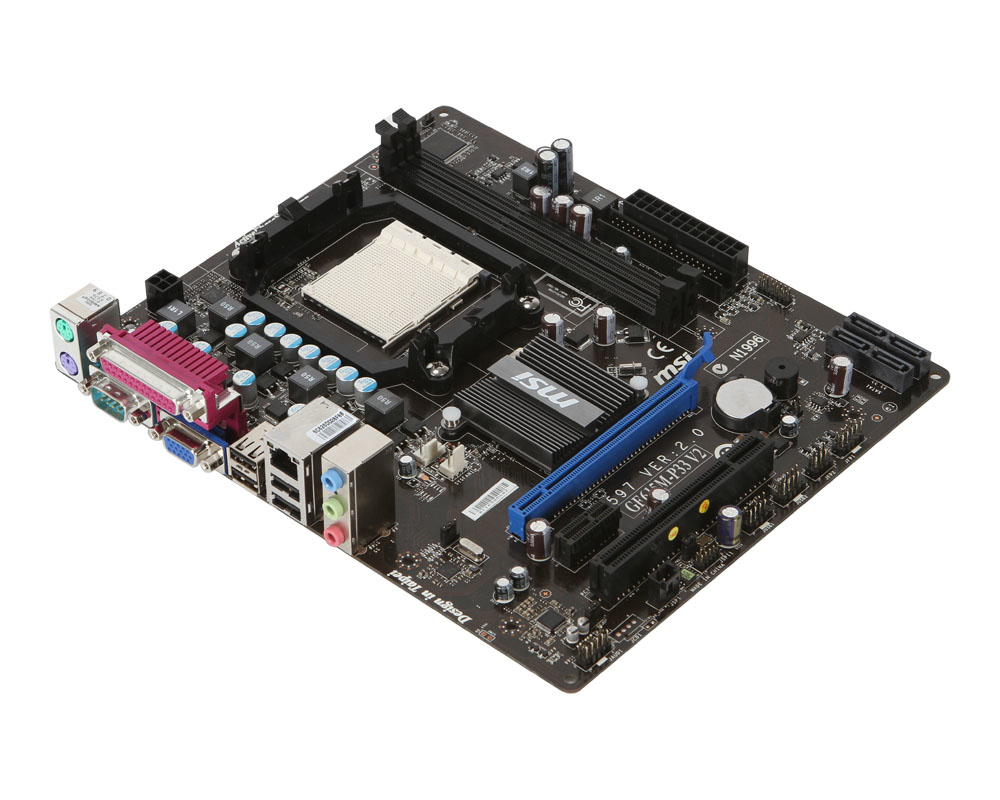

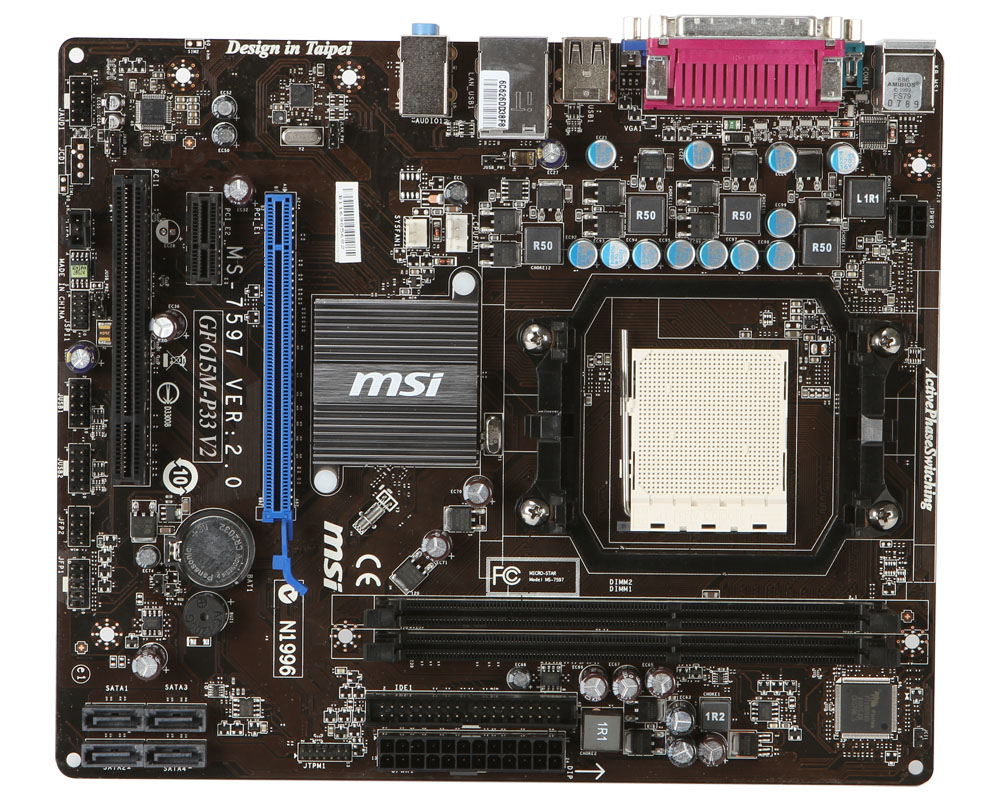

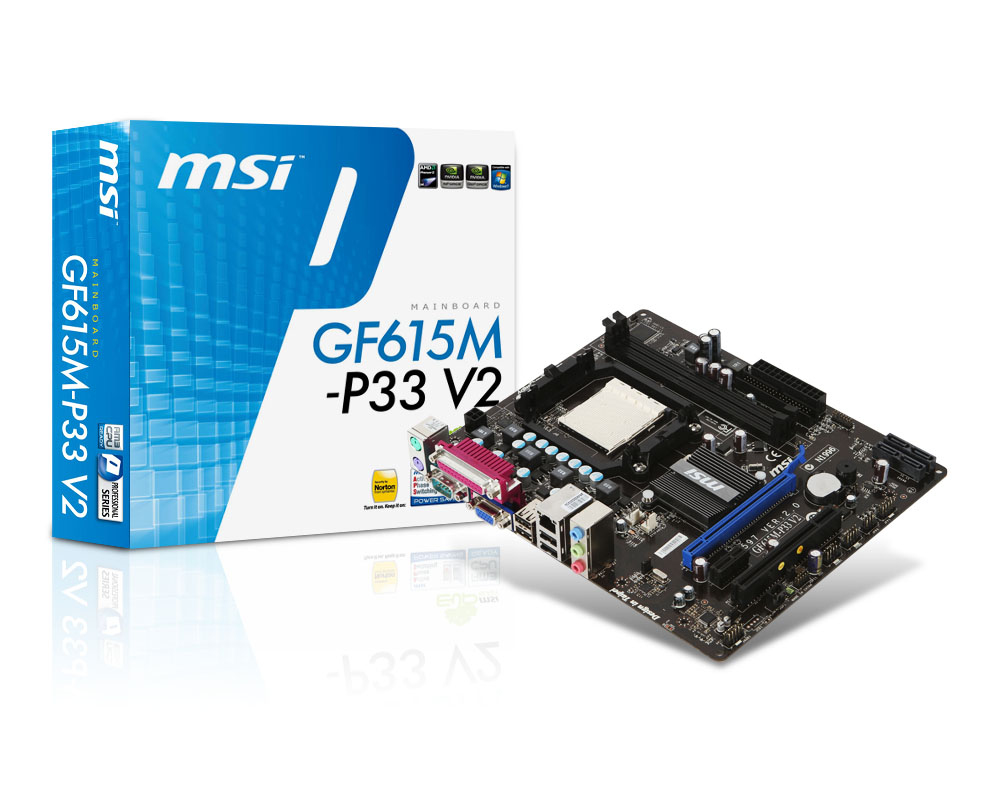

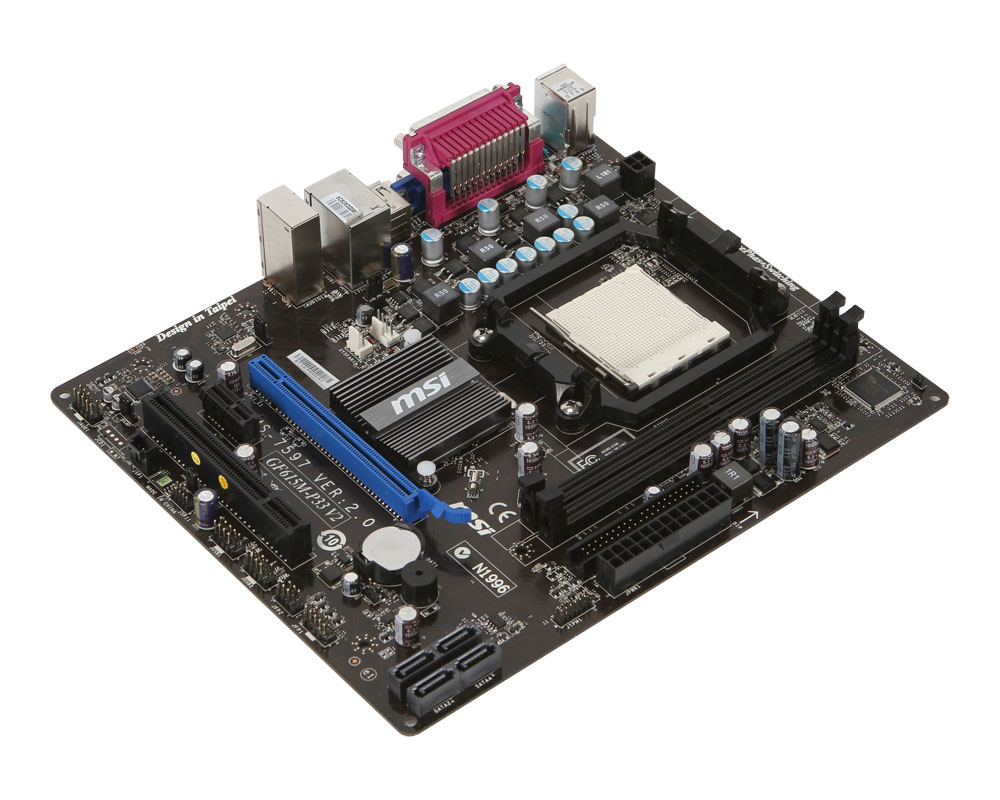

MSI GF615M-P33 V2

MSI GF615M-P33 V2

Model GF615M-P33 V2Part no. 7597-024REAN 4719072216146

55 specifications
  • Processor manufacturerAMD
  • Number of memory slots2
  • RAID levels0, 1, 5, 10
  • Maximum graphics card memory256 MB
  • USB 2.0 ports quantity4
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
2
RAID levels
0, 1, 5, 10
Maximum graphics card memory
256 MB
USB 2.0 ports quantity
4
Ethernet interface type
Gigabit Ethernet
Brand
MSI
Category
Motherboard
Model
GF615M-P33 V2
Part numbers
7597-024R, GF615M-P33V2, GF615M-P33 V2
EAN / UPC
4719072216146
Also known as
MSI GF615M-P33 V2 NVIDIA nForce 630a Socket AM3 micro ATX

Specifications

55 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X4
System bus rate2 GT/s

Memory

Number of memory slots2
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds800,1066,1333 MHz
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory256 MB
Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyNVIDIA
Graphics cardGeForce 7025

Internal I/O

USB 2.0 connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
TPM connectorYes

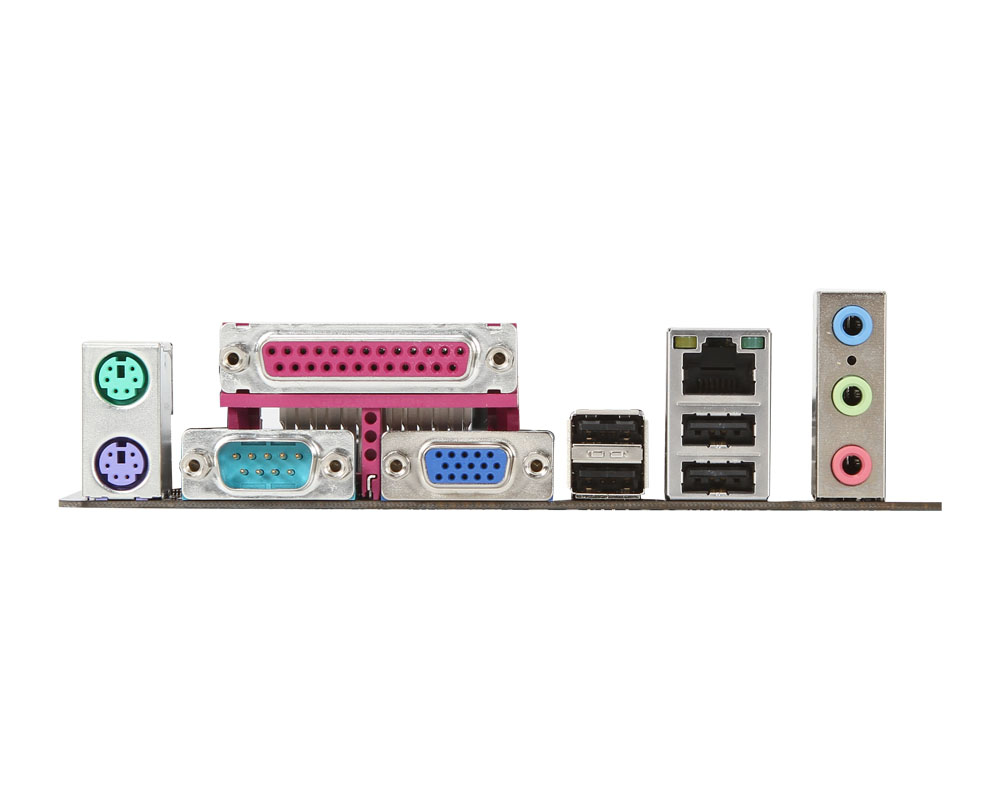

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetNVIDIA nForce 630a
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI Express slots version1.0
PCI slots1

Weight & dimensions

Width244 mm
Depth205 mm

Other features

Controller 2nd interface typeUltra DMA 66/100/133
Controller interface typeSATA II 3Gb/s
