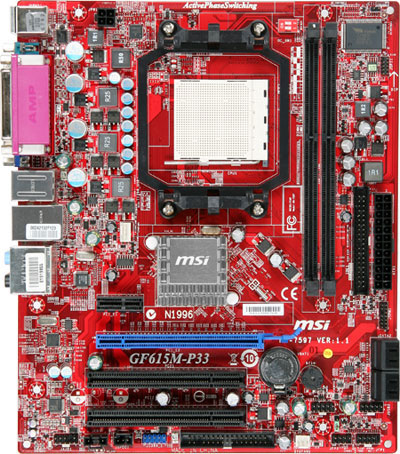

MSI GF615M-P33 motherboard NVIDIA MCP61P Socket AM3 micro ATX
Model GF615M-P33Part no. 7597-040REAN 4719072117351
46 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Number of SATA connectors4
- LAN controllerRealtek RTL8211CL
- Component forPC
- PCI Express x1 slots1
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Number of SATA connectors
- 4
- LAN controller
- Realtek RTL8211CL
- Component for
- PC
- PCI Express x1 slots
- 1
- Brand
- MSI
- Category
- Motherboard
- Model
- GF615M-P33
- Part numbers
- 7597-040R, 911-7597-009, GF615M-P33 7597-040, 911-7597-024, GF615M-P33
- EAN / UPC
- 4719072117351, 5052178929497
- Also known as
- MSI GF615M-P33 motherboard NVIDIA MCP61P Socket AM3 micro ATX
Specifications
46 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
| Compatible processor series | AMD Phenom II X2 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 800,1066,1300 MHz |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 4 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8211CL |
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | NVIDIA |
| Motherboard chipset | NVIDIA MCP61P |
| Audio chip | Realtek ALC888S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 200 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
