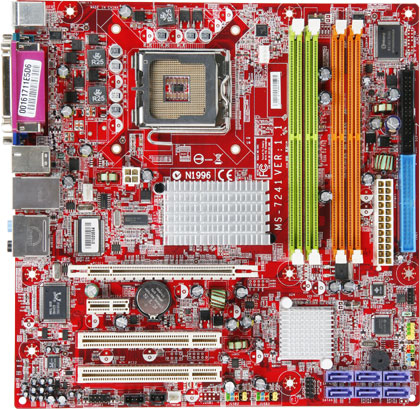

MSI G965M-FIR LGA 775 (Socket T) mini ATX
Model G965M-FIRPart no. 7241-030R
29 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- Ethernet LAN (RJ-45) ports1
- Networking features10/100/1000 Gigabit Ethernet
- Motherboard form factormini ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- Ethernet LAN (RJ-45) ports
- 1
- Networking features
- 10/100/1000 Gigabit Ethernet
- Motherboard form factor
- mini ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- G965M-FIR
- Part number
- 7241-030R
- Also known as
- MSI G965M-FIR LGA 775 (Socket T) mini ATX
Specifications
29 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Core™2 Duo |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express x16 1x PCI Express x1 2x PCI 2.3 32-bit PCI 1x IDE |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
