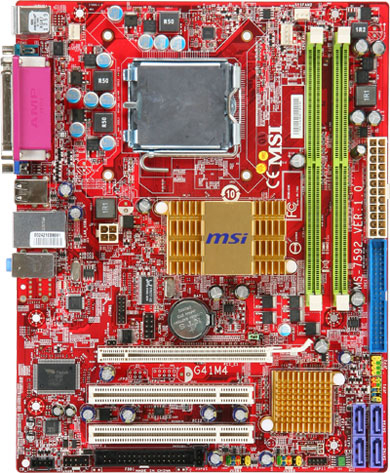

MSI G41M4-L motherboard LGA 775 (Socket T) micro ATX
Model G41M4-L
33 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Maximum graphics card memory256 MB
- Number of SATA connectors4
- LAN controllerRealtek RTL8103E(L)
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Maximum graphics card memory
- 256 MB
- Number of SATA connectors
- 4
- LAN controller
- Realtek RTL8103E(L)
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- G41M4-L
- Part numbers
- G41M4-L, 7592-070R, 007592-070R
- Also known as
- MSI G41M4-L motherboard LGA 775 (Socket T) micro ATX
Specifications
33 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |

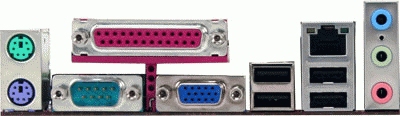

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8103E(L) |
| Networking features | 10/100 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 193 mm |
What people say
Reviews & ratings
MSI G41M4-L motherboard LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how MSI G41M4-L motherboard LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI G41M4-L motherboard LGA 775 (Socket T) micro ATX
All motherboard comparisons- MSI G41M4-L motherboard LGA 775 (Socket T) micro ATX vsMSI G41M-P33 motherboard LGA 775 (Socket T) micro ATXCompare specs
- MSI G41M4-L motherboard LGA 775 (Socket T) micro ATX vsMSI P41-C31 motherboard LGA 775 (Socket T) ATXCompare specs
- MSI G41M4-L motherboard LGA 775 (Socket T) micro ATX vsMSI G41M-E43 motherboard LGA 775 (Socket T) micro ATXCompare specs

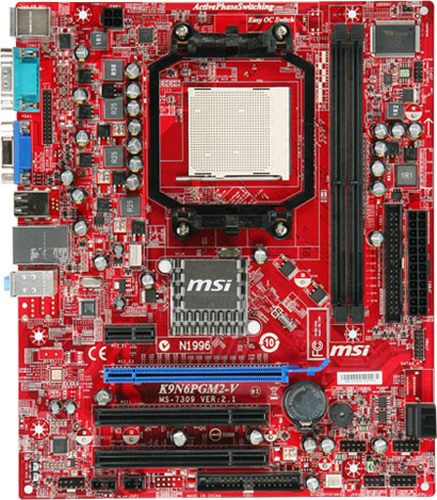

- MSI G41M4-L motherboard LGA 775 (Socket T) micro ATX vsMSI K9N6PGM2-V2 motherboard NVIDIA MCP61P Socket AM2 micro ATXCompare specs
