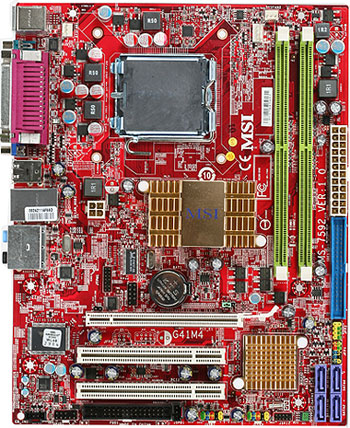

MSI G41M4-F motherboard LGA 775 (Socket T) micro ATX
Model G41M4-FPart no. 911-7592-001EAN 5051964748052
35 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Maximum graphics card memory256 MB
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8111DL
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Maximum graphics card memory
- 256 MB
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8111DL
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- G41M4-F
- Part numbers
- 911-7592-001, G41M4-F, 7592-010, 7592-010R, 7592-010B, 601-7592-010
- EAN / UPC
- 5051964748052, 816909054712, 4719072104764, 4054842412138 +2 more
- Also known as
- MSI G41M4-F motherboard LGA 775 (Socket T) micro ATX
Specifications
35 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111DL |
| Networking features | PCI Express LAN 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 0 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 193 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
