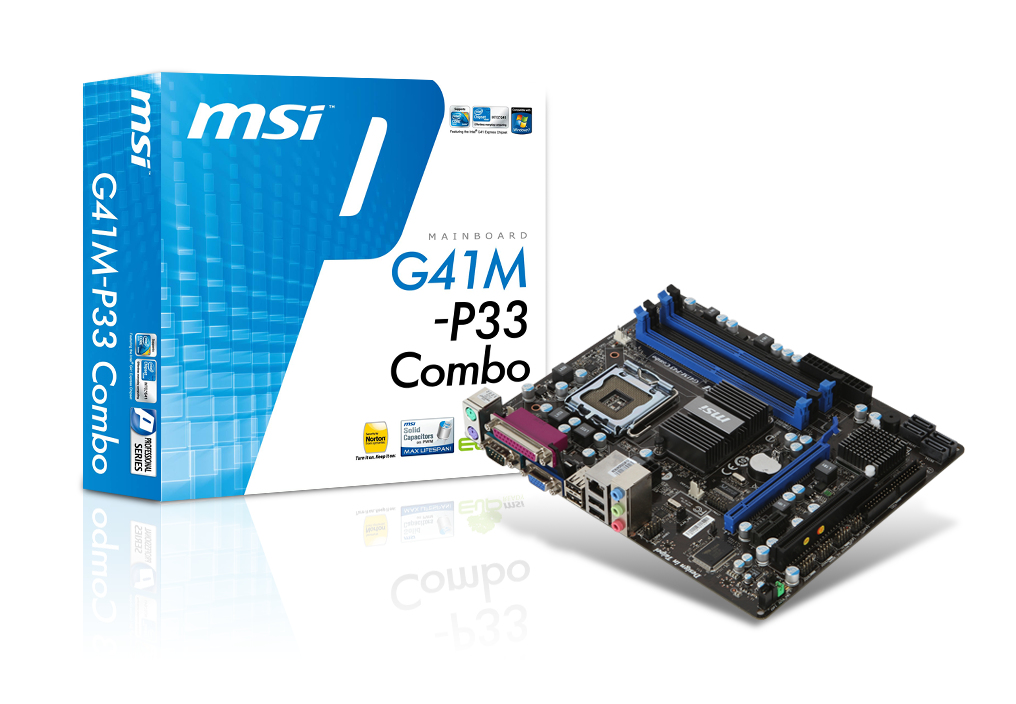

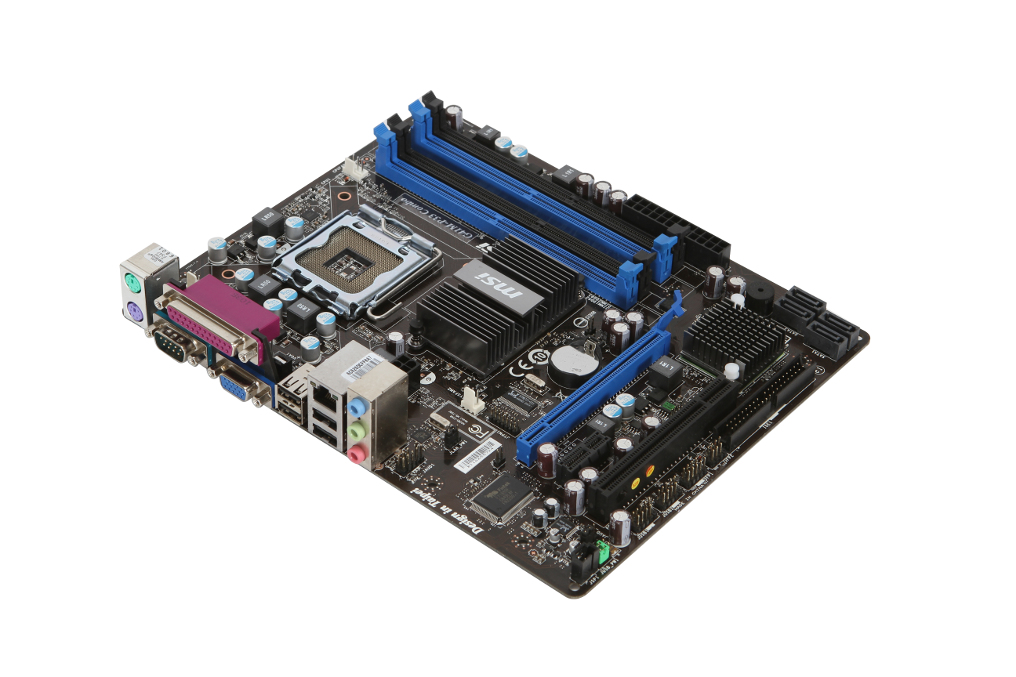

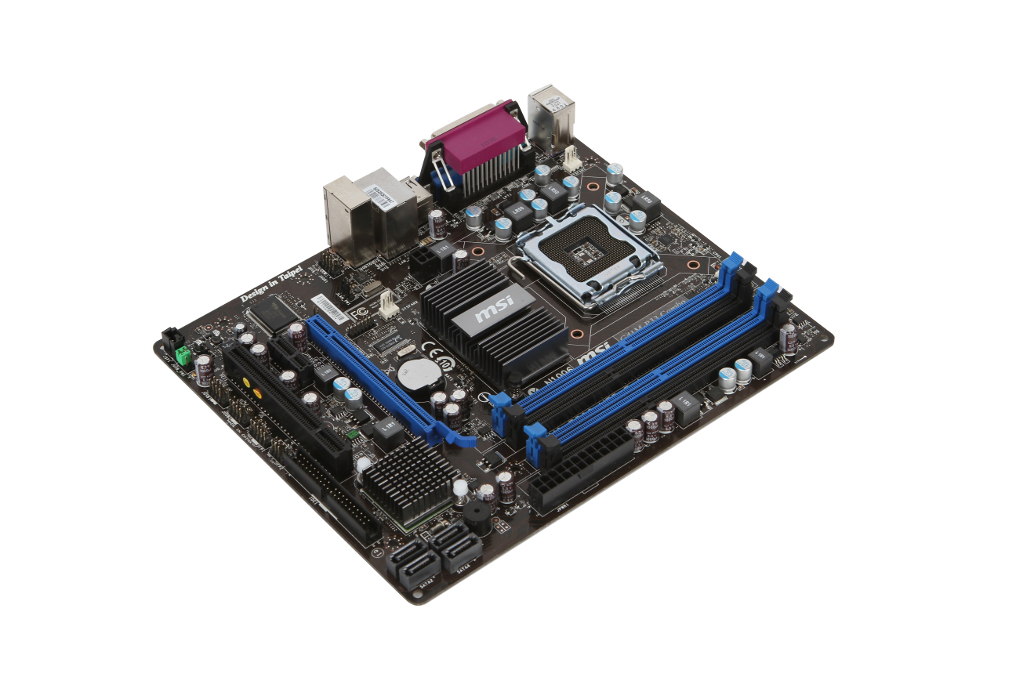

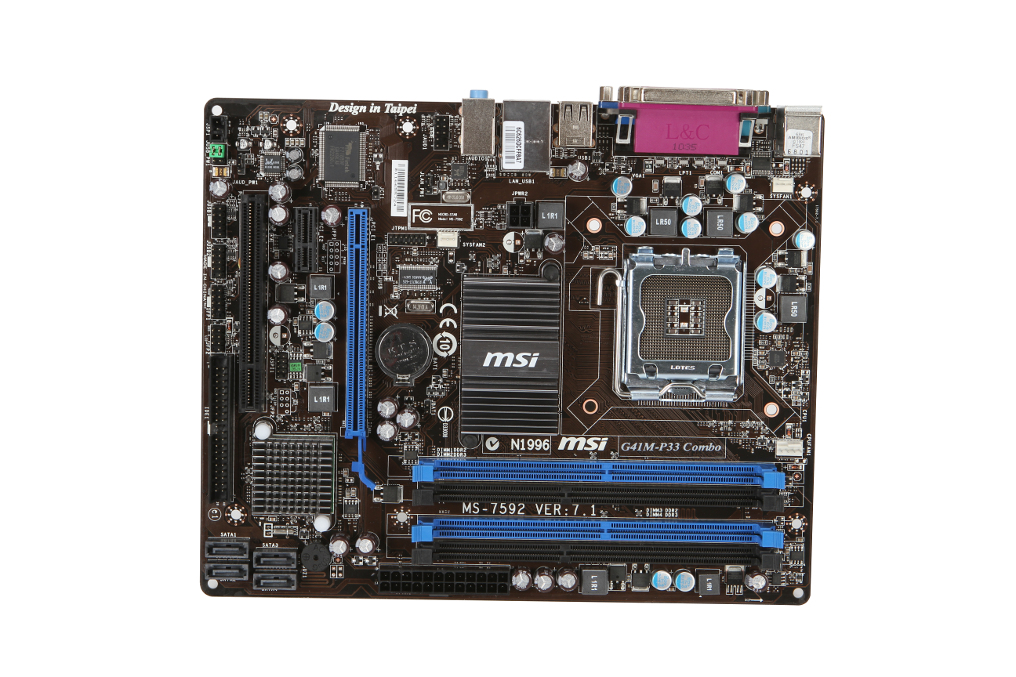

MSI G41M-P33 Combo

MSI G41M-P33 Combo

Model G41M-P33 ComboPart no. 911-7592-248EAN 8169090836820

60 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR2-SDRAM, DDR3-SDRAM
  • Supported storage drive interfacesIDE, SATA II
  • Maximum graphics card memory1740 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR2-SDRAM, DDR3-SDRAM
Supported storage drive interfaces
IDE, SATA II
Maximum graphics card memory
1740 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
G41M-P33 Combo
Part number
911-7592-248
EAN / UPC
8169090836820, 816909083682, 4054319113100, 5053086259270 +2 more
Also known as
MSI G41M-P33 Combo Intel® G41 LGA 775 (Socket T) micro ATX

Specifications

60 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 775 (Socket T)
Compatible processor seriesIntel® Core™2 Duo, Intel® Core™2 Quad
Processor system buses supported800,1066,1333 MHz
Processor thermal power (max)95 W

Memory

Supported memory typesDDR2-SDRAM, DDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds667,800,1066,1333 MHz
Maximum internal memory8 GB
Supported memory module capacities4GB

Storage controllers

Supported storage drive interfacesIDE, SATA II

Graphics

Maximum graphics card memory1740 MB
On-board graphics cardYes
Graphics card familyIntel
Graphics cardGMA X4500
DirectX version10.0
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of Parallel ATA connectors1
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
TPM connectorYes

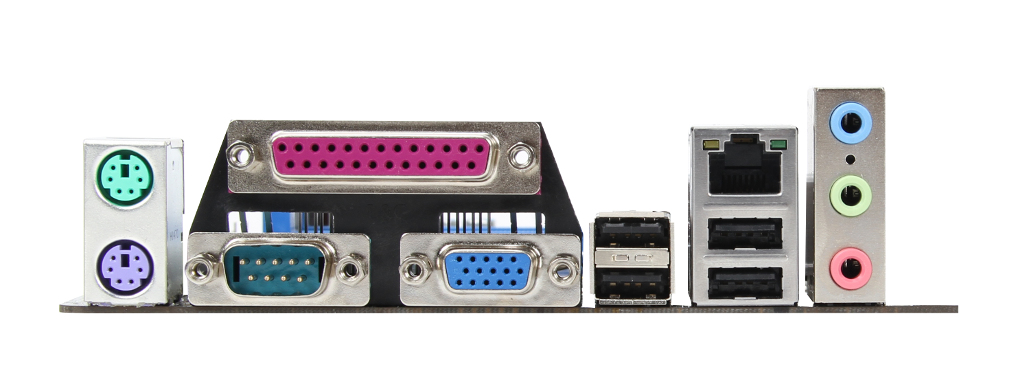

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
LAN controllerRealtek RTL8105E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® G41
Audio chipRealtek ALC662
Audio output channels5.1 channels
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width198 mm
Depth244 mm
