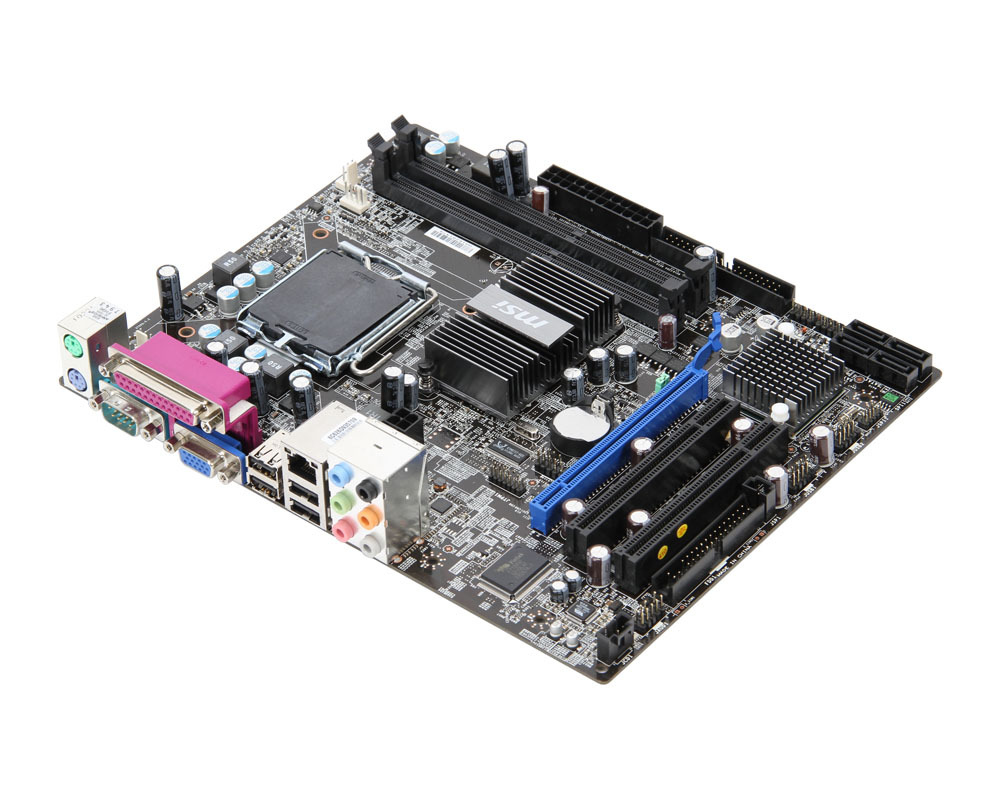

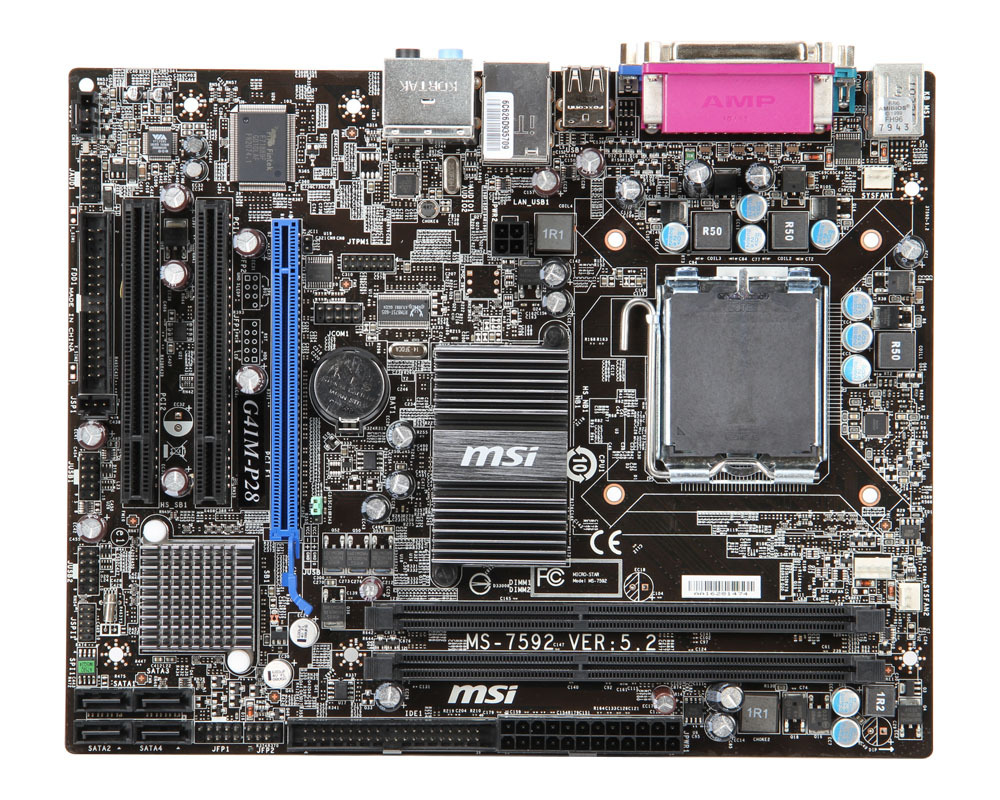

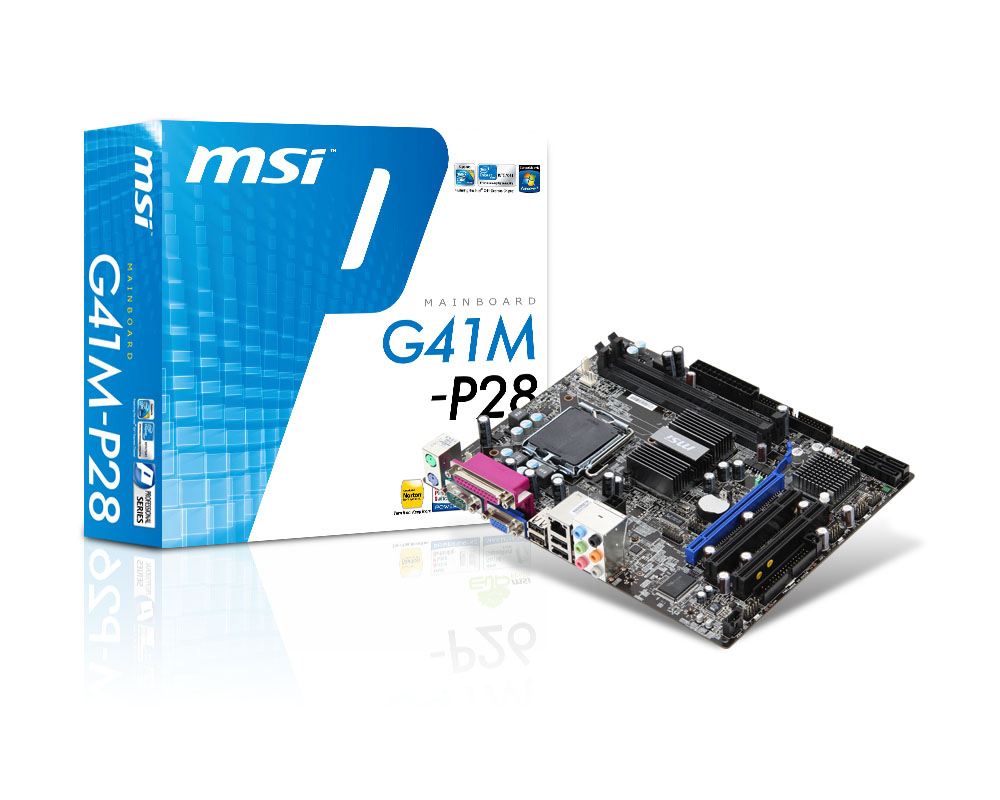

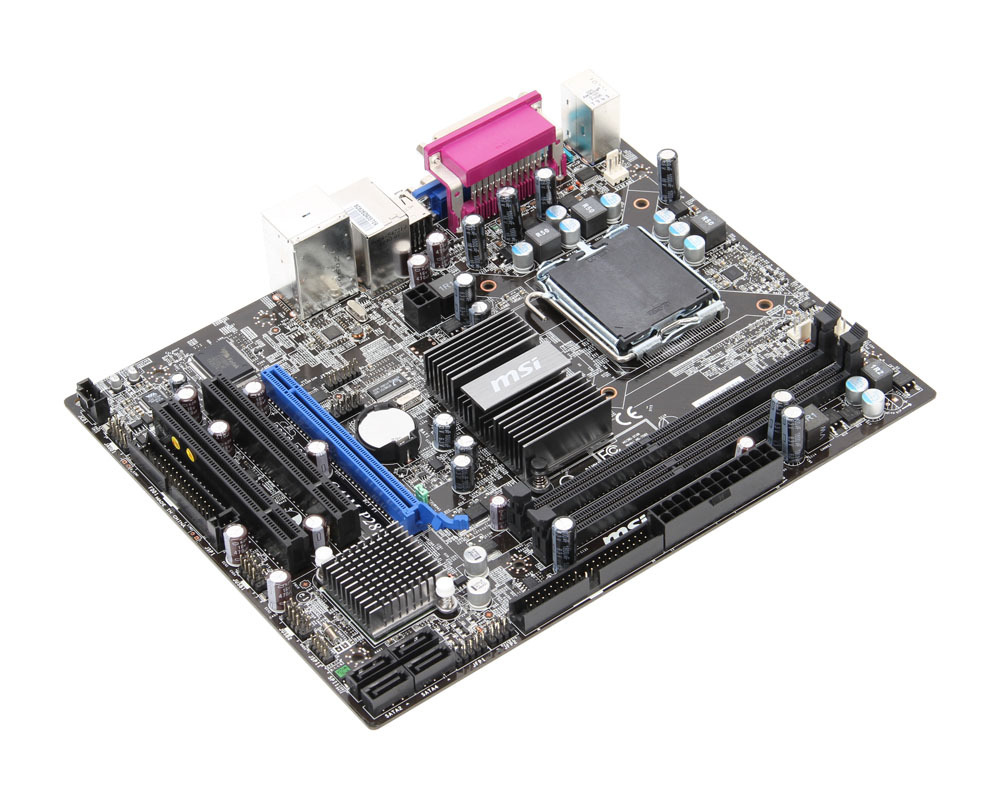

MSI G41M-P28 motherboard LGA 775 (Socket T) micro ATX
Model G41M-P28EAN 4719072205645
46 specifications
- Processor socketLGA 775 (Socket T)
- Number of memory slots2
- Parallel processing technology supportNot supported
- USB 2.0 ports quantity4
- LAN controllerAtheros AR8131M
- Motherboard form factormicro ATX
Overview
- Processor socket
- LGA 775 (Socket T)
- Number of memory slots
- 2
- Parallel processing technology support
- Not supported
- USB 2.0 ports quantity
- 4
- LAN controller
- Atheros AR8131M
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- G41M-P28
- Part numbers
- G41M-P28, 911-7592-235, 601-7592-410
- EAN / UPC
- 4719072205645, 816909080285
- Also known as
- MSI G41M-P28 motherboard LGA 775 (Socket T) micro ATX
Specifications
46 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |

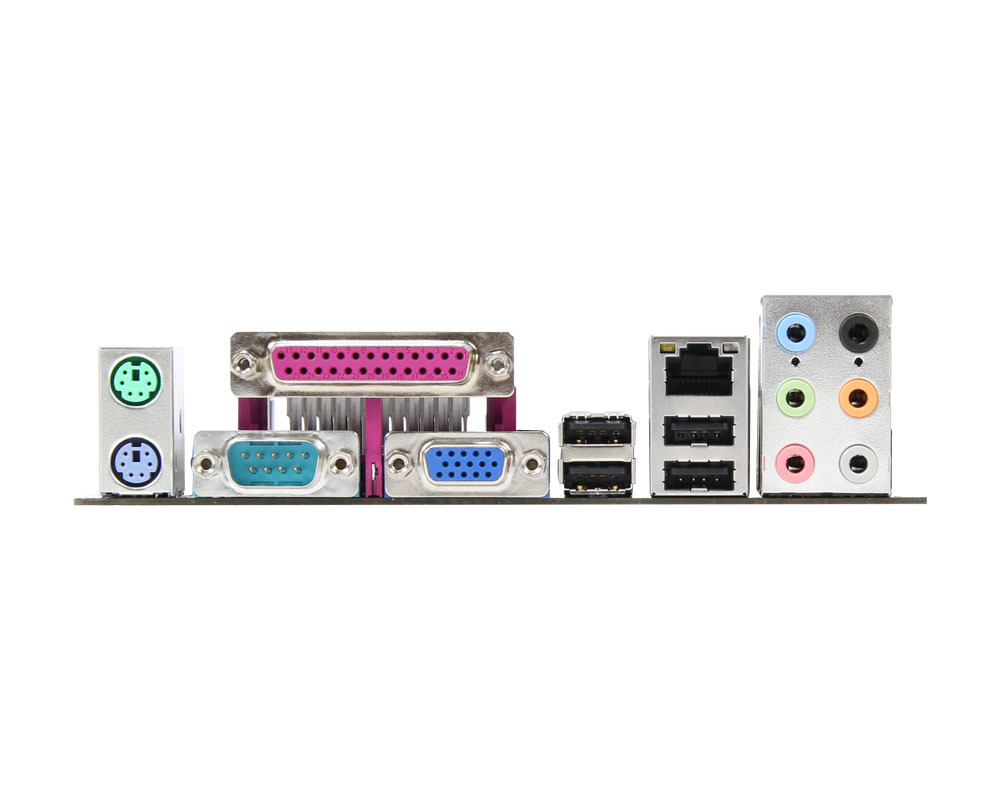

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Atheros AR8131M |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 98SE/ME/2000/XP/Vista/7 32Bit |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 200 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra DMA 66/100 IDE |
| Controller interface type | SATAII |
| Floppy disk drive connector | Yes |
