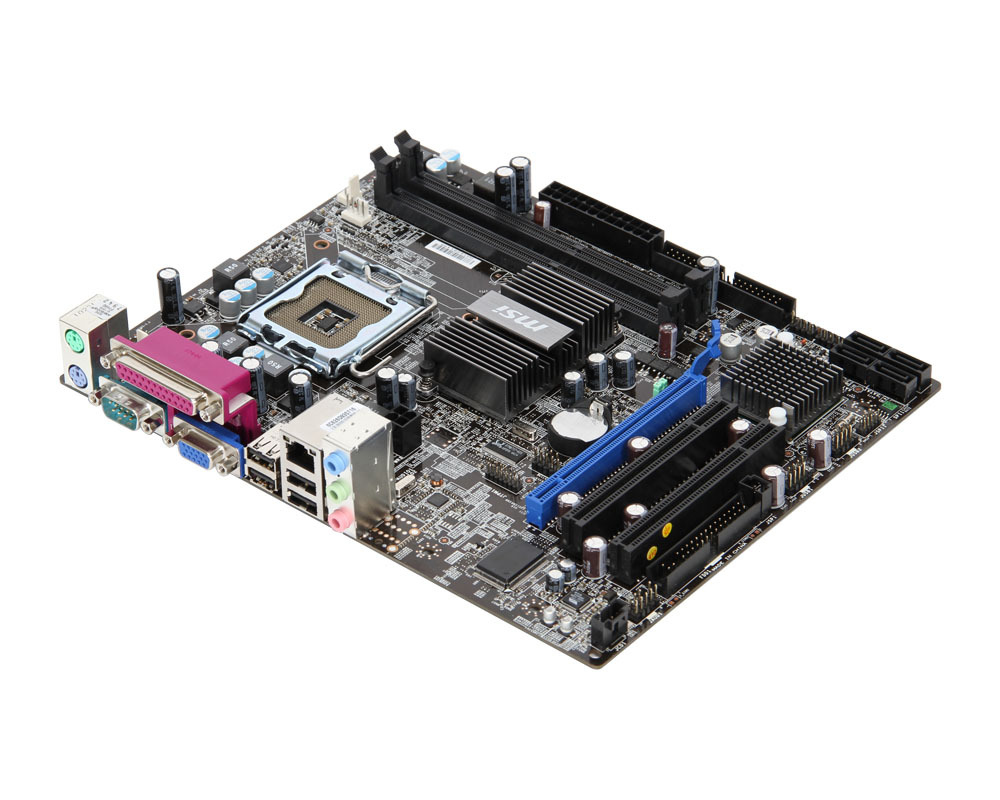

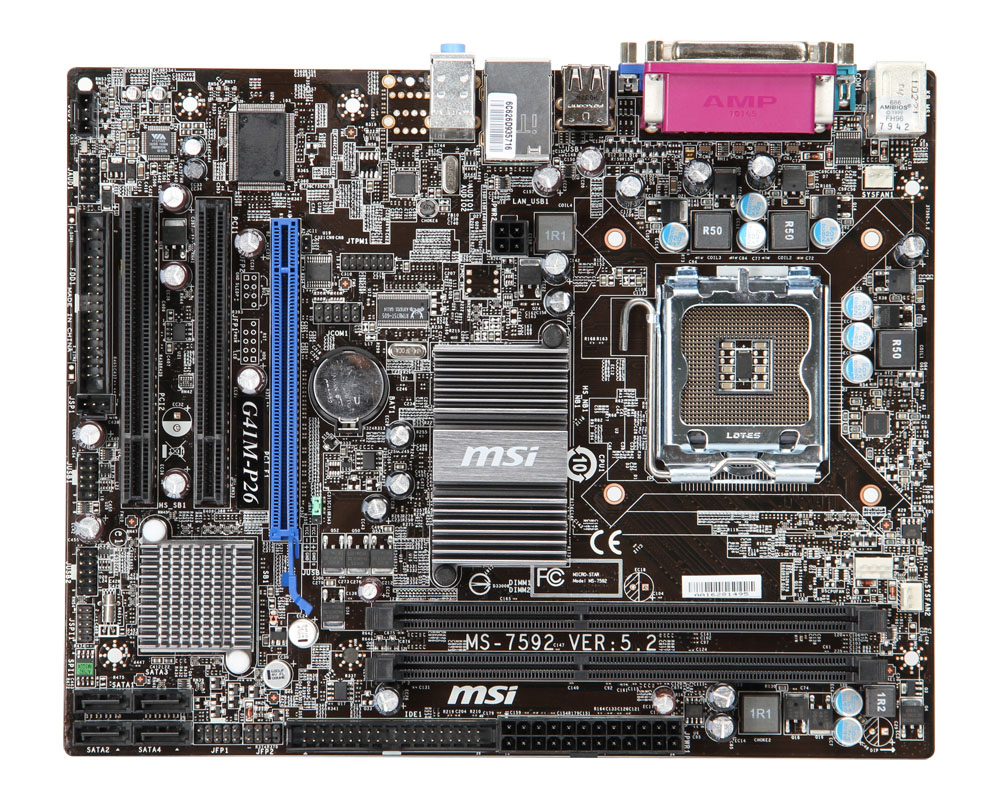

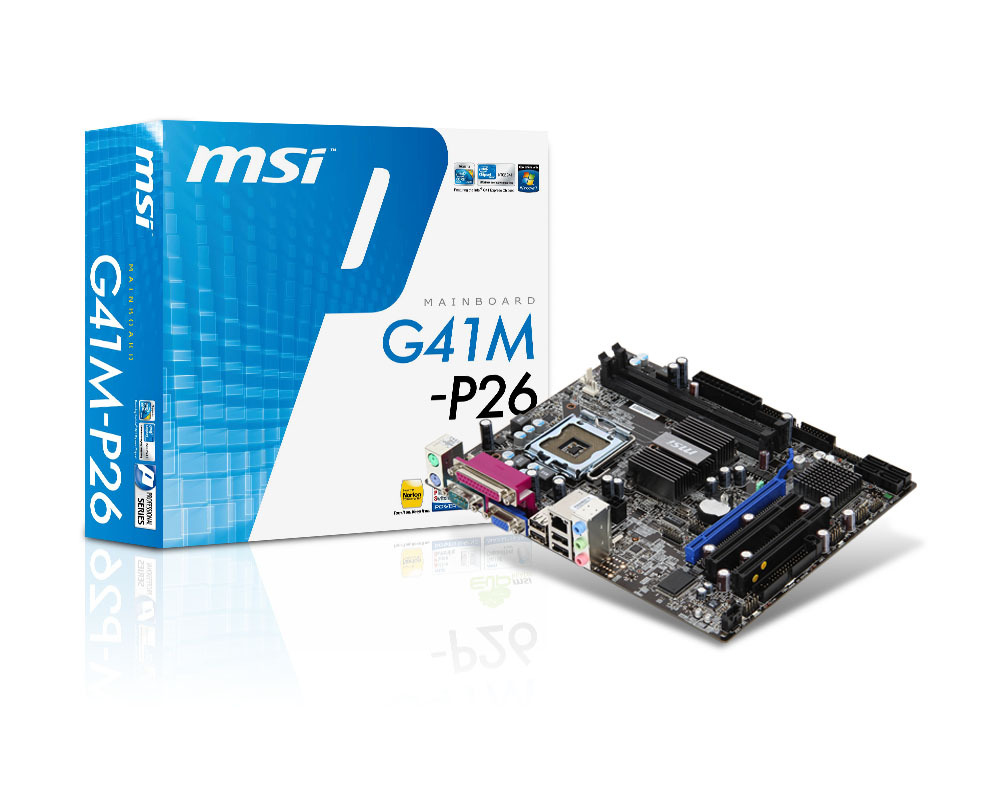

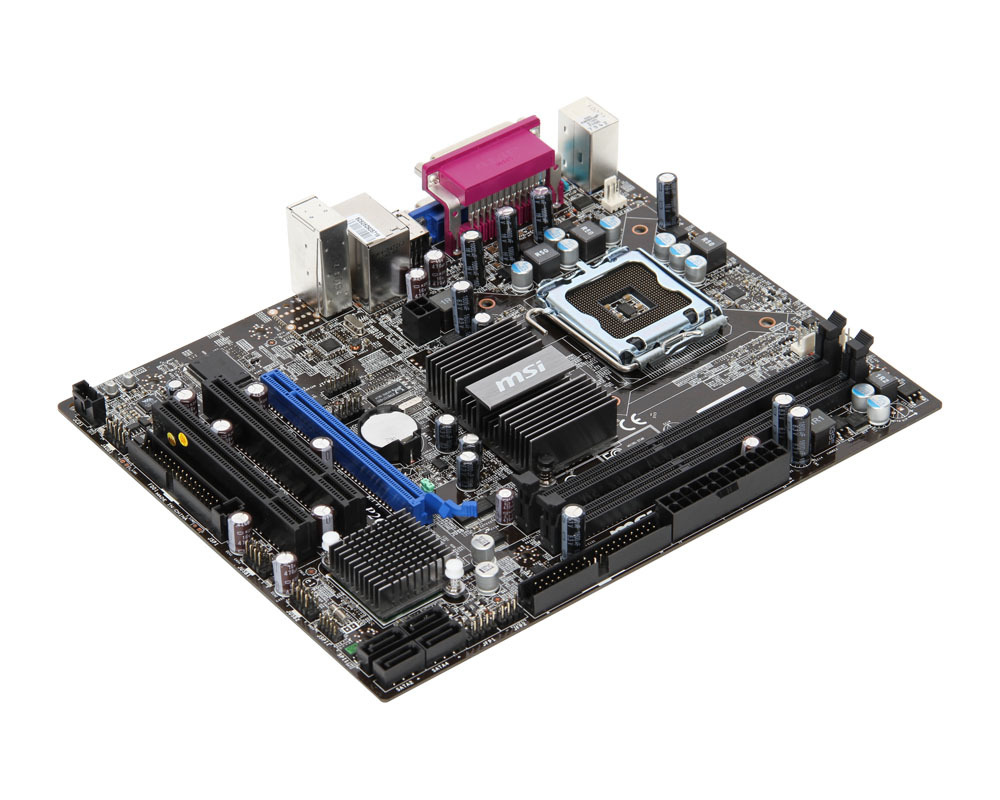

MSI G41M-P26 LGA 775 (Socket T) micro ATX
Model G41M-P26Part no. 7592-120REAN 4719072205027
35 specifications
- Processor socketLGA 775 (Socket T)
- Number of memory slots2
- Parallel processing technology supportNot supported
- USB 2.0 ports quantity4
- LAN controllerAtheros AR8132M
- Motherboard form factormicro ATX
Overview
- Processor socket
- LGA 775 (Socket T)
- Number of memory slots
- 2
- Parallel processing technology support
- Not supported
- USB 2.0 ports quantity
- 4
- LAN controller
- Atheros AR8132M
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- G41M-P26
- Part numbers
- 7592-120R, G41M-P26, 601-7592-450
- EAN / UPC
- 4719072205027, 816909080100
- Also known as
- MSI G41M-P26 LGA 775 (Socket T) micro ATX
Specifications
35 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Core™2 Quad |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |

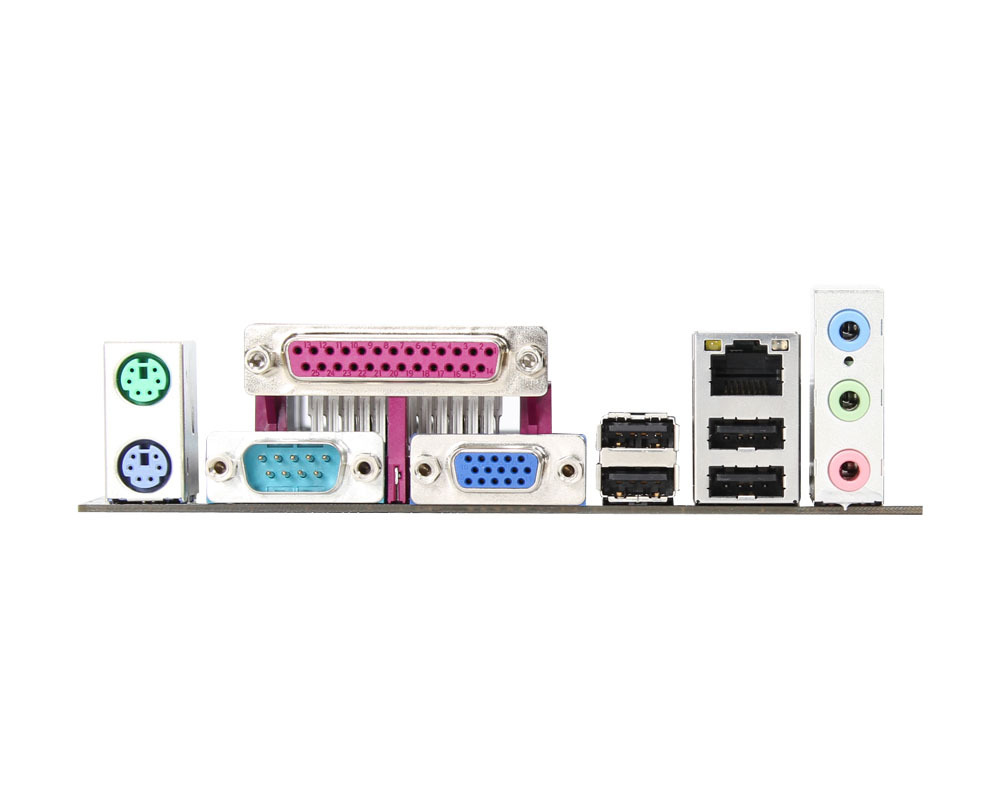

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Atheros AR8132M |
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 245 mm |
What people say
Reviews & ratings
MSI G41M-P26 LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how MSI G41M-P26 LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI G41M-P26 LGA 775 (Socket T) micro ATX
All motherboard comparisons- MSI G41M-P26 LGA 775 (Socket T) micro ATX vsMSI PH67A-C43 LGA 1155 (Socket H2) ATXCompare specs
- MSI G41M-P26 LGA 775 (Socket T) micro ATX vsMSI G41M-P28 motherboard LGA 775 (Socket T) micro ATXCompare specs
- MSI G41M-P26 LGA 775 (Socket T) micro ATX vsMSI H67MS-E43 motherboard LGA 1155 (Socket H2) micro ATXCompare specs
- MSI G41M-P26 LGA 775 (Socket T) micro ATX vsMSI 880GMA-E55 AMDCompare specs

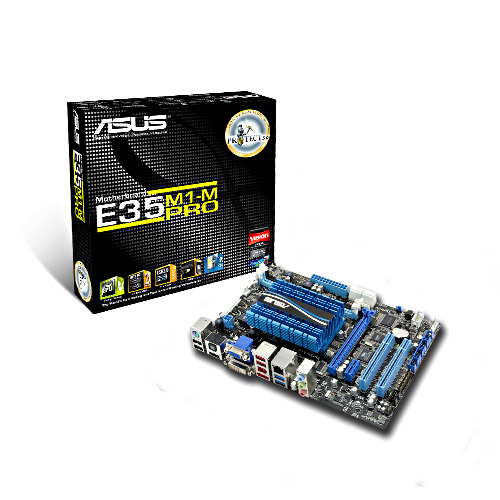

- MSI G41M-P26 LGA 775 (Socket T) micro ATX vsASUS E35M1-M PROCompare specs

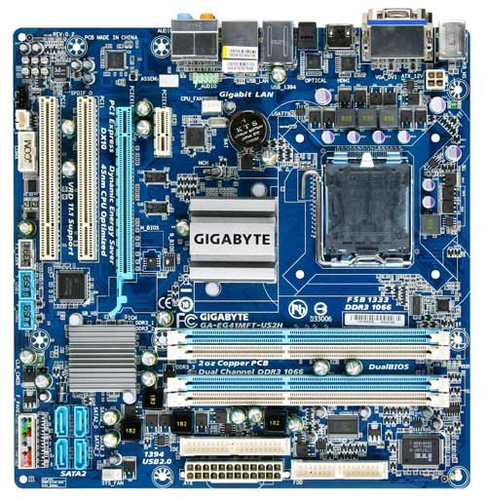

- MSI G41M-P26 LGA 775 (Socket T) micro ATX vsGIGABYTE GA-G41MFT-US2H motherboard LGA 775 (Socket T) micro ATXCompare specs

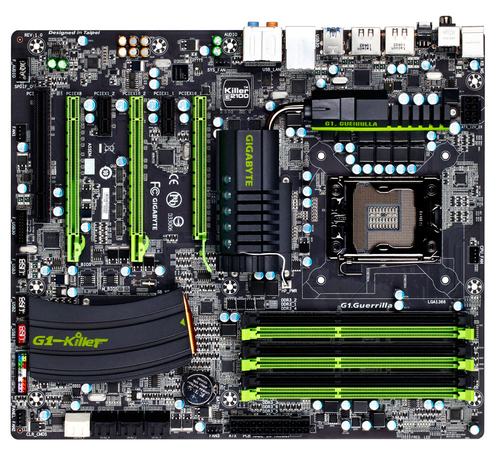

- MSI G41M-P26 LGA 775 (Socket T) micro ATX vsGIGABYTE GA-X58-G1 Socket B (LGA 1366) ATXCompare specs

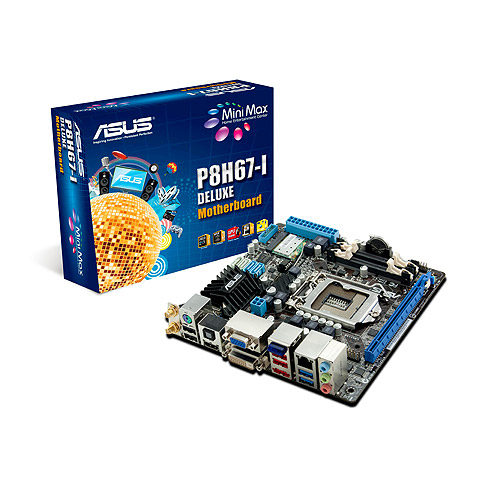

- MSI G41M-P26 LGA 775 (Socket T) micro ATX vsASUS P8H67-I DELUXECompare specs
