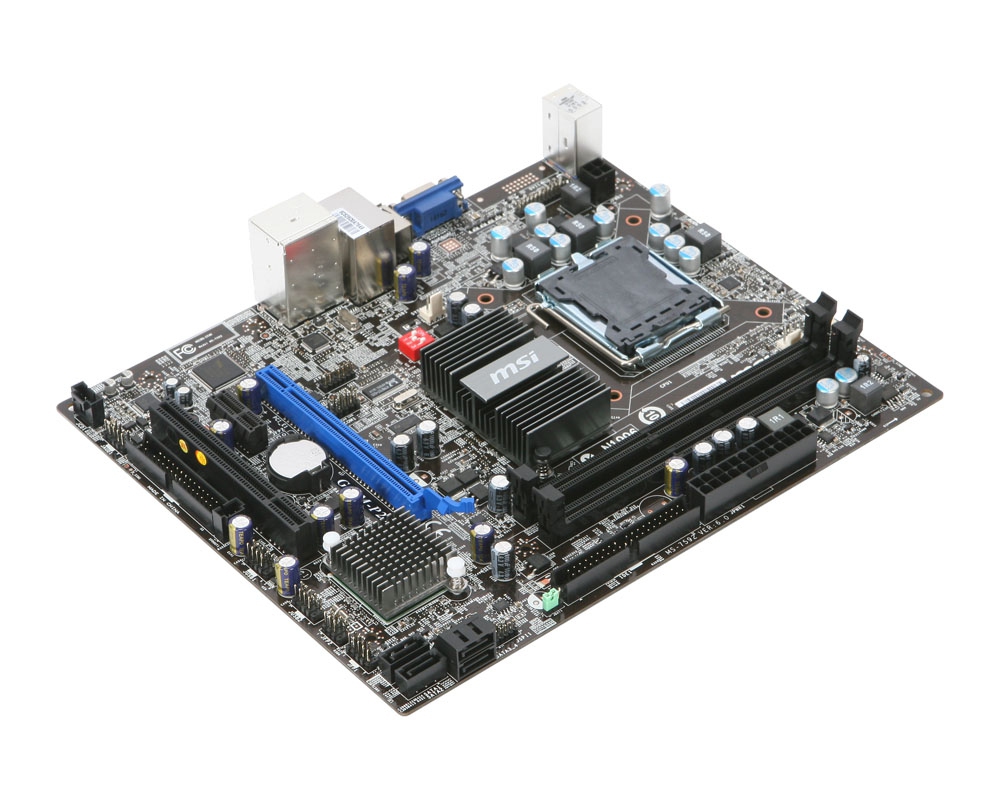

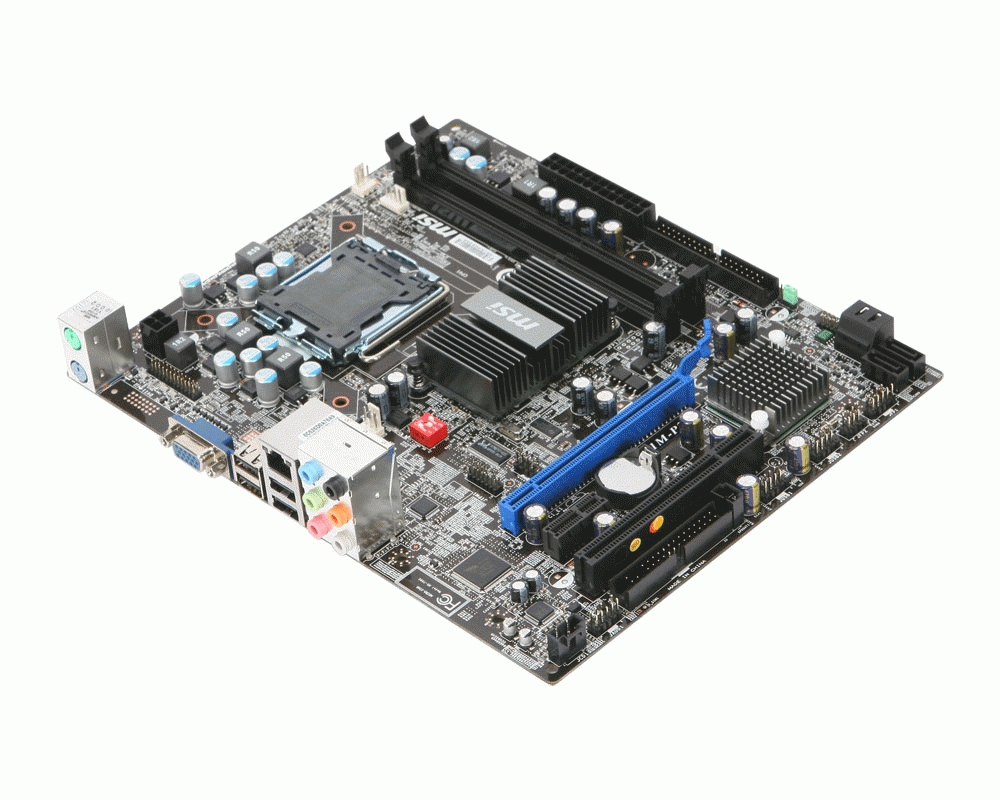

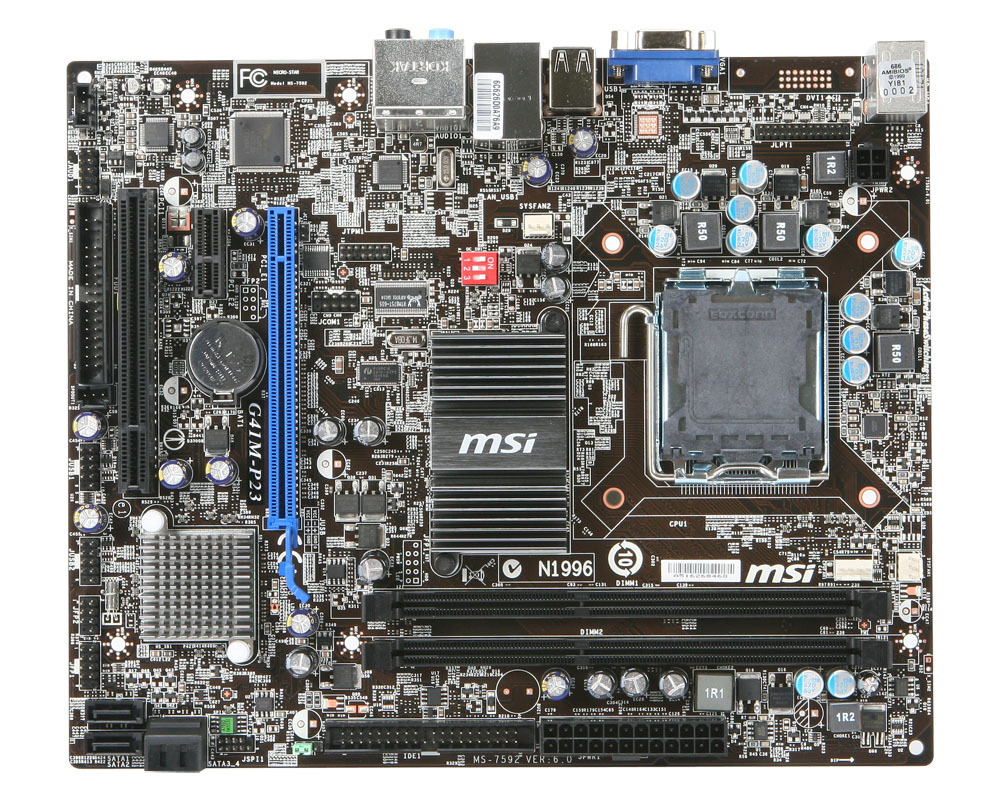

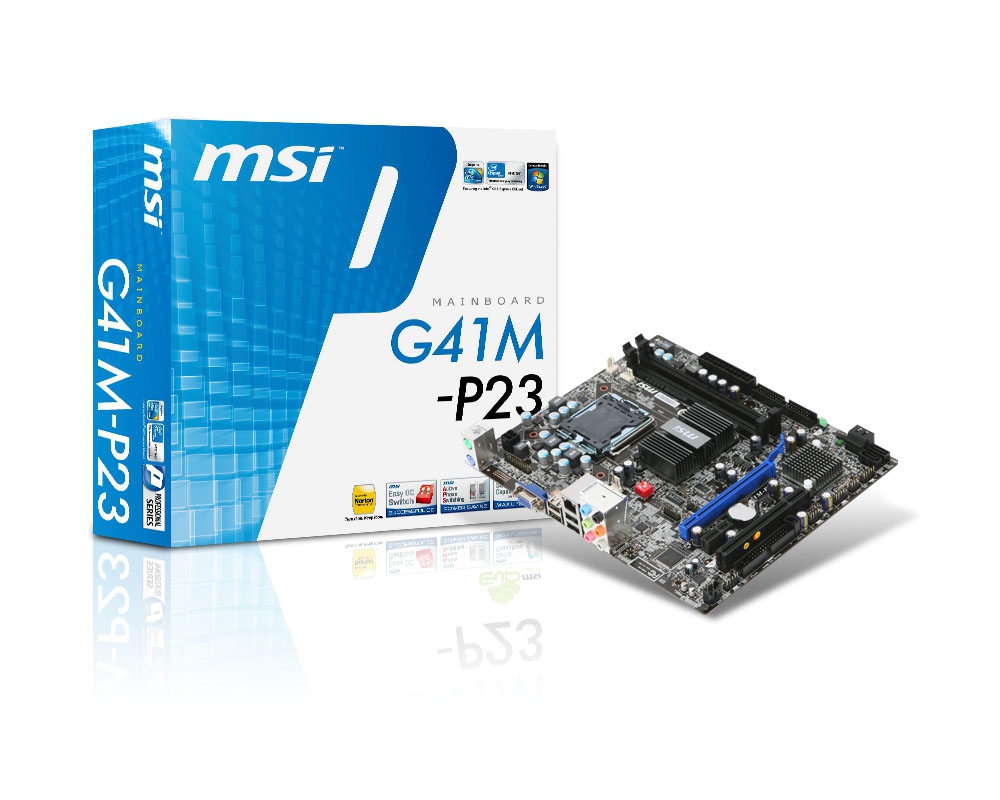

MSI G41M-P23 motherboard LGA 775 (Socket T) micro ATX
Model G41M-P23EAN 816909074420
31 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 connectors4
- LAN controllerRealtek RTL8111DL
- Motherboard form factormicro ATX
- PCI Express x1 slots1
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 connectors
- 4
- LAN controller
- Realtek RTL8111DL
- Motherboard form factor
- micro ATX
- PCI Express x1 slots
- 1
- Brand
- MSI
- Category
- Motherboard
- Model
- G41M-P23
- Part number
- G41M-P23
- EAN / UPC
- 816909074420, 4719072173692
- Also known as
- MSI G41M-P23 motherboard LGA 775 (Socket T) micro ATX
Specifications
31 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 2 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |

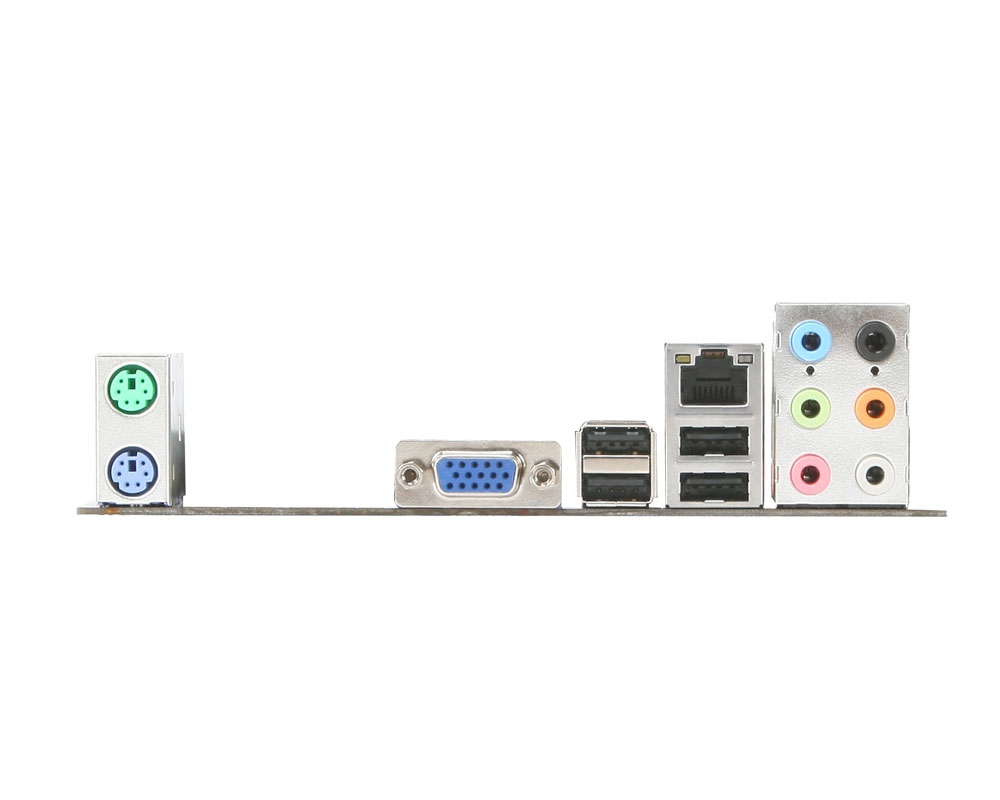

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111DL |
| Networking features | PCI Express LAN 10/100/1000 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC889 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 244 mm |
