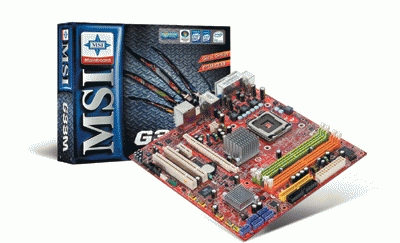

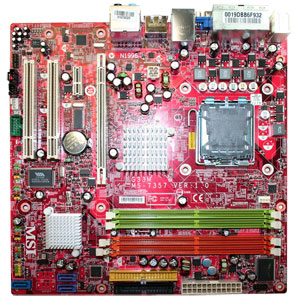

MSI G33M-FI motherboard LGA 775 (Socket T) micro ATX
Model G33M-FIEAN 4719072025779
28 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors6
- LAN controllerMarvell 88E8056
- Motherboard form factormicro ATX
- Width242 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 6
- LAN controller
- Marvell 88E8056
- Motherboard form factor
- micro ATX
- Width
- 242 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- G33M-FI
- Part numbers
- G33M-FI, 7357-01S, 7357-010, 7357-010R
- EAN / UPC
- 4719072025779, 816909040340
- Also known as
- MSI G33M-FI motherboard LGA 775 (Socket T) micro ATX
Specifications
28 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| S/PDIF out connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E8056 |
| Networking features | 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express 16X 1 x PCI Express 1X 2 x PCI 2.3 32-bit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 242 mm |
| Depth | 242 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | SATA II |
| Controller interface type | Ultra DMA 66/100/133 IDE |
| Floppy disk drive connector | Yes |
