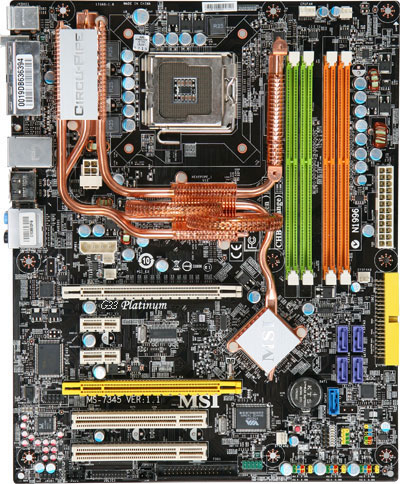

MSI G33 Platinum
Model G33 PlatinumPart no. 7345-060REAN 4719072056087
33 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111B
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- G33 Platinum
- Part number
- 7345-060R
- EAN / UPC
- 4719072056087
- Also known as
- MSI G33 Platinum LGA 775 (Socket T) ATX
Specifications
33 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 5 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 / ALC888T |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 2x PCI Express x16 - 2x PCI Express x1 - 2x 32-bit v2.3 PCI |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra DMA 66/100/133 IDE |
| Controller interface type | SATAII |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
MSI G33 Platinum
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI G33 Platinum
All motherboard comparisons- MSI G33 Platinum vsMSI K9NGM3-FD Socket AM2 micro ATXCompare specs
- MSI G33 Platinum vsMSI P6N SLI V2Compare specs

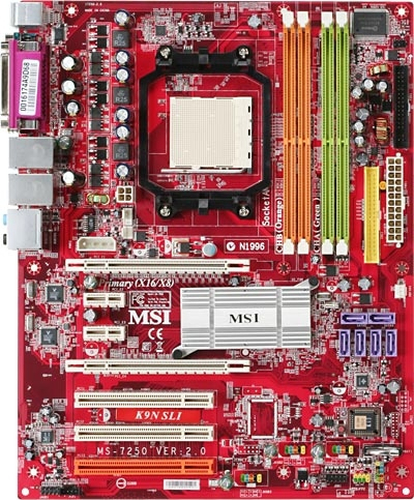

- MSI G33 Platinum vsMSI K9N SLICompare specs

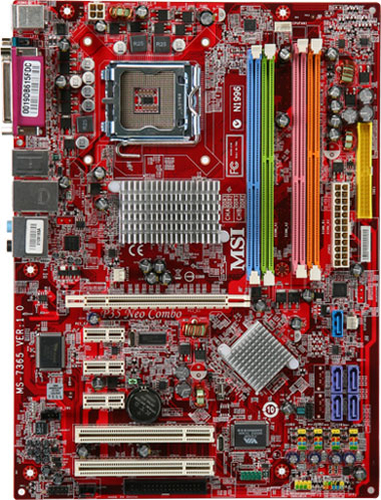

- MSI G33 Platinum vsMSI P35 Neo Combo-FCompare specs
- MSI G33 Platinum vsFujitsu GA-7VAXFS MotherboardCompare specs
- MSI G33 Platinum vsASUS P5E3 Deluxe / DDR3Compare specs

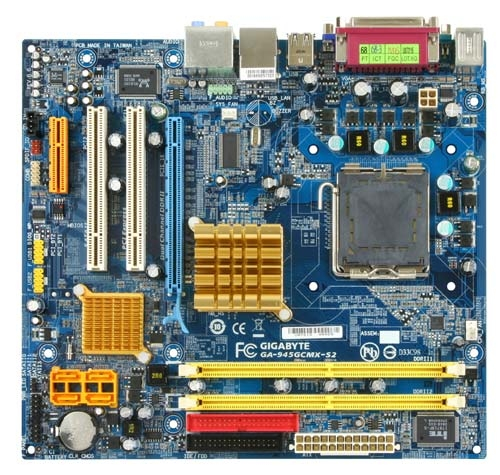

- MSI G33 Platinum vsGIGABYTE GA-945GCMX-S2 (rev. 6.6)Compare specs

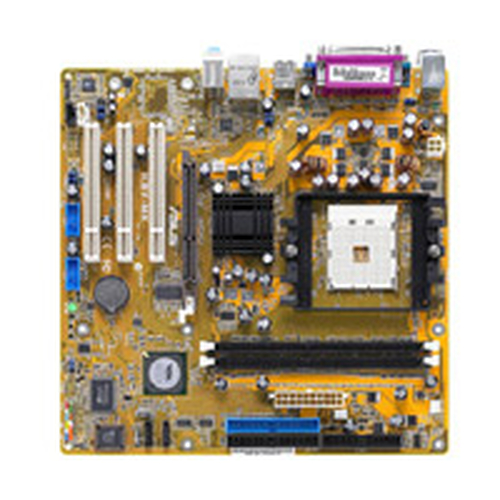

- MSI G33 Platinum vsASUS K8V-MX VIA K8M800 Socket 754 micro ATXCompare specs
