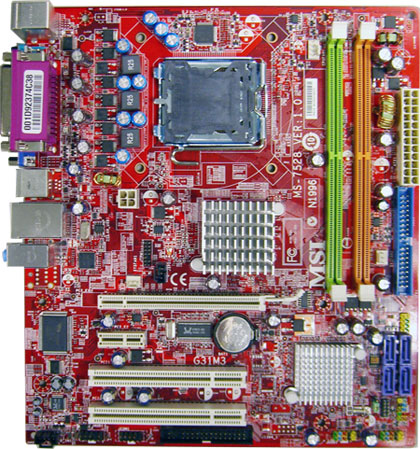

MSI G31M3-F LGA 775 (Socket T) micro ATX
Model G31M3-FPart no. 7528-010REAN 4719072074081
36 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8111C
- Motherboard form factormicro ATX
- PCI Express x1 slots1
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- micro ATX
- PCI Express x1 slots
- 1
- Brand
- MSI
- Category
- Motherboard
- Model
- G31M3-F
- Part numbers
- 7528-010R, 7528-001, 911-7528-011, 911-7528-001
- EAN / UPC
- 4719072074081
- Also known as
- MSI G31M3-F LGA 775 (Socket T) micro ATX
Specifications
36 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Core™2 Quad |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
| Expansion slots | 1 x PCI-E Gen 2.0 |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | IDE |
| Controller interface type | SATA |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
MSI G31M3-F LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how MSI G31M3-F LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI G31M3-F LGA 775 (Socket T) micro ATX
All motherboard comparisons- MSI G31M3-F LGA 775 (Socket T) micro ATX vsMSI P45 ZilentCompare specs
- MSI G31M3-F LGA 775 (Socket T) micro ATX vsMSI P43 Neo3-FRCompare specs
- MSI G31M3-F LGA 775 (Socket T) micro ATX vsMSI MB P45 ZilentCompare specs
- MSI G31M3-F LGA 775 (Socket T) micro ATX vsMSI K9N2GM-FIH motherboard Socket AM2 micro ATXCompare specs
- MSI G31M3-F LGA 775 (Socket T) micro ATX vsGIGABYTE GA-EP45-EXTREME S775 P45 ATXCompare specs
- MSI G31M3-F LGA 775 (Socket T) micro ATX vsGIGABYTE GA-EP45T-DS3 motherboard LGA 775 (Socket T) ATXCompare specs

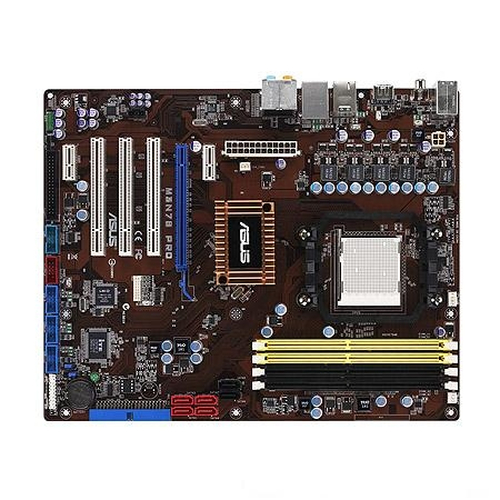

- MSI G31M3-F LGA 775 (Socket T) micro ATX vsASUS M3N78 PROCompare specs

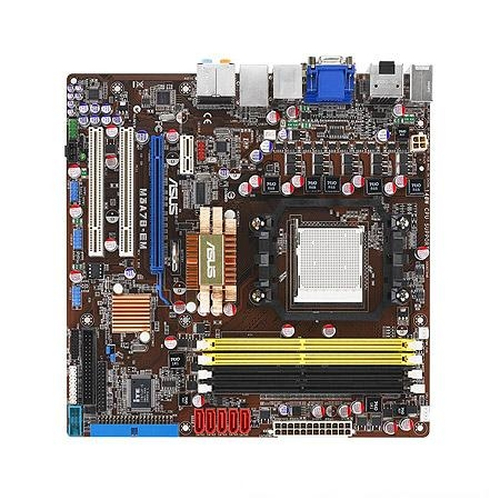

- MSI G31M3-F LGA 775 (Socket T) micro ATX vsASUS M3A78-EM AMDCompare specs
