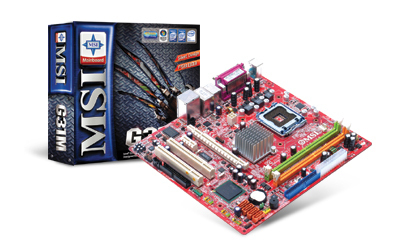

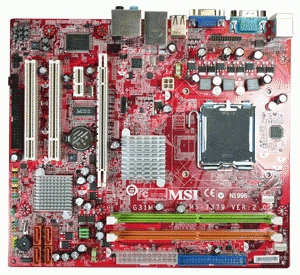

MSI G31M-F motherboard LGA 775 (Socket T) micro ATX
Model G31M-FEAN 816909041040
23 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 connectors6
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8111B
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 connectors
- 6
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- G31M-F
- Part numbers
- G31M-F, 7379-010R, 7379-010
- EAN / UPC
- 816909041040
- Also known as
- MSI G31M-F motherboard LGA 775 (Socket T) micro ATX
Specifications
23 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | 10/100/1000 Mb/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 x PCI Express 16X - 1 x PCI Express 1X - 2 x PCI 2.3 32-bit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 215 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
