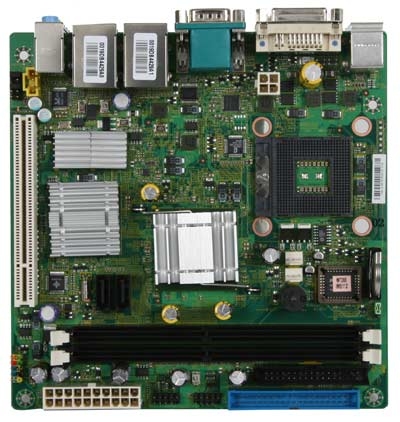

MSI Fuzzy 945GME1
Model Fuzzy 945GME1Part no. 601-7265-080EAN 4719072088002
29 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Maximum graphics card memory128 MB
- USB 2.0 connectors4
- Motherboard form factormini ITX
- Operating temperature (T-T)0 - 60 °C
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Maximum graphics card memory
- 128 MB
- USB 2.0 connectors
- 4
- Motherboard form factor
- mini ITX
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- MSI
- Category
- Motherboard
- Model
- Fuzzy 945GME1
- Part number
- 601-7265-080
- EAN / UPC
- 4719072088002
- Also known as
- MSI Fuzzy 945GME1 Socket M (mPGA478MT) mini ITX
Specifications
29 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket M (mPGA478MT) |
| Compatible processor series | Intel® Celeron® M |
| Processor system buses supported | 667 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 128 MB |
| Graphics card | GMA 950 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 2 |
| ATX Power connector (24-pin) | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 0 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Audio chip | Realtek ALC655 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Certification | CE, FCC Cl.A, C-Tick, VCCI, BSMI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Other features
| Specification | Value |
|---|---|
| RAID controller type | 0, 1 |
