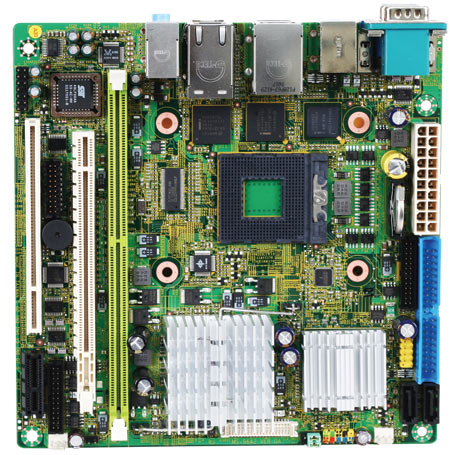

MSI Fuzzy 945GM2
Model Fuzzy 945GM2Part no. 9642-010EAN 4719072039738
20 specifications
- Processor manufacturerIntel
- Maximum internal memory2 GB
- Maximum graphics card memory224 MB
- USB 2.0 connectors2
- LAN controllerIntel® 82573L
- Motherboard form factormini ITX
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 2 GB
- Maximum graphics card memory
- 224 MB
- USB 2.0 connectors
- 2
- LAN controller
- Intel® 82573L
- Motherboard form factor
- mini ITX
- Brand
- MSI
- Category
- Motherboard
- Model
- Fuzzy 945GM2
- Part numbers
- 9642-010, FUZZY 945GM2
- EAN / UPC
- 4719072039738
- Also known as
- MSI Fuzzy 945GM2 Socket M (mPGA478MT) mini ITX
Specifications
20 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket M (mPGA478MT) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 224 MB |
| Graphics card | GMA 950 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82573L |
| Networking features | 10/100/1000Mbps Base-T X3 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 1 x 32-bit PCI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Controller interface type | IDE, SATA |
| I/O ports | RS-232 x1 RS-232x2(0,5,12V) RS-422/485 x2 8@/8 out GPIO Ultra DMA 66/100 x1 |
