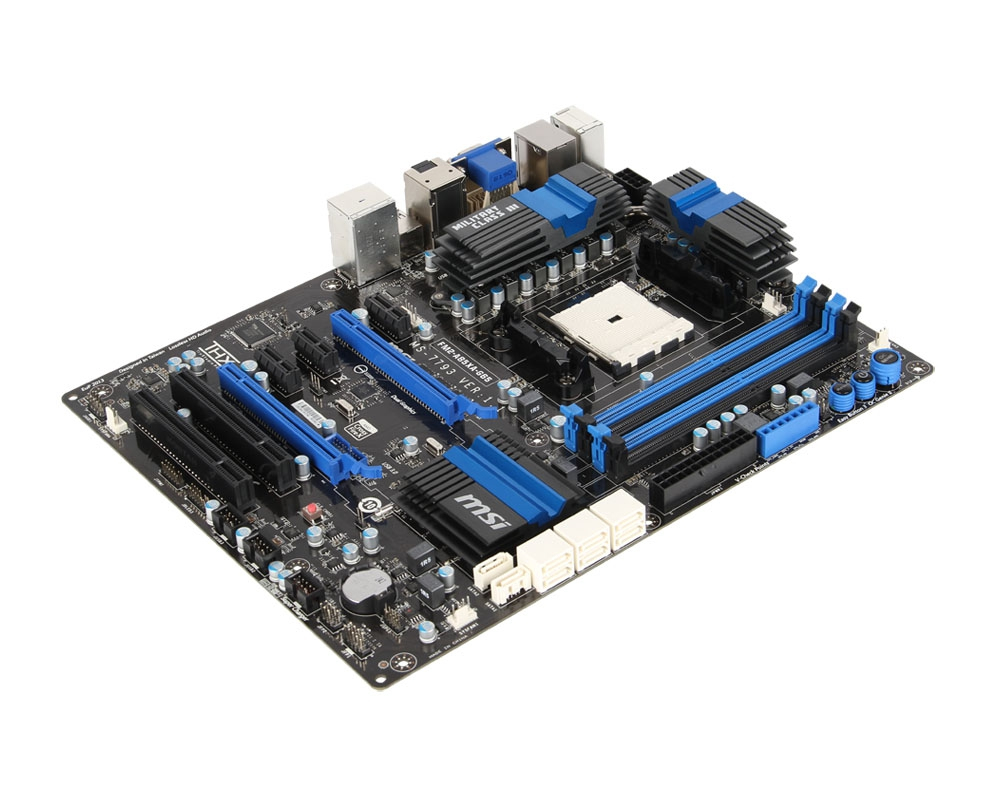

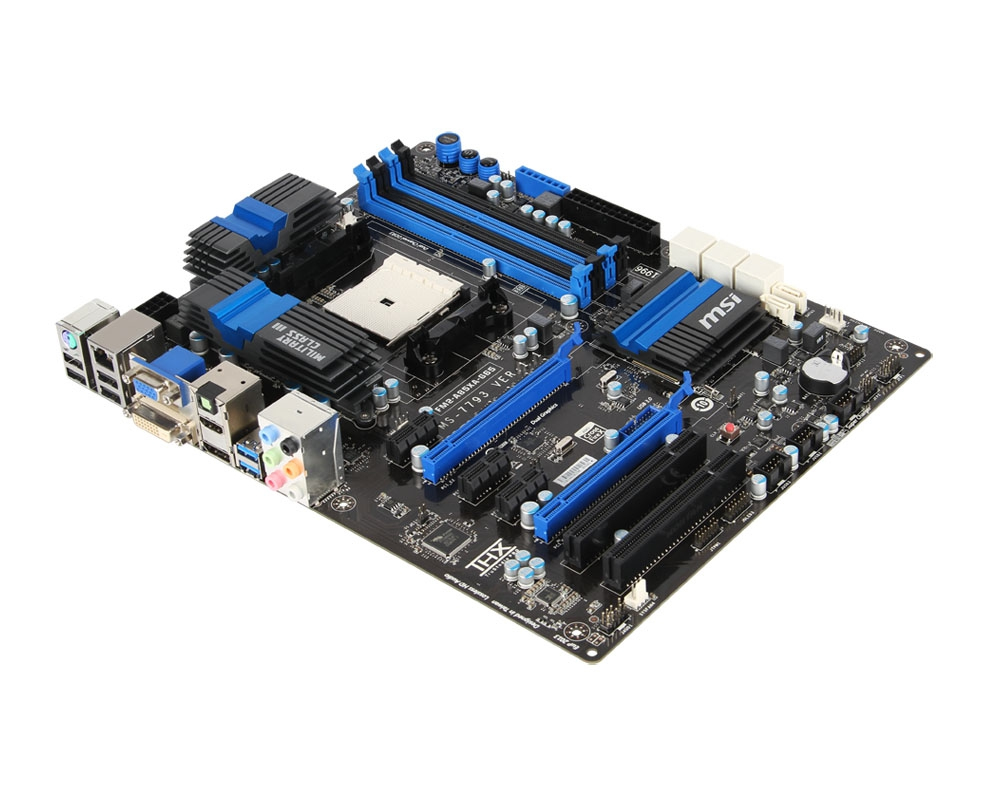

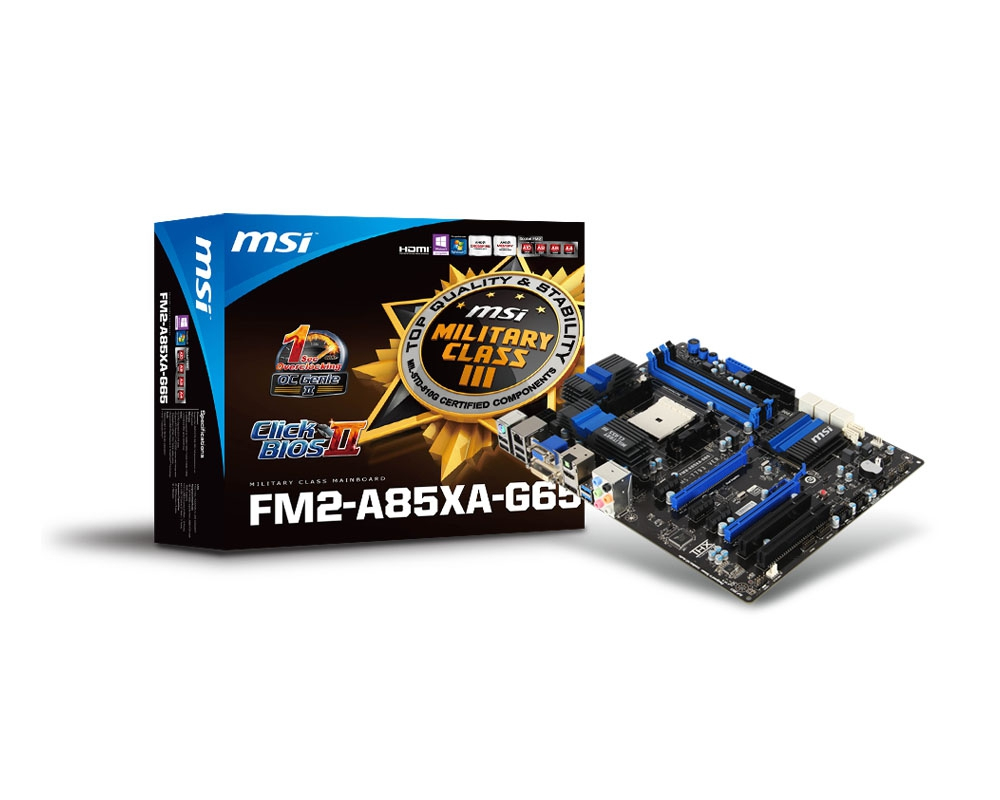

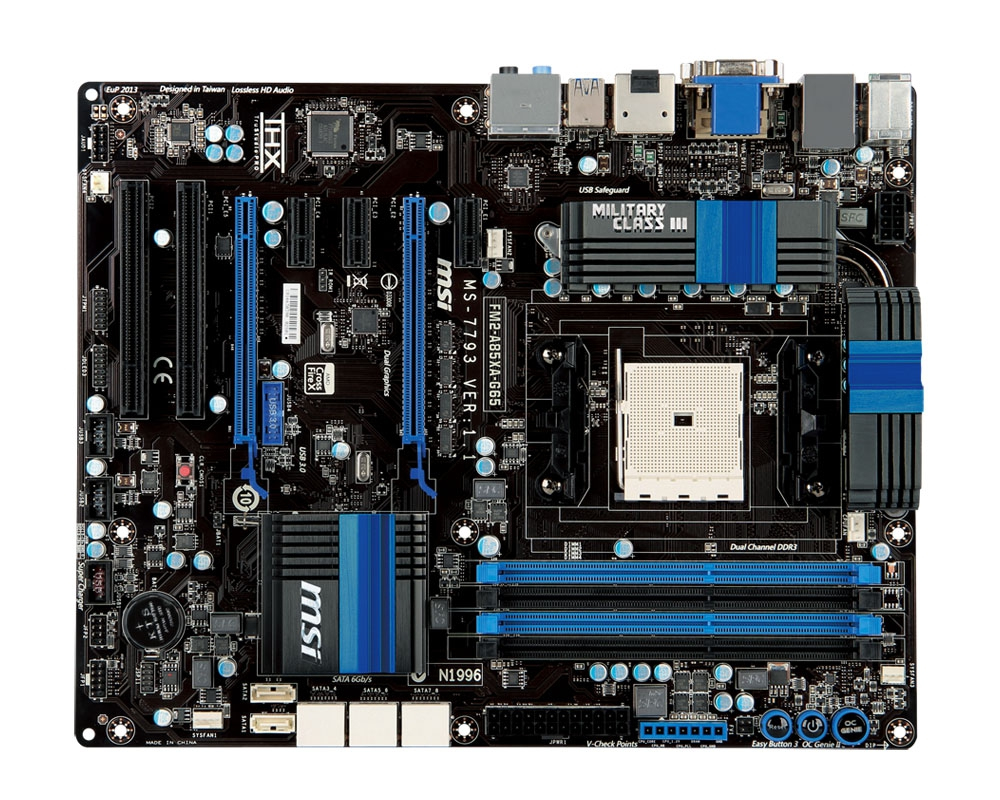

MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX
Model FM2-A85XA-G65EAN 816909100976
70 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Parallel processing technology support2-Way CrossFireX
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Parallel processing technology support
- 2-Way CrossFireX
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- FM2-A85XA-G65
- Part number
- FM2-A85XA-G65
- EAN / UPC
- 816909100976, 4719072274993, 8169091009766
- Also known as
- MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX
Specifications
70 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM2 |
| Compatible processor series | AMD A |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1600,1866,2133 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| On-board graphics card | Yes |
| Graphics card family | AMD |
| DirectX version | 11 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |

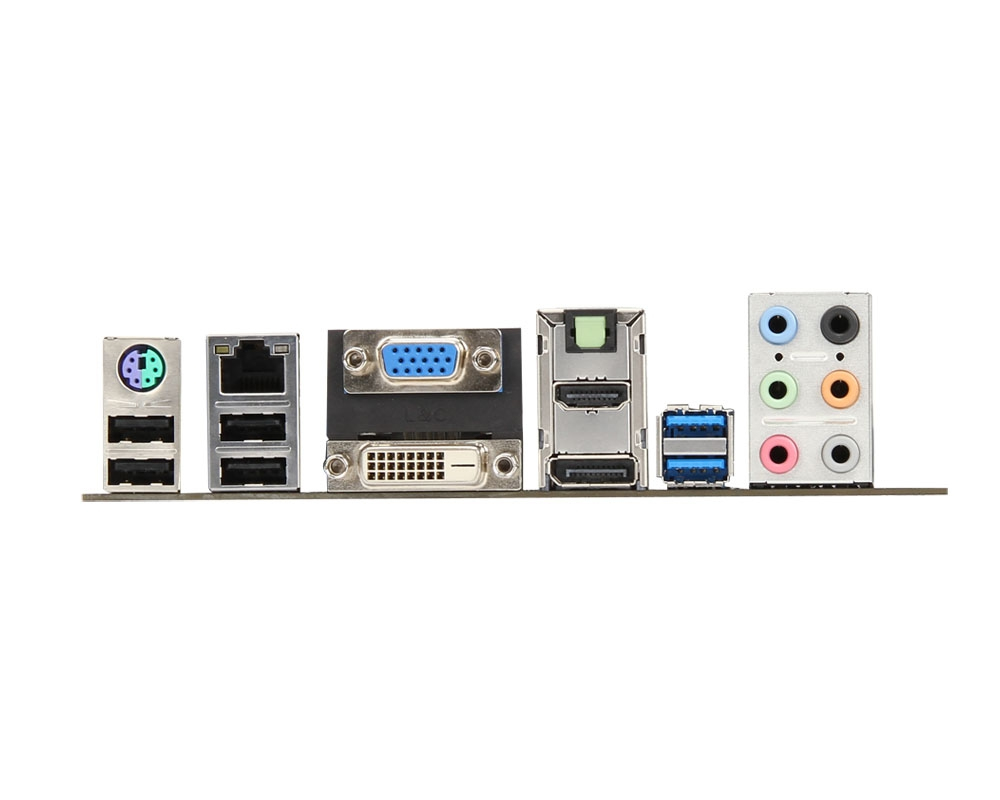

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A85X |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
| Overclocking features | OC Genie II |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 2 |
| PCI Express configurations | 1x8, 1x16 |
| PCI Express slots version | 2.0 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 305 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | AMD A85X |
| Audio output | 6 |
| PCI Express slots quantity | 5 |
| Quick installation guide | Yes |
What people say
Reviews & ratings
MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX
No reviews yet
Be the first to tell others how MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX
All motherboard comparisons- MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX vsMSI FM2-A75MA-E35 motherboard AMD A75 Socket FM2 micro ATXCompare specs
- MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX vsMSI ZH77A-G41 Intel H77 LGA 1155 (Socket H2) ATXCompare specs
- MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX vsMSI FM2-A55M-E33 motherboard AMD A55 Socket FM2 micro ATXCompare specs

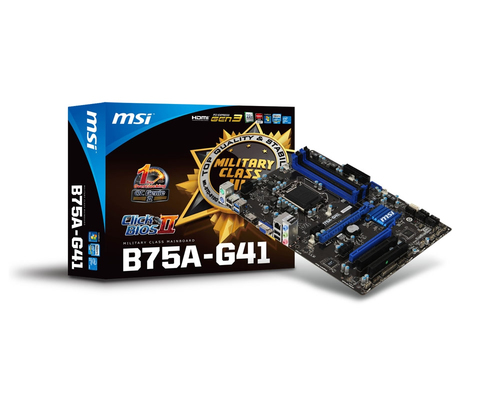

- MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX vsMSI B75A-G41 motherboard Intel B75 LGA 1155 (Socket H2) ATXCompare specs
- MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX vsASUS F2A85-M LECompare specs

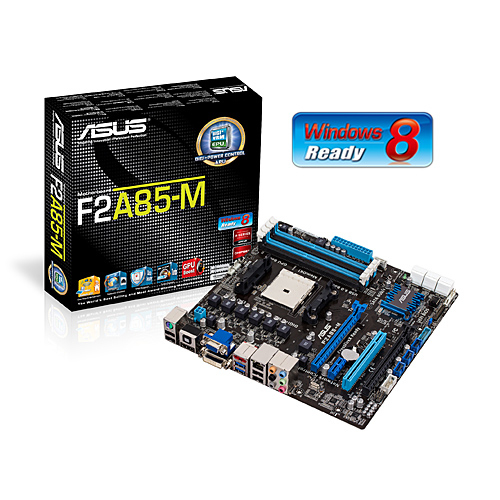

- MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX vsASUS F2A85-M AMD A85X Socket FM2 micro ATXCompare specs

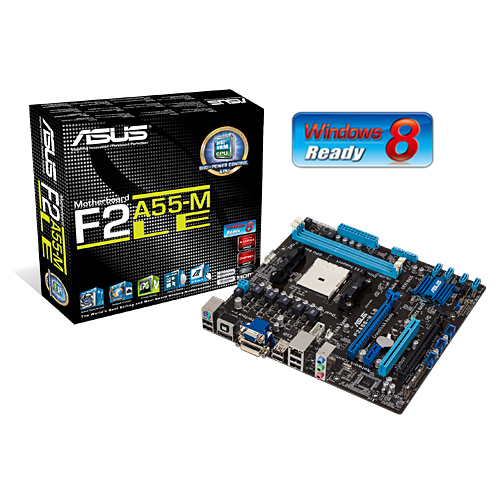

- MSI FM2-A85XA-G65 motherboard AMD A85X Socket FM2 ATX vsASUS F2A55-M LECompare specs
