MSI Eclipse Plus
Model Eclipse PlusPart no. 7566-010REAN 4719072109424
32 specifications
- Memory0 GB
- Processor manufacturerIntel
- Number of memory slots6
- USB 2.0 connectors2
- USB 2.0 ports quantity8
- Motherboard form factorATX
Overview
- Memory
- 0 GB
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 8
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- Eclipse Plus
- Part numbers
- 7566-010R, ECLIPSE PLUS, 7566-01S
- EAN / UPC
- 4719072109424
- Also known as
- MSI Eclipse Plus Socket B (LGA 1366) ATX
Specifications
32 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| Internal memory | 0 GB |
| Maximum internal memory | 24 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 10 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | IEEE1394 / FireWire, Realtek 8111C |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
| Expansion slots | 3 x PCI Express gen2 x16 2 x PCI Express gen1 x1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| I/O ports | 1 x GreenPower Genie 1 x Reset Button 1 x serial port pinheader 1 x D-LED2 1 x GreenPower Button 1 x OC Dial Button 1 x OC Dial Knob 1 x Debug LED 1 x 5 in 1 + Optical SPDIF out Audio Card |
What people say
Reviews & ratings
MSI Eclipse Plus
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI Eclipse Plus

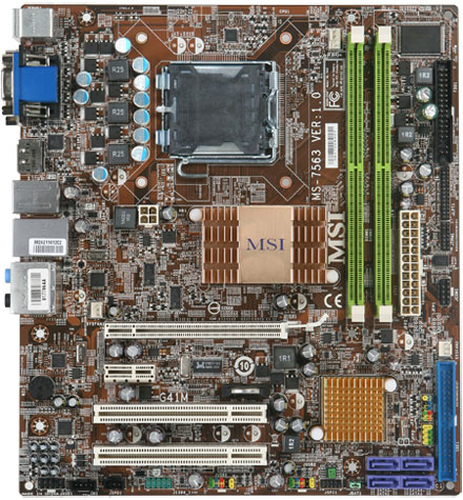

All motherboard comparisons- MSI Eclipse Plus vsMSI G41M4-F motherboard LGA 775 (Socket T) micro ATXCompare specs
