MSI E3M WORKSTATION V5

MSI E3M WORKSTATION V5

Model E3M WORKSTATION V5EAN 4719072462352

46 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
E3M WORKSTATION V5
Part number
E3M WORKSTATION V5
EAN / UPC
4719072462352
Also known as
MSI E3M WORKSTATION V5 motherboard Intel® C232 LGA 1151 (Socket H4) micro ATX

Specifications

46 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Intel Xeon seriesE3-1200
Processor number of cores supported2, 4

Memory

Supported memory typesDDR4-SDRAM
ECC сompatibilityECC
Supported memory clock speeds2133 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
Serial port headers1
TPM connectorYes

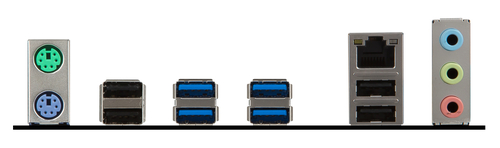

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity0
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiNo

Features

Component forWorkstation
Motherboard form factormicro ATX
Motherboard chipsetIntel® C232
Audio output channels7.1 channels

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x8 (Gen 2.x) slots0
PCI Express x8 (Gen 3.x) slots0
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI

Weight & dimensions

Width235 mm
Depth180 mm

Other features

Number of DIMM slots2
Number of processors supported1
