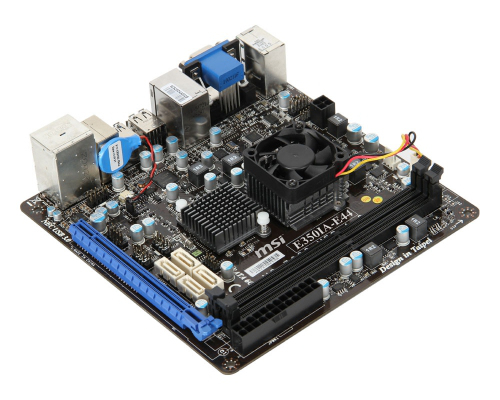

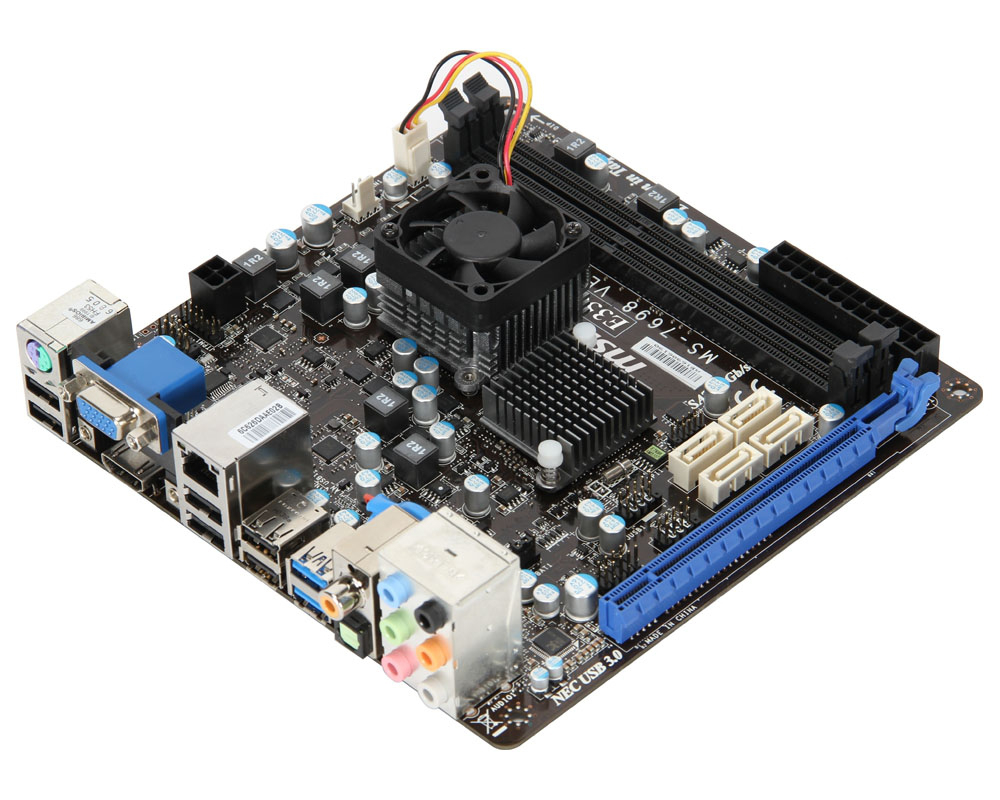

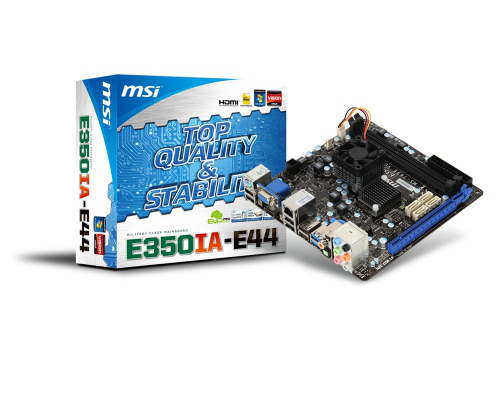

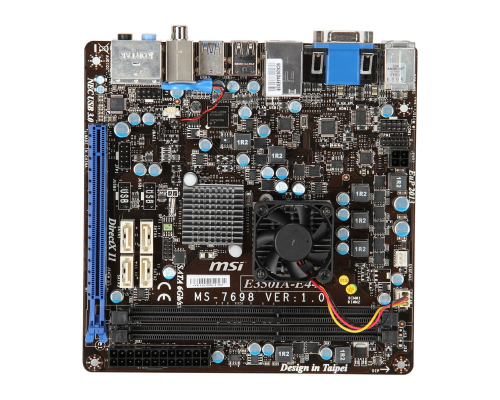

MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX
Model E350IA-E44Part no. 7698-020REAN 4719072217204
73 specifications
- ProcessorE-350
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory512 MB
- USB 2.0 connectors2
Overview
- Processor
- E-350
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 2
- Brand
- MSI
- Category
- Motherboard
- Model
- E350IA-E44
- Part number
- 7698-020R
- EAN / UPC
- 4719072217204
- Also known as
- MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX
Specifications
73 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | NA (integrated CPU) |
| Compatible processor series | Not supported |
| Processor model | E-350 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Single-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card | Radeon HD 6310 |
| Maximum resolution | 1920 x 1080 pixels |
| HDCP | Yes |
| DirectX version | 11 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| TPM connector | Yes |

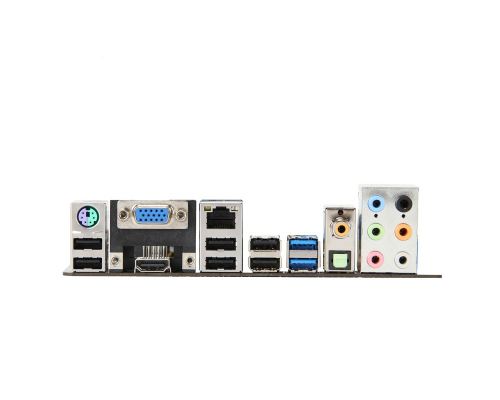

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.3 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Wi-Fi | No |
| Bluetooth | No |
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Component for | Nettop |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD Hudson M1 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature |
| Cooling type | Active |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express configurations | 1x4 |
| PCI Express slots version | 2.0 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Dual Link DVI | No |
| Controller interface type | AMD Hudson M1 |
| Quick installation guide | Yes |
| Serial port via internal header | Yes |
What people say
Reviews & ratings
MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX
No reviews yet
Be the first to tell others how MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX
All motherboard comparisons- MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX vsMSI H61M-G35 (G3)Compare specs

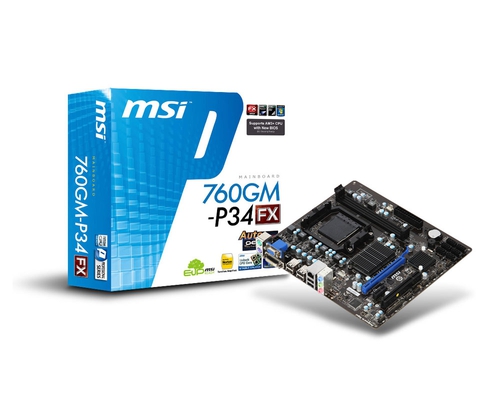

- MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX vsMSI 760GM-P34 (FX)Compare specs
- MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX vsMSI Big Bang-XPower IICompare specs
- MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX vsMSI 970A-G46 AMD 970 Socket AM3+ ATXCompare specs
- MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX vsASUS Z9PE-D8 WSCompare specs
- MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX vsASUS P8Z77-V LXCompare specs

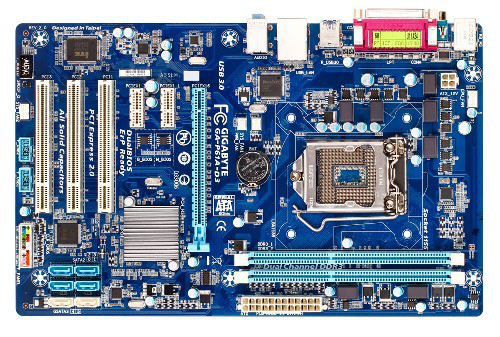

- MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX vsGIGABYTE GA-P61A-D3 motherboard Intel® H61 LGA 1155 (Socket H2) ATXCompare specs

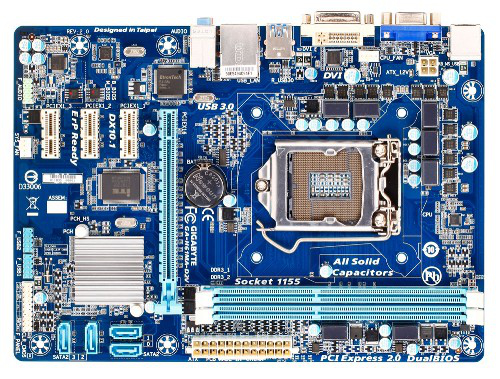

- MSI E350IA-E44 AMD Hudson M1 NA (integrated CPU) mini ITX vsGIGABYTE GA-H61MA-D2V motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
