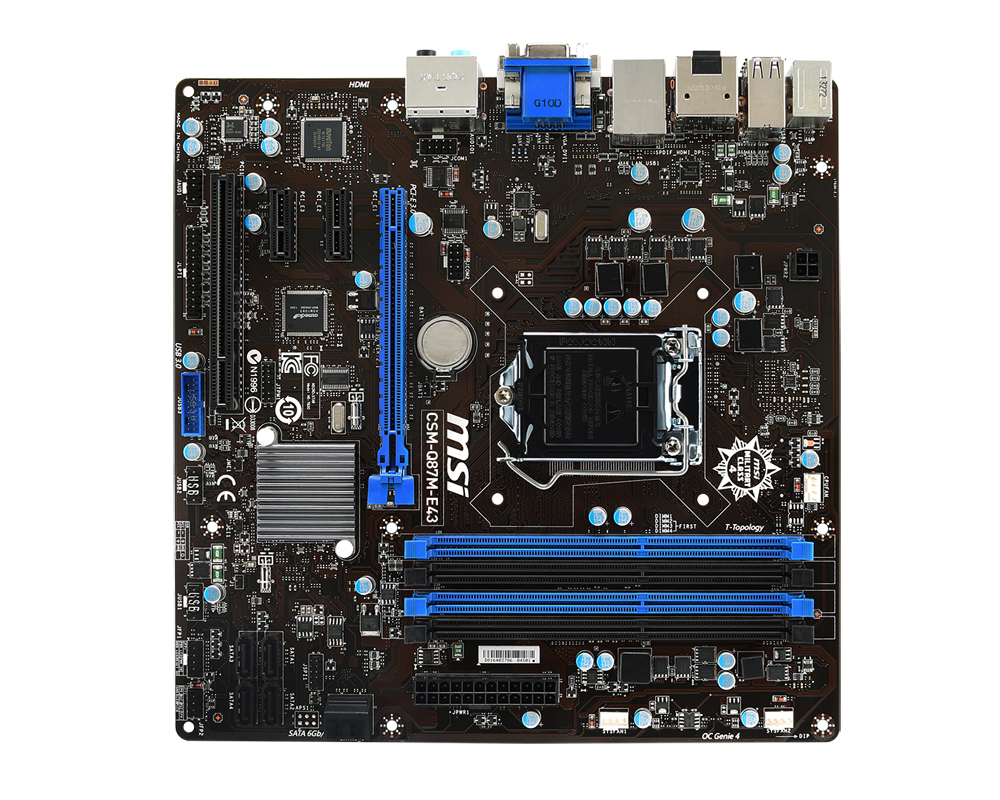

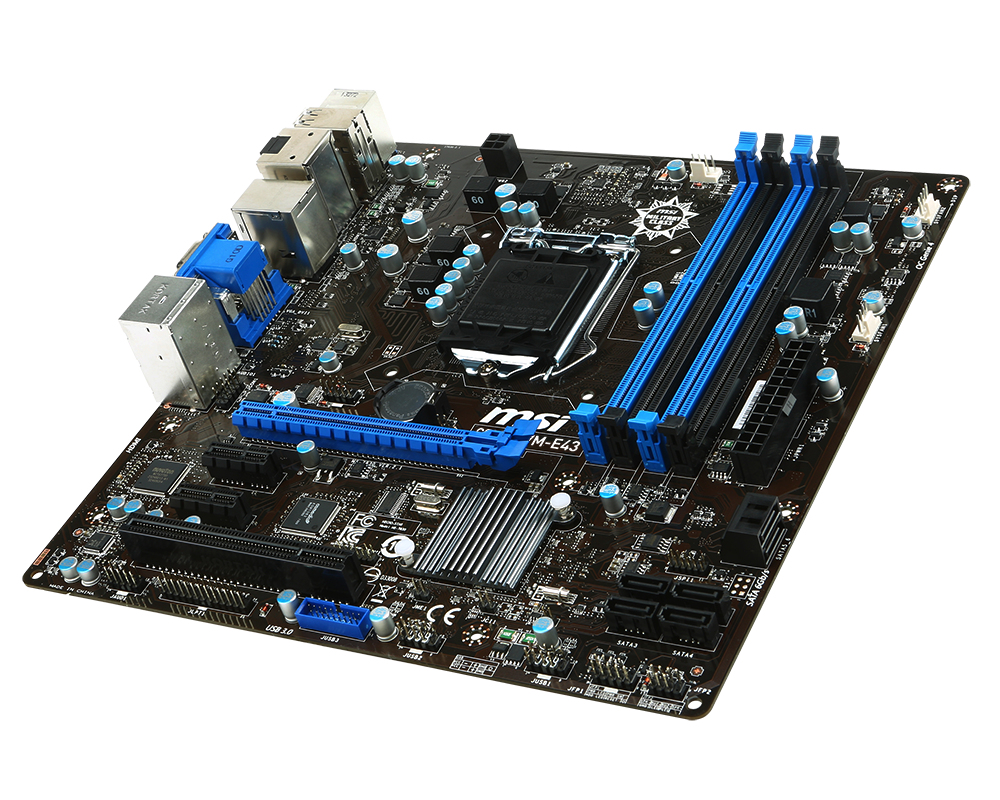

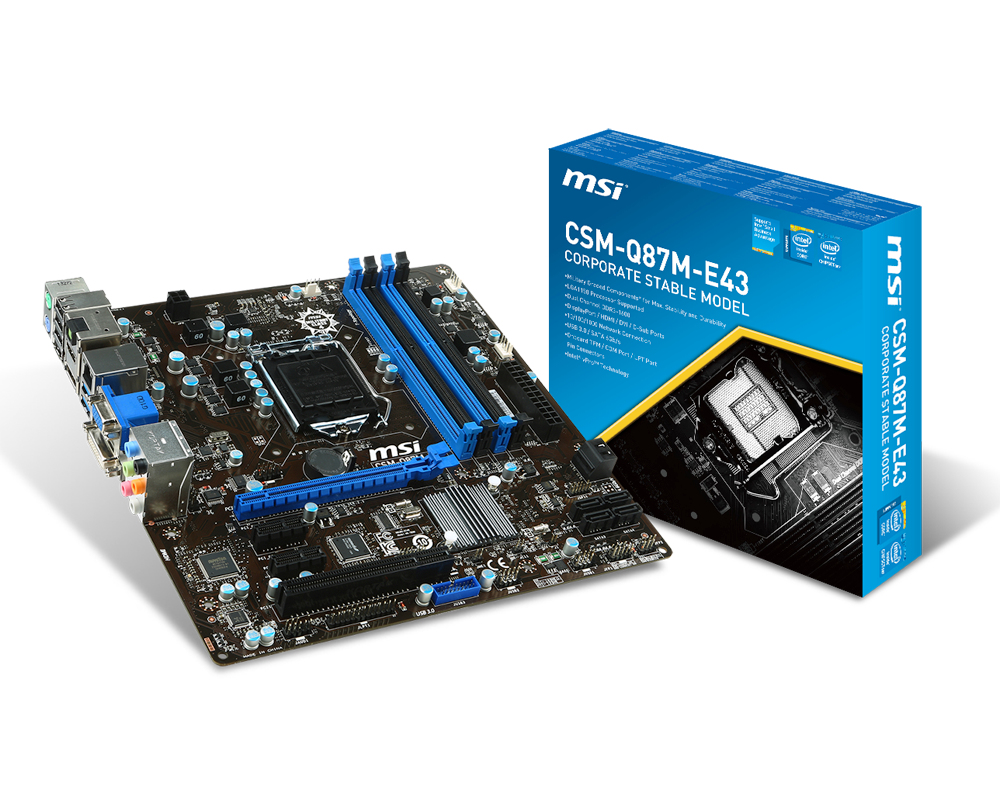

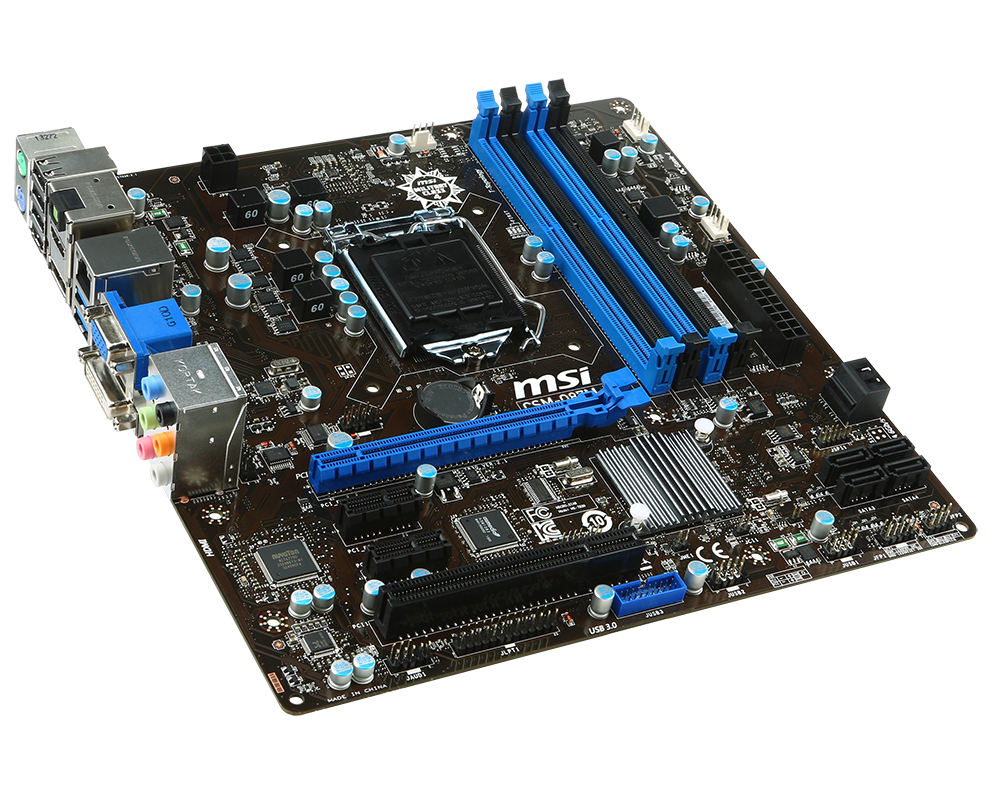

MSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATX
Model CSM-Q87M-E43Part no. 7830-002REAN 4053162686649
50 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory1760 MB
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 1760 MB
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- CSM-Q87M-E43
- Part number
- 7830-002R
- EAN / UPC
- 4053162686649, 012300311700, 824142016664, 4719072315993 +1 more
- Also known as
- MSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATX
Specifications
50 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1760 MB |
| DirectX version | 11 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |
| TPM connector | Yes |

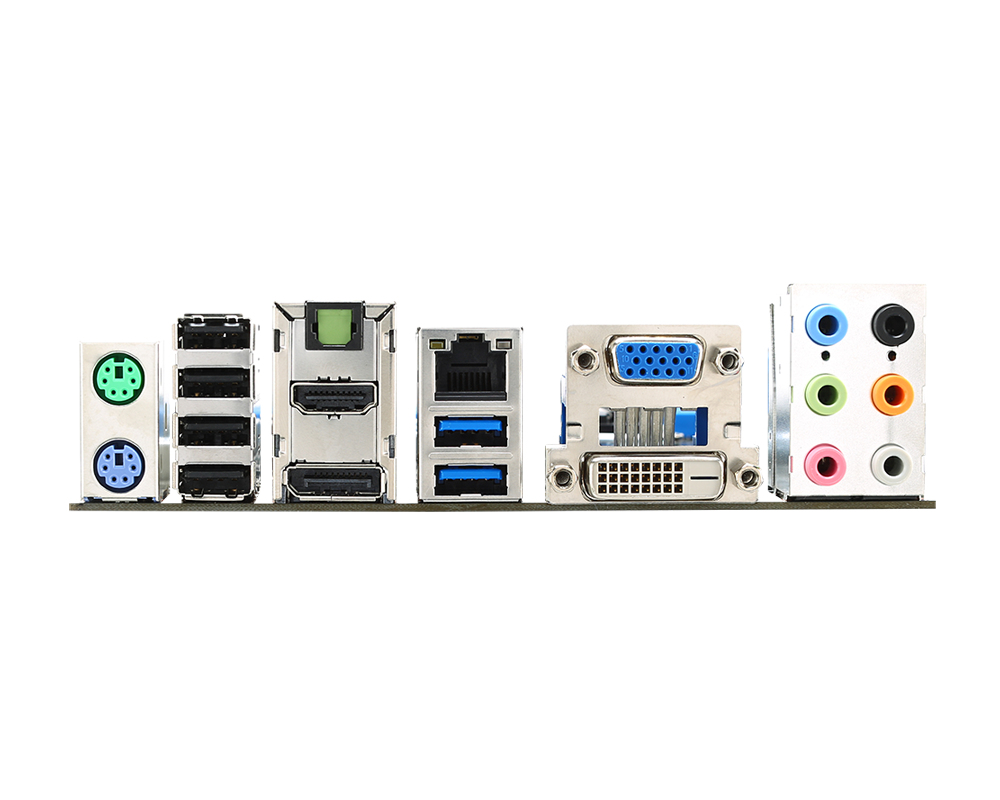

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 6 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I217-LM |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Q87 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
What people say
Reviews & ratings
MSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATX
No reviews yet
Be the first to tell others how MSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATX
All motherboard comparisons- MSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATX vsMSI CSM-B85M-P32 Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs

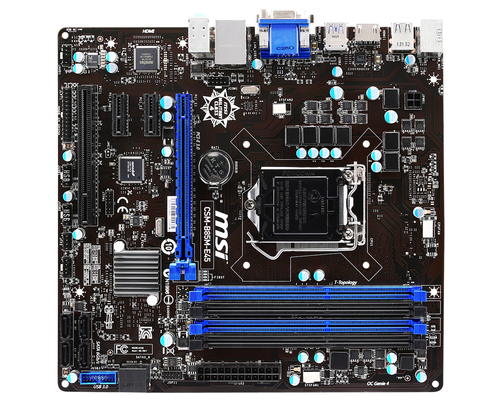

- MSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATX vsMSI CSM-B85M-E45 Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs
- MSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATX vsMSI A88XM-E35 AMD A88X Socket FM2+ micro ATXCompare specs
- MSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATX vsMSI H87M-E35 Intel® H87 LGA 1150 (Socket H3) micro ATXCompare specs

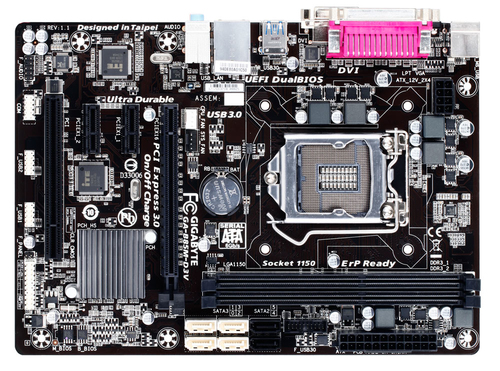

- MSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-B85M-D3V motherboard Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs

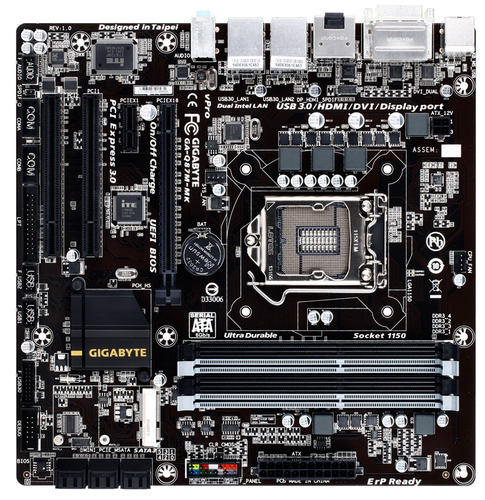

- MSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-Q87M-MK motherboard Intel® Q87 LGA 1150 (Socket H3) micro ATXCompare specs
